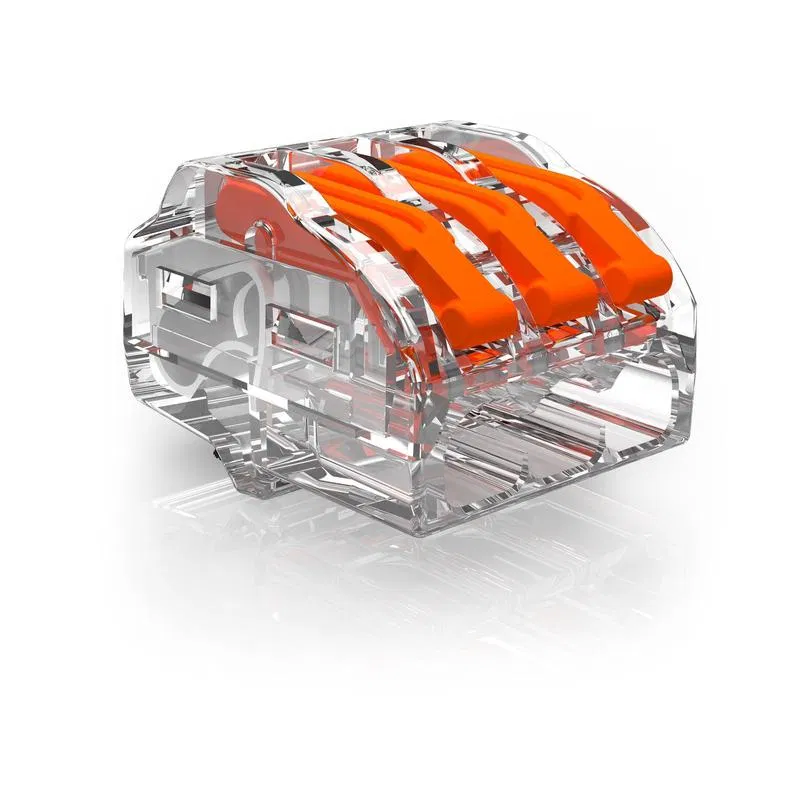

Universal spring terminal 3x2.5mm² 61 325 FL with transparent clamp (222-413) OBO 2054454_V1 OBO Bettermann

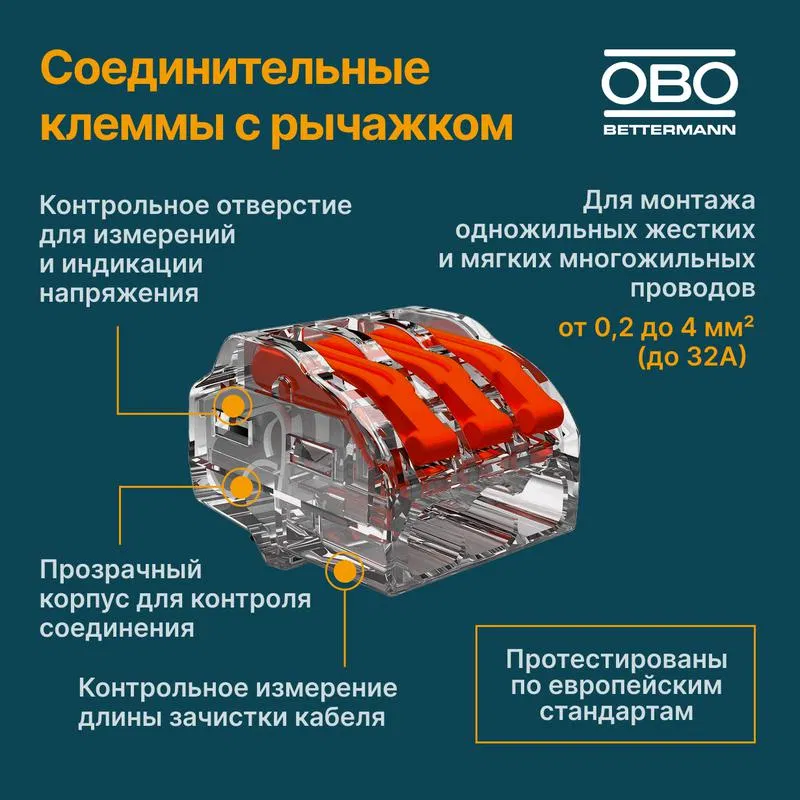

Universal quick-clamp terminal for connecting electrical wires, tested according to EN 60998. Wires can be flexible, stranded, or solid. A lever is required when routing solid wires. The wire is easily installed directly into the terminal. To remove the wire from the terminal, the latch must be opened. After that, the wire is easily extracted. Rated cross-section: Single-/stranded wires 3 x 0.2 - 2.5 mm². Rated voltage: 450 V Rated current: 24 A Wire stripping length: 9 mm (+1 mm) Test hole: phase indicator and tester (max d 2 mm) at the top of the terminal Maximum allowable ambient temperature according to EN 60998: 85°C.
