TDM ELECTRIC

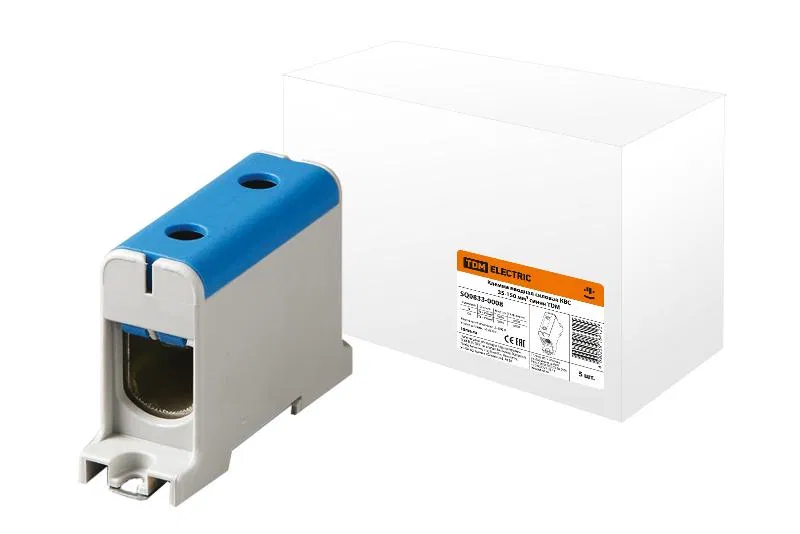

Power terminal block KVS 35-150 mm2 blue TDM SQ0833-0008
SKU: SQ0833-0008
ETIM: EC000897
645 ₽
Get back 6 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Length
49 мм
Length
49 мм
Cross blade design
No (without)
Longitudinal blade design
Slider
Flammability class of insulation material in accordance with UL57
V0
Housing insulation material
Thermoplastic
Availability of PEN terminal
Yes
Coding direction
Horizontal and vertical
Supply voltage for fault indication from
12 В
Rated voltage
220 - 654 = -434 В
Rated current In
320 А
Operating temperature from
-70 град.C
Module size
5.2 мм
Connection position
Top
Current type for fault indication
AC/DC
Core cross-section
150 кв.мм
Stranded wire cross-section with ferrule
35 - 150 мм²
Stranded flexible conductor cross-section from
35 - 150 кв.мм
Solid conductor cross-section from
35 - 150 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
35 - 150 кв.мм
With built-in test socket
No
Mounting method
DIN rail (Ω-profile) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Blue
Colour
Blue
