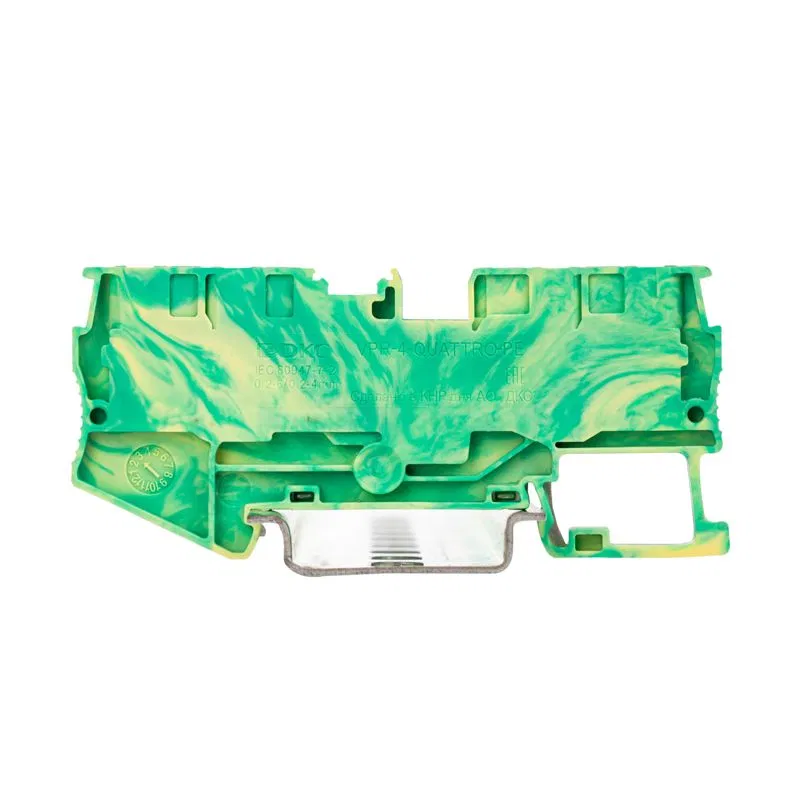

Grounding terminal, push-in clamp, 4 connection points, 4 mm² VPR-4-QUATTRO-PE DKC
SKU: VPR-4-QUATTRO-PE
ETIM: EC000901
431 ₽
Get back 4 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

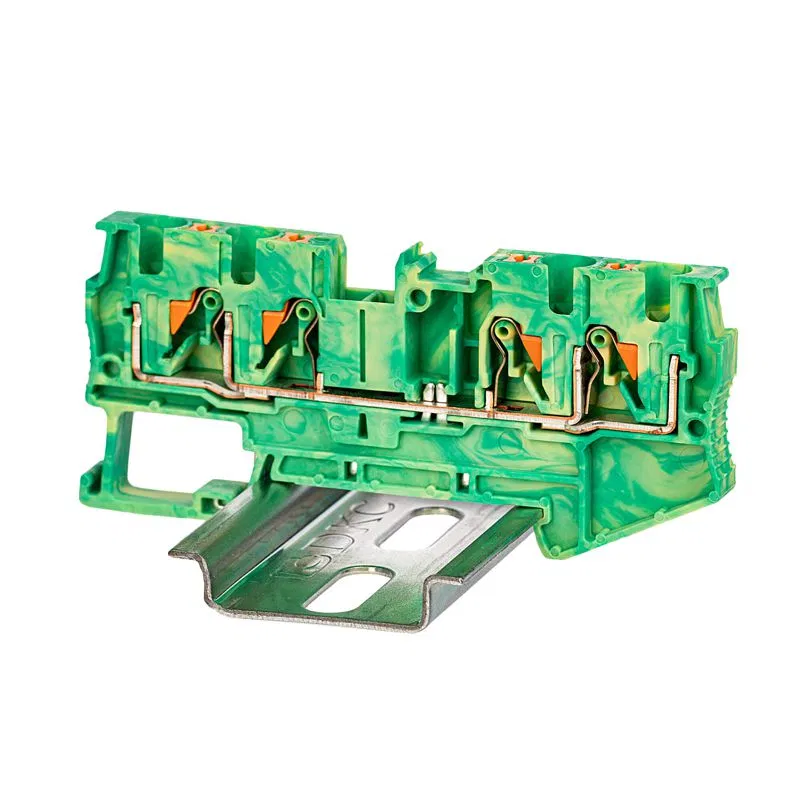

Grounding terminal with Push-in clamp is designed for connecting four conductors, and a push-button provides protection against installation errors and accidental contact. The terminal has electrical contact with the DIN rail. Mounting on OMEGA DIN rail. Operating temperature from -40 to +105°C. Housing is made of PA 6.6 with flammability class V0 UL-94.
Yellow-green color, 4 connection points, 4 mm2. 2 jumper channels. Dimensions (H×W×D) 36.9×79×6.2 mm.
Minimum possible mounting height
36.9 мм
Length
79 мм
Length
79 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
4
Number of levels
1
Housing insulation material
Thermoplastic
Availability of PEN terminal
Yes
Closing plate can be fitted if required
Yes
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Atop
Stranded wire cross-section with ferrule
0.25...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
.2 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
.2 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2 ...4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Green/yellow
Color
Yellow-green
Width/connection pitch
6.2 мм
