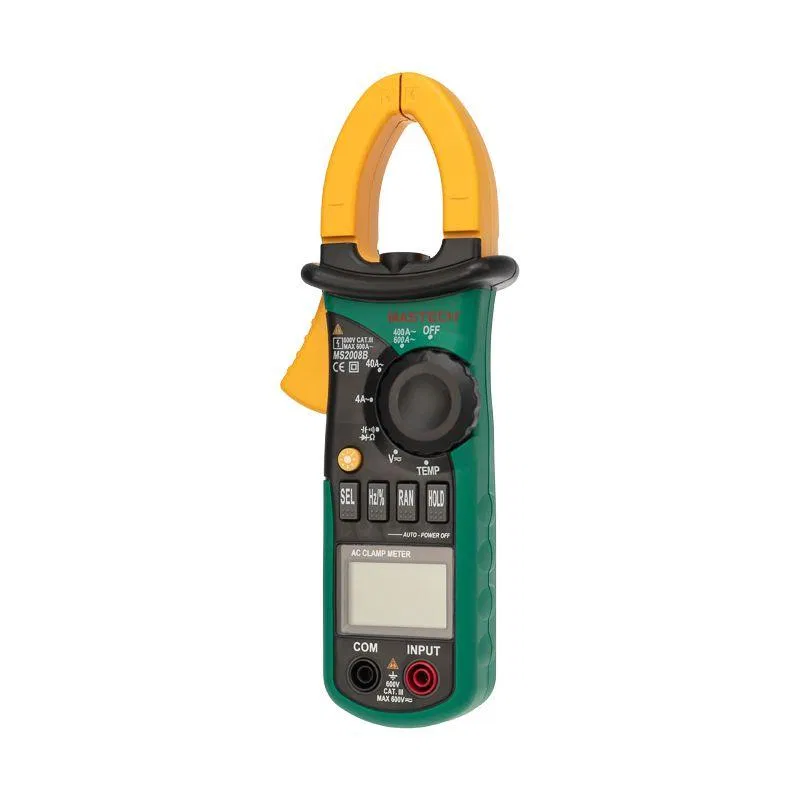

Current clamps MS2008B Mastech 13-1313

Clamp meter (or Dice Clamp) is an instrument that allows measuring AC current without breaking the circuit being measured. The device obtains measurement results based on the law of electromagnetic induction. If a current flows through a conductor, a magnetic field is created around it, and if this conductor is surrounded by another conductor, an EMF (Electromotive Force) arises in it. The resulting EMF under certain conditions is proportional to the measured current. Thus, by measuring the voltage on this conductor, it becomes possible to determine the magnitude of the measured current. The MS2008B clamp meter is a multifunctional device that can measure many parameters. In addition to the main function of measuring AC current, the MS2008B can measure DC and AC voltage, resistance, signal frequency, capacitor capacitance and even temperature. Additionally, this device has a continuity test function and diode testing. The MS2008B clamp meter features a DATA HOLD function for cases where measurements are taken in hard-to-reach places where it is not always possible to look at the screen. The device display is equipped with a backlight, which allows measurements even in low-light conditions. The device is made of high-quality materials and has an ergonomic design. Engineers have made the device as simple as possible, making it easy to operate even with one hand. The device has a reinforced switch to prevent accidental activation. Calibration and testing of the devices are performed under the supervision of SDS. Specifications: Scale resolution of the clamp meter: 4000 counts Max. conductor diameter: 26 mm DC voltage: 0.4 V/4 V/40 V/400 V (±0.8%), 600 V ( ±1.0%) AC voltage: 0.4 V/4 V/40 V/400 V (±0.1%), 600 V ( ±1.2%) AC current: 4 mA/40 mA ( ±3.0%), 400 A ( ±2.5%), 600 A ( ±1.5%) Resistance: 400 Ω (±1.2%), 4 kΩ/40 kΩ/400 kΩ/4 MΩ ( ±1.2%), 40 MΩ ( ±2.0%) Capacitance: 50 nF/500 nF/5 μF/50 μF/100 μF (±3.0%) Frequency: 50 Hz/500 Hz/5 kHz/50 kHz/100 kHz ( ±0.1%) Relative duty cycle: 0.1-99.9 % ( ±3.0%) Temperature: –20...+400 °C: (±2.0% ±2°C), 401-1000 °C ( ±2.0%) Diode test, continuity test DATA HOLD function Display backlight Auto power-off mode Power supply: 3 x AA 1.5 V batteries Dimensions: 208x78x35 mm Weight: 240 g
