DKC

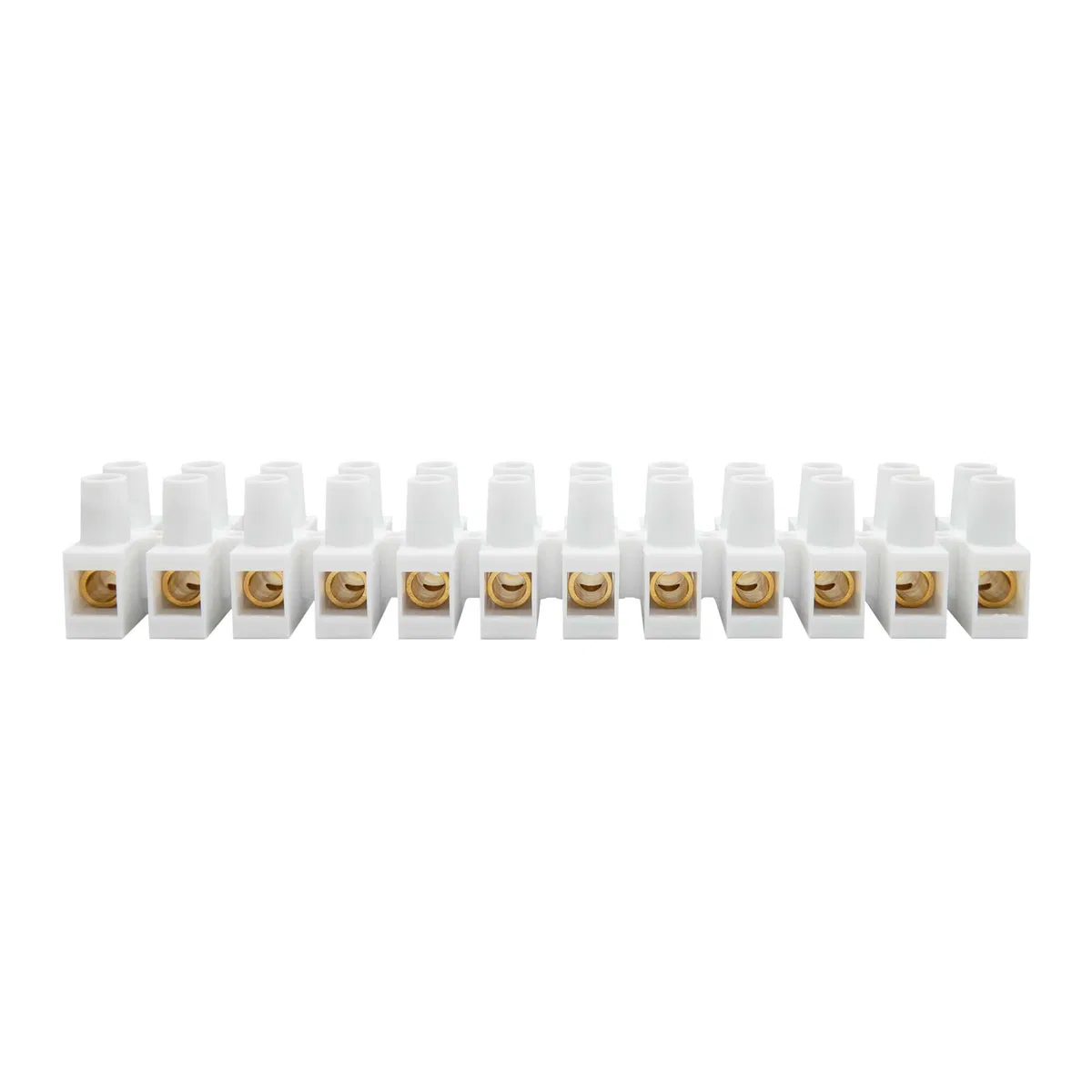

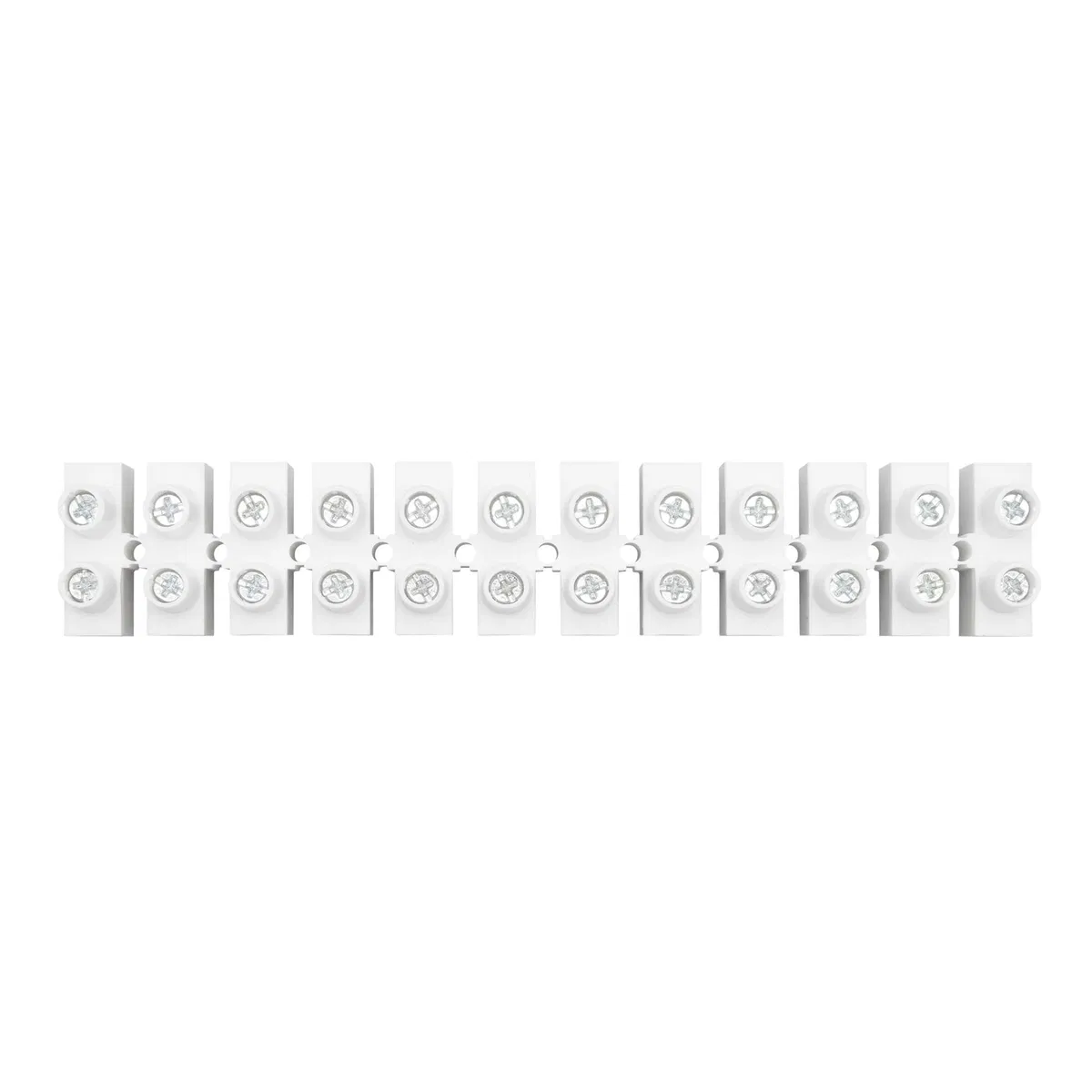

Polypropylene terminal strip, 12 poles, 25 sq.mm, 101A, white 43812PL/B DKC

SKU: 43812PL/B

ETIM: EC001284

980 ₽

Price list (incl. VAT): 1400 ₽

Available August 4

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
	Manufacturer warehouse Available	72	шт	August 4	August 4

Select a warehouse to order

Description Specifications Reviews

Version tested for explosion protection "Ex e"	No
Minimum possible mounting height	33.8 мм
Length	208.4 мм
Length	208.4 мм
Flammability class of insulation material in accordance with UL57	EV004431
Number of terminals per pole	2
Number of poles	12
Housing insulation material	Polypropylene (PP)
Rated voltage	450 В
Rated current In	101 А
Closing plate can be fitted if required	No
Transparent	No
Operating temperature	85 град.C
Operating temperature from	-20 град.C
Connection position	Side
Flexible stranded conductor cross-section up to	25 кв.мм
Stranded flexible conductor cross-section from	.75 кв.мм
Solid conductor cross-section to	25 кв.мм
Solid conductor cross-section from	25 кв.мм
Mounting method	Direct mounting
Old URL	https://sissol.ru/shop/24389-klemnik-polipropilen-belyj12r85s450v101a25mmkv.html
Electrical connection type 1	Screw connection
Electrical connection type 2	Screw connection
Colour	White
Color	White
Width/connection pitch	37.2 мм
