DKC

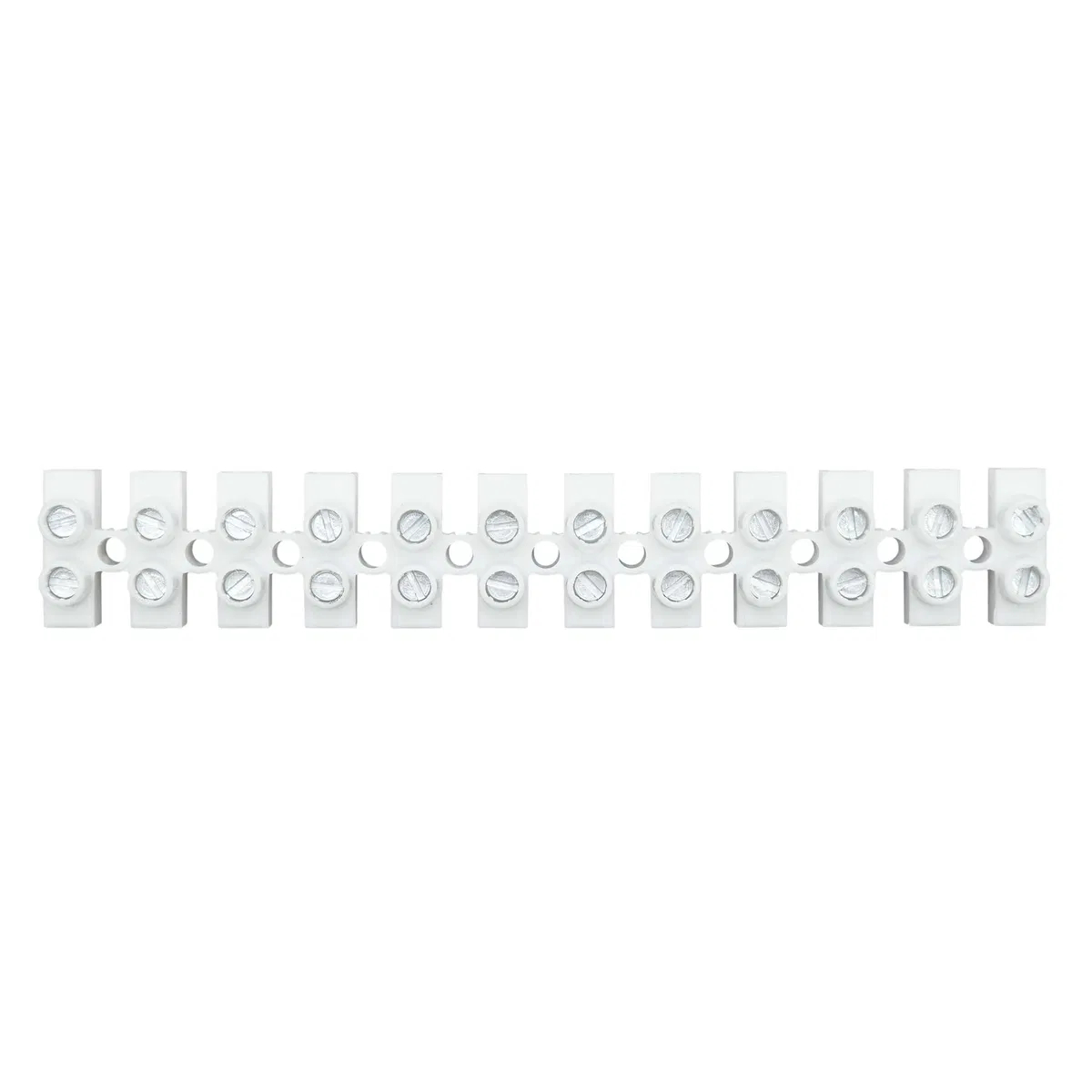

Polypropylene Terminal Block, 12 poles, 16 sq.mm, 76A, white 43512PL/B DKC
SKU: 43512PL/B
ETIM: EC001284
436 ₽
Get back 4 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
24.8 мм
Length
171.4 мм
Length
171.4 мм
Flammability class of insulation material in accordance with UL57
EV004431
Number of terminals per pole
2
Number of poles
12
Housing insulation material
Polypropylene (PP)
Rated voltage
450 В
Rated current In
76 А
Closing plate can be fitted if required
No
Transparent
No
Operating temperature
85 град.C
Operating temperature from
-20 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
.75 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
16 кв.мм
Mounting method
Direct mounting
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
White
Colour
White
Width/connection pitch
32 мм
