IEK

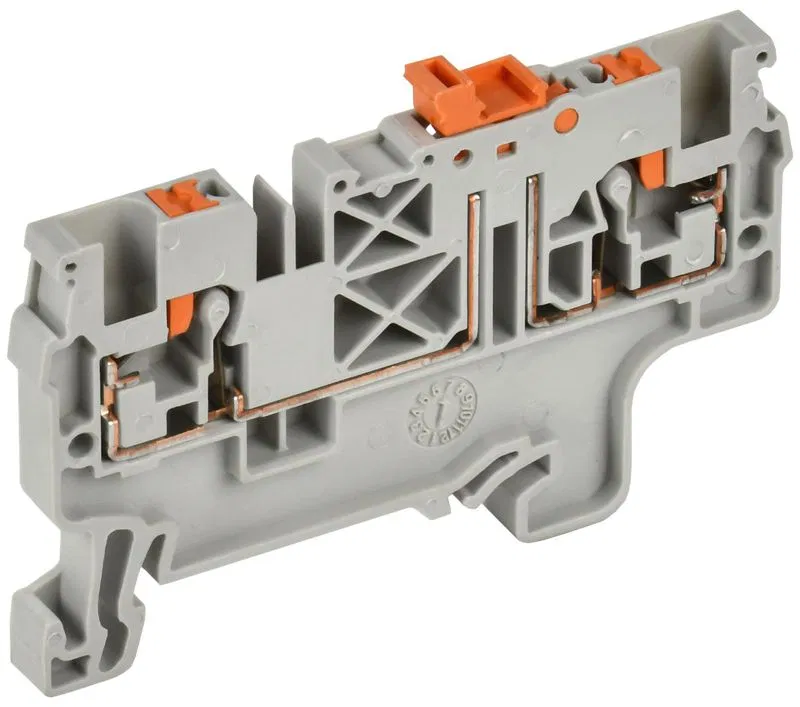

ARMAFIX Spring-cage Push-in Terminal CP-DT measuring knife-disconnect 2.5mm2 grey IEK YCT25-04-K03-002
SKU: YCT25-04-K03-002
ETIM: EC000902
343 ₽
Get back 3 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 100 шт
From our own stock you can buy 92 шт in any quantity. Above that — supply on order, in multiples of 100 шт.
Analogues by specifications
Stock by warehouse
No description available
Minimum possible mounting height
38 мм
Longitudinal blade design
Swivel/extending
Number of terminals per level
2
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
20 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...2.5 мм²
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
0.2...2.5 кв.мм
Cross-section of extra-fine-stranded flexible conductor without ferrule to
2.5 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...2.5 кв.мм
With built-in test socket
No
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
5 мм
