Signal column 50mm 220V stroboscope FLESH buzzer alum. pipe 100mm red. EMAS IK51F220ZM03

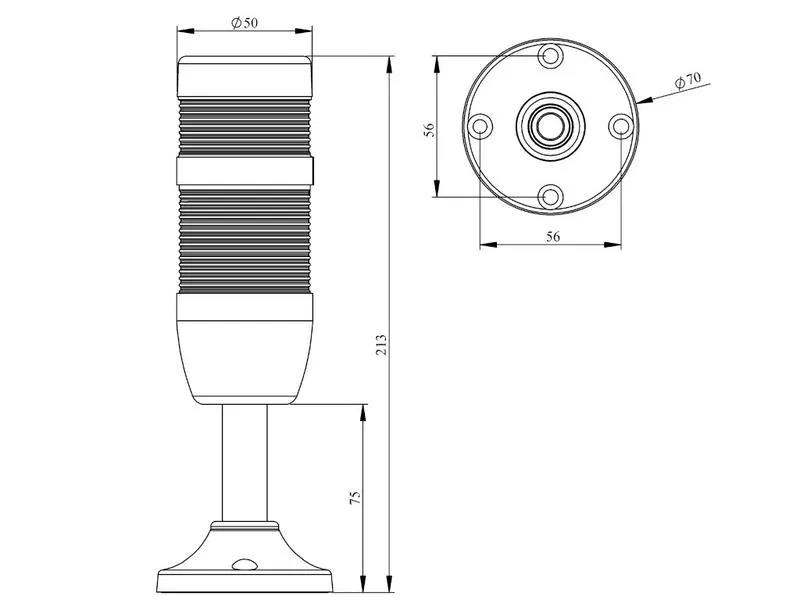

Signal column 50mm, single-color (red), with buzzer, strobe FLESH, alum. pipe 100mm with base, 220V AC, IP40 TECHNICAL INFORMATION Sound module (buzzer) 90dB Lamp type LED (FLESH) Operating frequency 50Hz Operating voltage 220V AC Column diameter 50 mm Power consumption 4W Insulation voltage (Ui) 300V Operating temperature -25 °C / + 70 °C Protection class IP40 Cable connection cross-section 0.75-1.5mm2 Clamping force 1.8 N Socket type BA15S Series IK Electrical life (min. hours) 10,000 hours EMAS signal columns are used for visual and sound-visual signaling of equipment status, providing permissive or prohibitive light signals, and warning personnel of emergency and extraordinary situations related to safe equipment operation. The range includes signal columns with incandescent bulbs, LED lamps, and LED strobe lamps (flashing). Signal columns have a modular design, are installed without tools, and continuously provide information on current operating modes, presence of failures, and possible critical states. The signal column can be equipped with an acoustic signaling device (buzzer) 90 dB. Advantages of signal fittings: • Heat-resistant • Two types of outer diameter 50mm - 70mm • Polycarbonate lens • Convenient connection methods • Various supply voltages • Housing is resistant to mechanical impacts • Buzzer option
