Signal column 50mm 220V LED red/yellow/green/white/blue EMAS IK55L220XM03

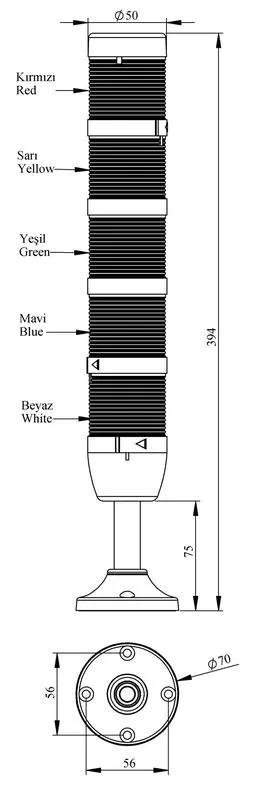

Signal column 50mm, 5 colors (red, green, yellow, blue, white), LED, alum. tube 100mm with base, 220 V AC, IP40 TECHNICAL CHARACTERISTICS Lamp type LED Operating frequency 50Hz Operating voltage 220V AC Column diameter 50 mm. Mounting type tube 100mm Power consumption 5W Insulation voltage (Ui) 300V Operating temperature -25°C/+70°C Protection class IP40 Cable connection cross-section 0.75-1.5mm2 Clamping force 1.8 N Socket type BA15S Series IK Electrical life (min. hours) 10,000 hours EMAS signal columns are used for light and sound-light signaling of equipment status, providing permissive or prohibitive light signals, and warning personnel of emergency and extraordinary situations related to safe equipment operation. The range includes signal columns with incandescent bulbs, LED lamps, and strobe LED lamps (flashing). Signal columns have a modular design, are installed without tools, and provide continuous information on current operating modes, presence of failures, and possible critical states. The signal column can be equipped with an acoustic signaling device (buzzer) 90 dB. Advantages of signal fittings: • Heat resistant • Two types of outer diameter 50mm -70mm • Polycarbonate lens • Convenient connection methods • Various supply voltages • Housing is resistant to mechanical impacts • Buzzer option
