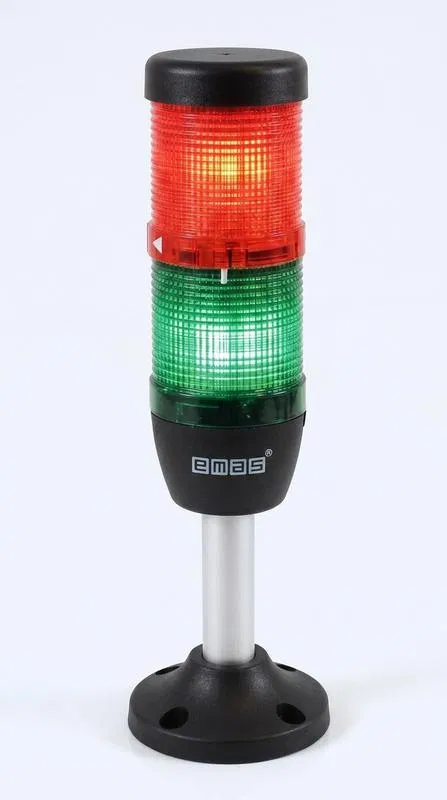

Signal column 50mm 24V LED alum. pipe 20mm red/green EMAS IK52L024XM02

Signal column 50mm, 2 colors (red, green), LED, 20mm aluminum tube with base, 24V AC/DC, IP40 TECHNICAL INFORMATION Sound module (buzzer) Optional installation Lamp type LED Operating frequency 50Hz Operating voltage 24V AC/DC Column diameter 50 mm. Power consumption 4W Insulation voltage (Ui) 300V Operating temperature -25 °C / + 70 °C Protection class IP40 Cable connection cross-section 0.75-1.5mm2 Clamping force 1.8 N Socket type BA15S Series IK Electrical life (min. hours) 10,000 hours EMAS signal columns are used for visual and sound-visual signaling of equipment status, providing permissive or prohibitive light signals, and warning personnel of emergency and extraordinary situations related to safe equipment operation. The range includes signal columns with incandescent bulbs, LED lamps, and strobe LED lamps (flashing). Signal columns have a modular design, are installed without tools, and provide continuous information on current operating modes, faults, and possible critical states. The signal column can be equipped with an acoustic signaling device (buzzer) of 90 dB. Advantages of signal fittings: • Heat resistant • Two types of outer diameter 50mm - 70mm • Polycarbonate lens • Convenient connection methods • Various supply voltages • Housing is resistant to mechanical impacts • Buzzer option
