Signal tower 70mm 220V strobe red/green EMAS IK72F220XM01

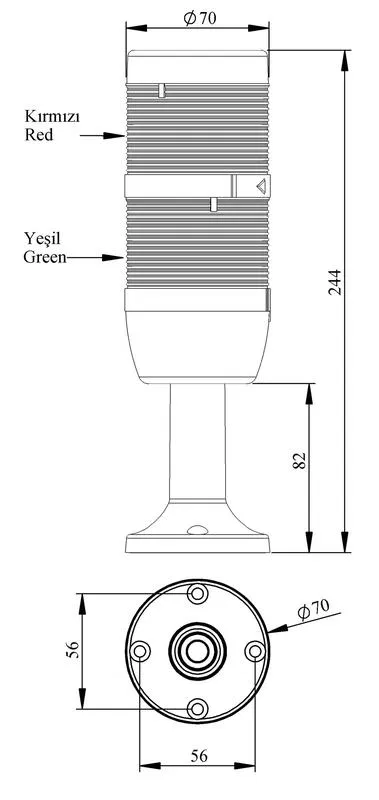

Signal column 70mm, 2 colors (red, green), FLESH strobe, 100mm plastic pipe with base, 220V AC, IP40 TECHNICAL INFORMATION Light source type LED (FLESH) Operating frequency 50Hz Operating voltage 220V AC Product LED column 70mm. Mounting type Tubular plastic leg 110mm. Color Red/Green Power consumption 2W Insulation voltage (Ui) 300V Operating temperature -25°C/+70°C Protection class IP40 - (can be increased to IP65) Cable connection cross-section 0.75-1.5 mm2 Clamping force 1.8Nm Socket type BA15S Series IK Electrical life (min. Hours) 10,000 hours Buzzer Can be installed additionally EMAS signal columns are used for light and light-sound signaling of equipment status, providing permissive or prohibitive light signals, and warning personnel of emergency and extraordinary situations related to safe equipment operation. The range includes signal columns with incandescent bulbs, LED lamps, and LED strobe lamps (flashing). Signal columns have a modular design, are installed without tools, and provide continuous information on current operating modes, presence of malfunctions, and possible critical states. The signal column can be equipped with an acoustic signaling device (buzzer) 90dB. Advantages of signal fittings: • Heat-resistant • Two types of outer diameter 50mm -70mm • Polycarbonate lens • Convenient connection methods • Various supply voltages • Housing is resistant to mechanical impacts • Buzzer option
