Signal column 70mm 24V strobe FLESH red/yellow/green/blue EMAS IK74F024XM01

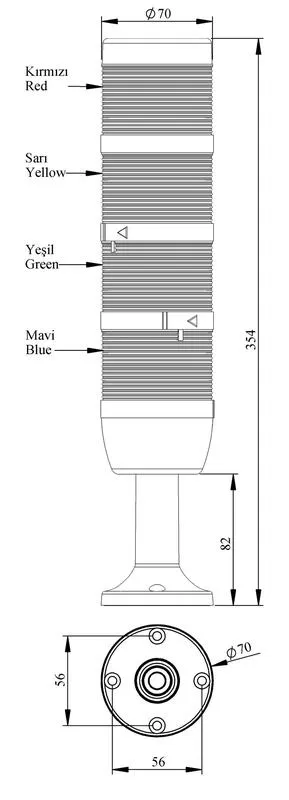

Signal tower 70mm, 4 colors (red, green, yellow, blue), FLESH strobe, 100mm plastic tube with base, 24V AC/DC, IP40 TECHNICAL CHARACTERISTICS Lamp type LED (FLESH) Operating frequency 50Hz Operating voltage 24V AC/DC Column diameter 70mm Mounting type 100mm tube Power consumption 5W Insulation voltage (Ui) 300V Operating temperature -25°C/+70°C Protection class IP40 - (can be increased to IP65) Cable connection cross-section 0.75-1.5mm2 Clamping force 1.8 N Socket type BA15S Series IK Electrical life (min. hours) 10,000 hours Buzzer Can be installed additionally EMAS signal towers are used for light and light-sound signaling of equipment status, providing permissive or prohibitive light signals, and warning personnel of emergency and extraordinary situations related to safe equipment operation. The range includes signal towers with incandescent bulbs, LED lamps, and LED strobe lamps (flashing). Signal towers have a modular design, are installed without tools, and continuously provide information on current operating modes, presence of malfunctions, and possible critical states. The signal tower can be equipped with an acoustic signaling device (buzzer) 90 dB. Advantages of signal fittings: • Heat resistant • Two types of outer diameter 50mm - 70mm • Polycarbonate lens • Convenient connection methods • Various supply voltages • Housing is resistant to mechanical impacts • Buzzer option
