LV Capacitor 20kVAR 440V SE SCAN2003P440 Systeme Electric

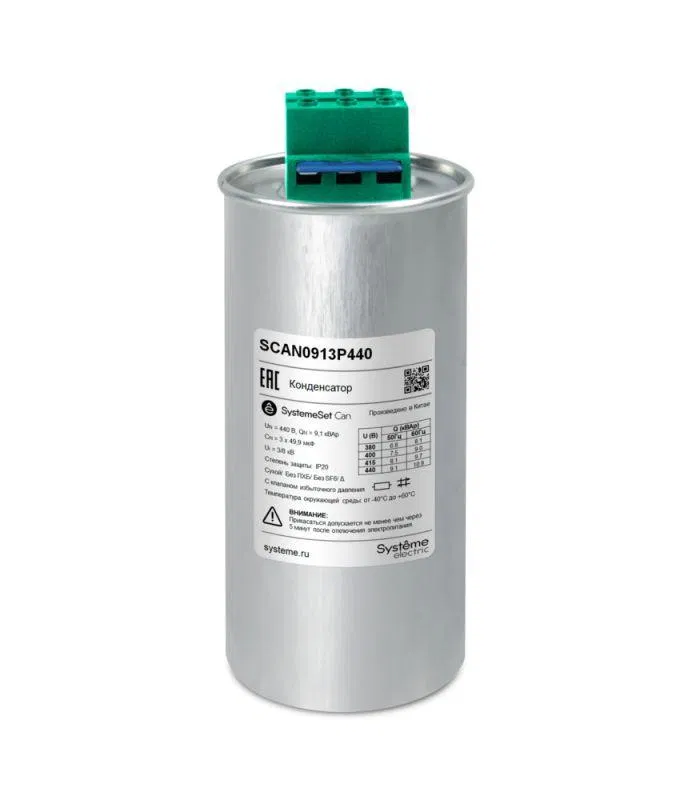

Low-voltage three-phase capacitor of the Systeme Electric brand, SystemeSet series, Can type, is designed for reactive power compensation. The power capacitor consists of three single-phase capacitors assembled into a single construction. Metallized polypropylene film with self-healing function is used as the dielectric in the capacitors. The capacitor design also includes: a fuse with an overpressure membrane and a terminal block with a discharge resistor. The capacitor housing is made of extruded aluminum. A dry biodegradable resin without PCB, without SF6 is used as impregnation. Rated power 20 kVAr, rated voltage 440V; ambient temperature from -40°C to +60°C; F116; continuous current 2In; maximum inrush current 400In; IP20 protection degree (formerly Schneider Electric Components for LV PFC assembly BLRCH200A240B44, BLRCS200A240B44).
