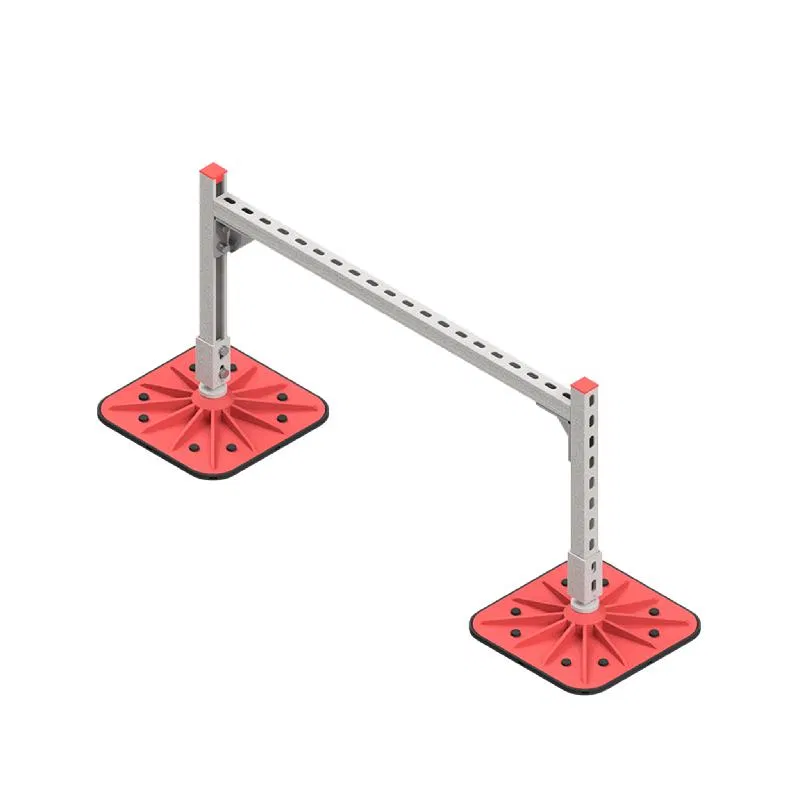

Support structure for horiz. rect. air ducts and metal cable tray systems TECHNORAPTOR FOOT 1000x500 HD KM TR0285 KM SYSTEM

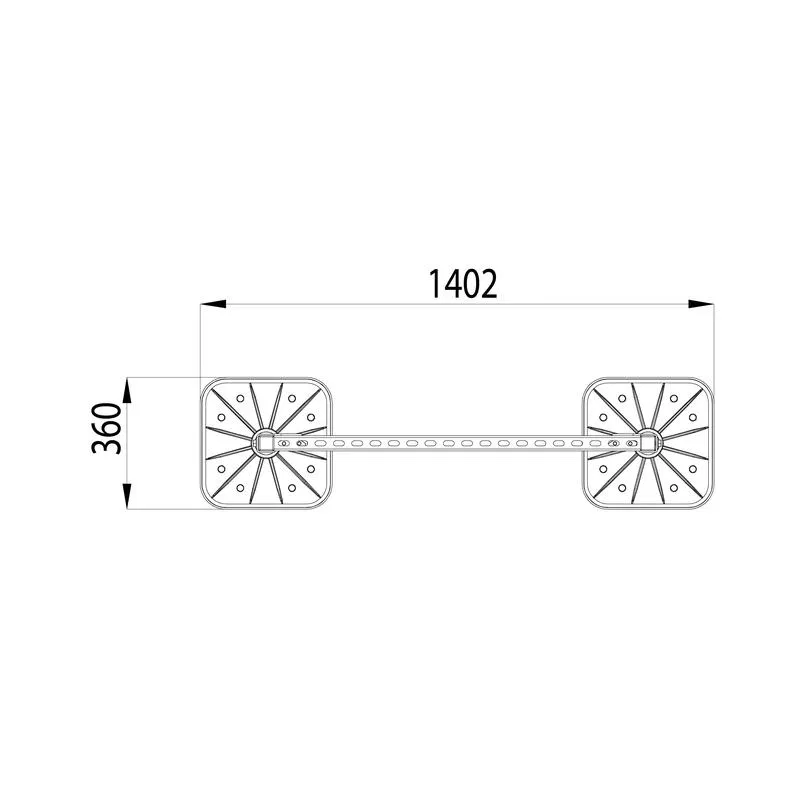

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the equipment being installed. Before ordering components, it is required to perform a calculation of snow and wind loads for the specific delivery site. It is prohibited to fasten roof supports to the base. Fastening elements of the unit (bolts, nuts, vibration dampers, etc.) are not included in the specification of the support structure; the quantity and sizes depend on the specific equipment. The KM-TECHNORAPTOR-FOOT roof support provides compensation for roof slope up to 8 degrees. The maximum allowable distributed load on the metal frame is 200 kg. The product is hot-dip galvanized according to GOST 9.307-2021.
