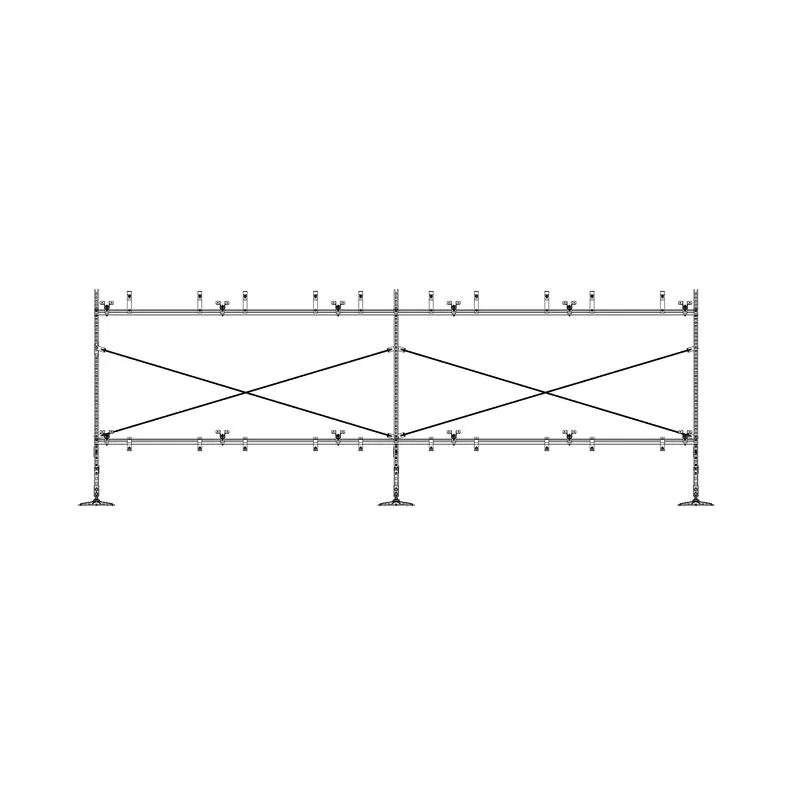

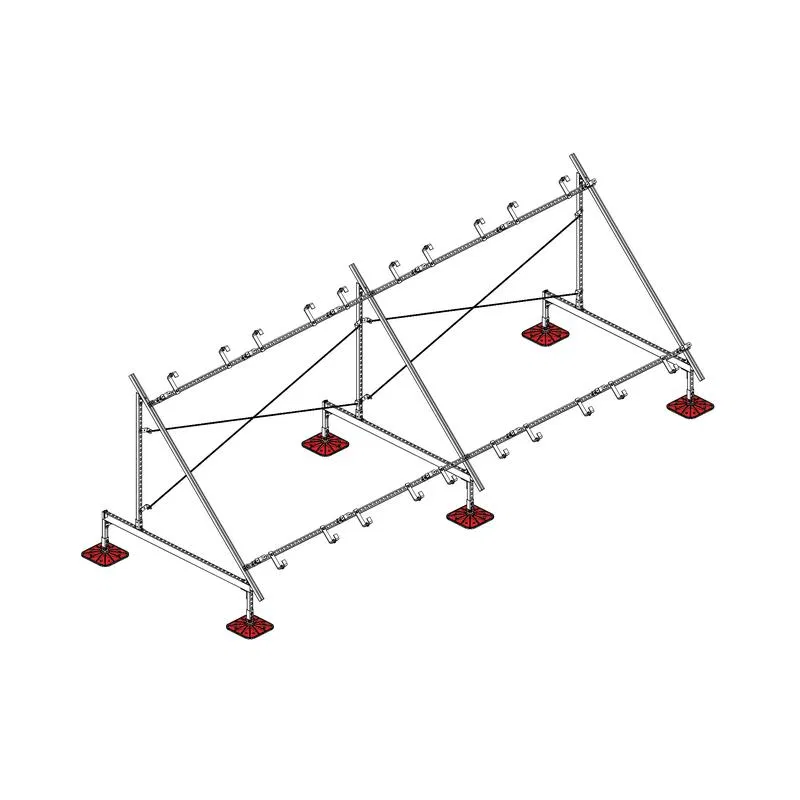

Support structure for installation of multiple solar panels/collectors TECHNORAPTOR FOOT KM-TR-F-SSfMMPI-C KM TR0081 KM SYSTEM

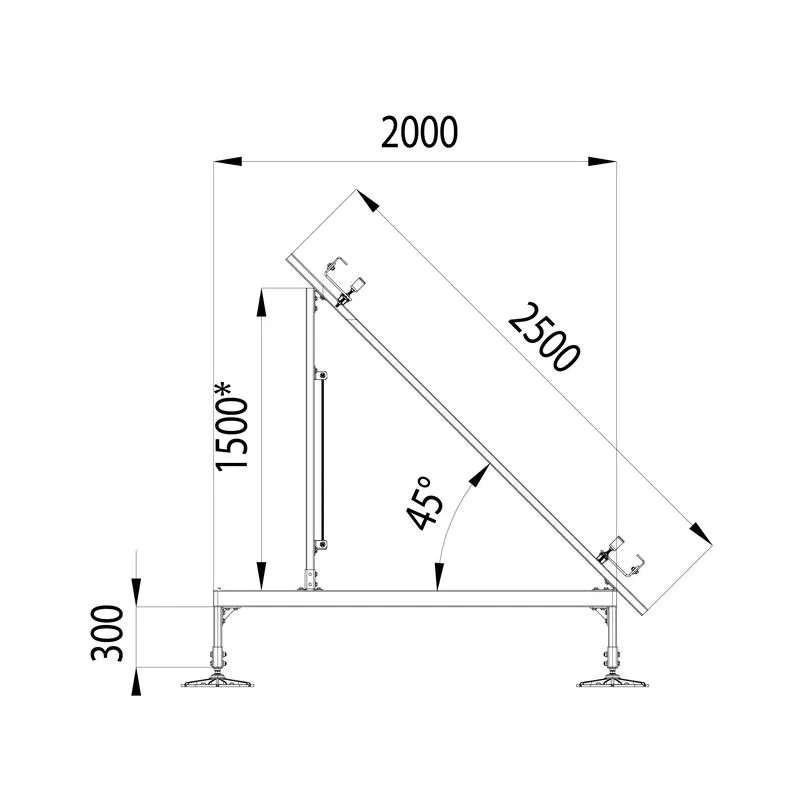

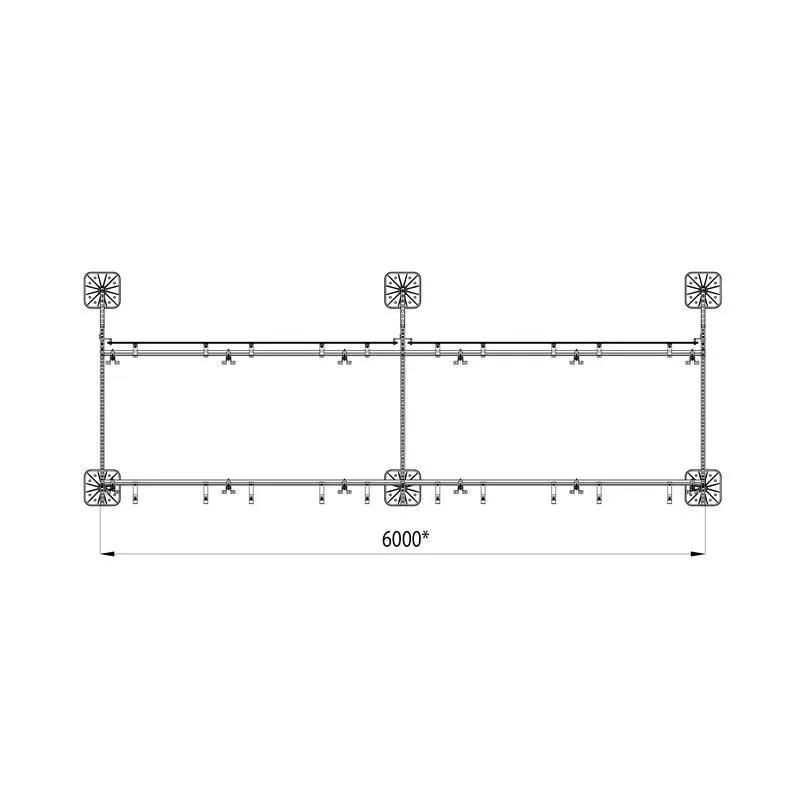

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the installed equipment. Before ordering components, it is required to perform snow and wind load calculations for the specific delivery object. It is prohibited to fasten roof supports to the base. Fastening elements of the unit (bolts, nuts, vibration dampers, etc.) are not included in the specification of the support structure; the quantity and dimensions depend on the specific equipment. The KM-TECHNORAPTOR-FOOT roof support provides compensation for roof slope up to 8 degrees. When used in wind zones 3 and 4, a frame weighting of at least 60 kg per 1m² of solar panel or the installation of guy wires to the load-bearing structures is required. This structure is made of steel strip profile with a Sendzimir galvanized coating. Execution with hot-dip galvanized profile coating is also possible.
