Support structure for equipment installation TECHNORAPTOR FOOT 1200x4000 type 1 KM-TR-F-SSEI-1200-4000-1 KM TR0019 KM SYSTEM

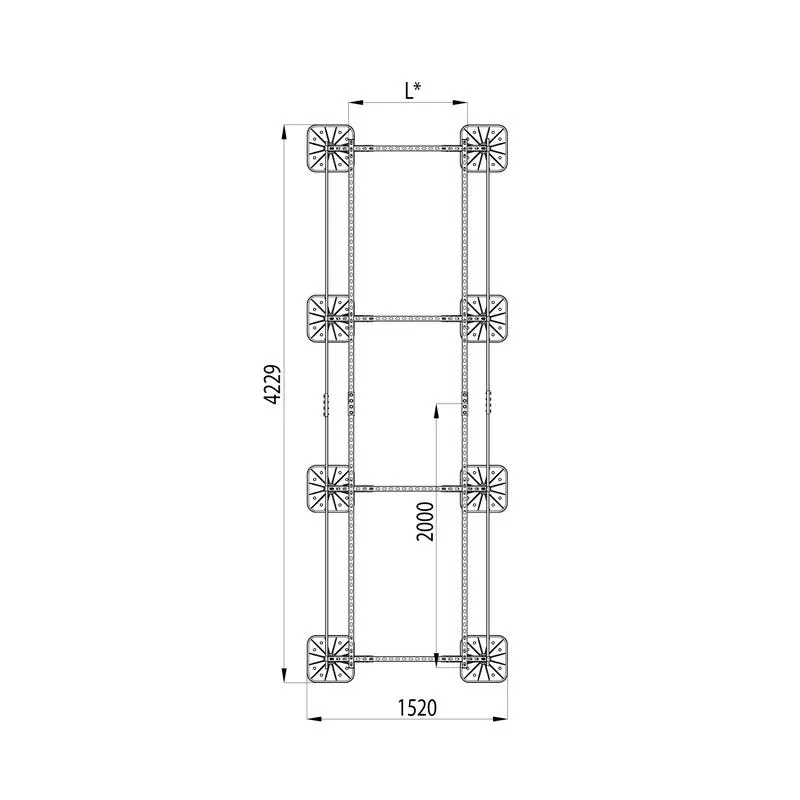

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the equipment being installed. Before ordering components, it is necessary to perform a calculation of snow and wind loads for the specific delivery object. It is forbidden to fasten roof supports to the base. Fastening elements of the unit (bolts, nuts, vibration dampers, etc.) are not included in the specification of the support structure; the quantity and dimensions depend on the specific equipment. The KM-TECHNORAPTOR-FOOT roof support provides compensation for roof slope up to 8 degrees. Maximum allowable distributed load on the metal frame is 1100 kg. This structure is made of steel strat-profile with a Sendzimir method galvanized coating. It is also possible to execute with a hot-dip galvanized profile coating.
