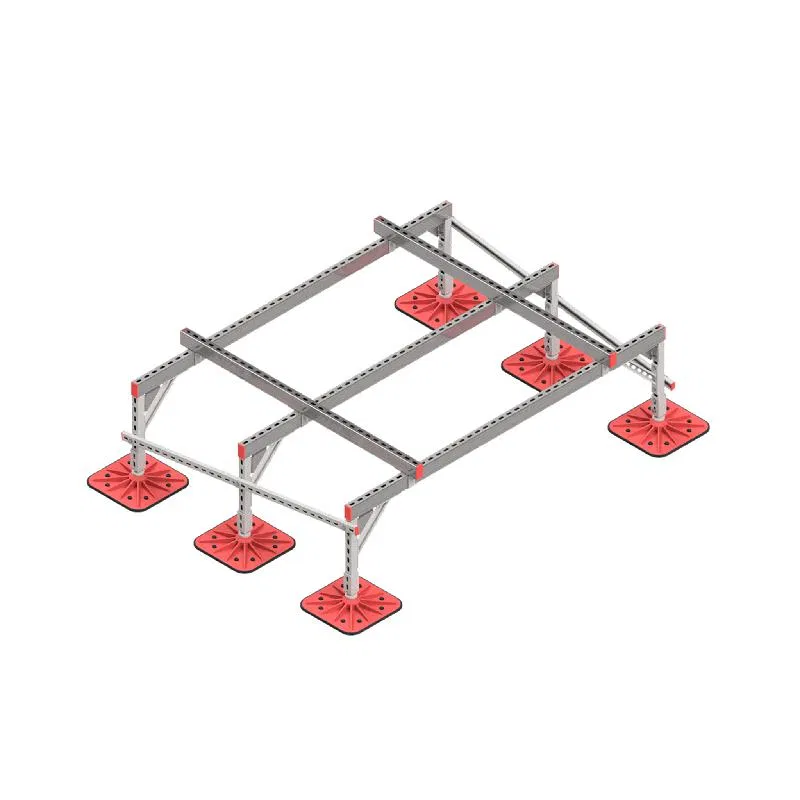

Support structure for equipment installation TECHNORAPTOR FOOT 2500x4000 KM-TR-F-SSEI-2500-4000 KM TR0052 KM SYSTEM

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the equipment being installed. Before ordering components, it is necessary to perform snow and wind load calculations for the specific delivery object. It is prohibited to fasten roof supports to the base. The unit's fasteners (bolts, nuts, vibration isolators, etc.) are not included in the support structure specification; the quantity and dimensions depend on the specific equipment. The KM-TECHNORAPTOR-FOOT roof support provides compensation for roof slope up to 8 degrees. The maximum allowable distributed load on the metal frame is 1650 kg. This structure is made of steel strip profile with a galvanized coating applied by the Sendzimir method. It is also possible to have a version with a hot-dip galvanized profile coating.
