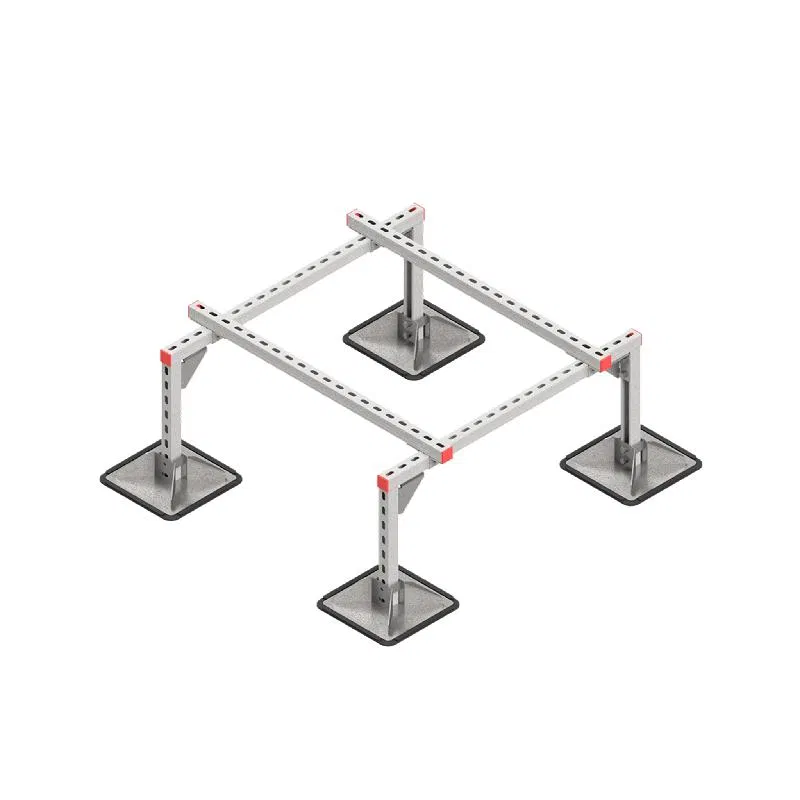

Support structure for installing TECHNORAPTOR STEELFOOT 1000x1000 HD KM TR0298 KM SYSTEM equipment

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the installed equipment. Before ordering components, it is required to perform snow and wind load calculations for the specific delivery object. It is prohibited to fasten roof supports to the base. The unit's fasteners (bolts, nuts, vibration dampers, etc.) are not included in the support structure specification; the quantity and dimensions depend on the specific equipment. The KM-TECHNORAPTOR-STEELFOOT roof support provides compensation for roof slope up to 15 degrees. Maximum allowable distributed load on the metal frame is 400kg. The product is hot-dip galvanized according to GOST 9.307-2021.
