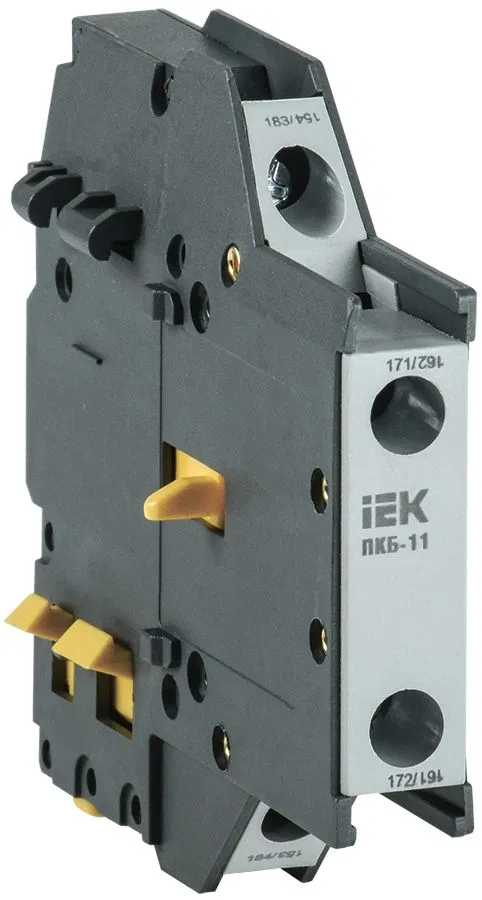

PKB contact accessories are designed to expand the capabilities of contactors in automation systems for technological projects.
Height
73.0 мм
Depth
72.0 мм
Operating temperature range
-40...+50
Number of normally closed (NC) contacts
1
Number of normally open (NO) contacts
1
Max. short-time load
100.0
Maximum conductor cross-section
1...4 кв.мм
Min making capacity at min voltage
17.0
Min. making capacity at min. current
5.0
Rated DC operating current DC-13 400 V
0.63
Rated operating current Ie at AC-15 400 V
3.00
Rated operating current Ie at AC-15 660 V
1.50
Rated insulation voltage Ui
690 В
Rated control supply voltage Us AC at 50 Hz up to
660 В
Rated control supply voltage Us AC at 50 Hz from
660 В
Rated control supply voltage Us DC up to
440 В
Rated control supply voltage Us DC from
440 В
Rated operational current Ie at AC-15, 230V
6.0 А
Rated operating current Ie at DC-13, 230 V
1.5 А
Repairability
No
Switch-on current type
AC/DC
With built-in protection
No
Insulation resistance
10.0
Installation type
Direct mounting
Contactor design
KMI, KMIe frame size 1...3
Thermal resistance current
10.0
Width
17.0 мм
