EKF

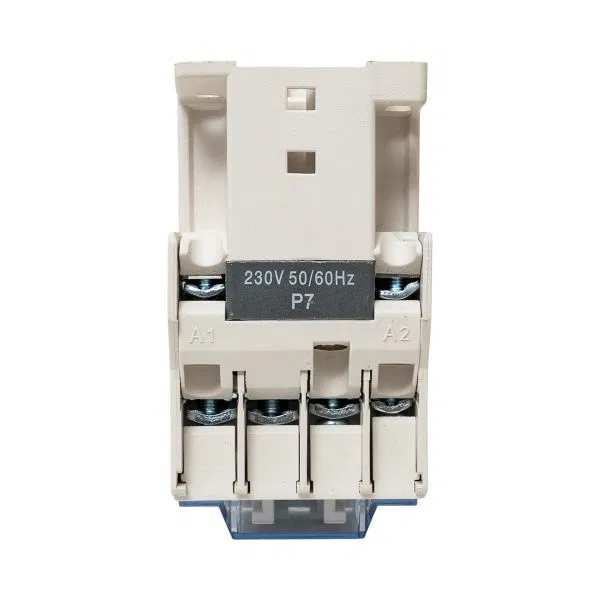

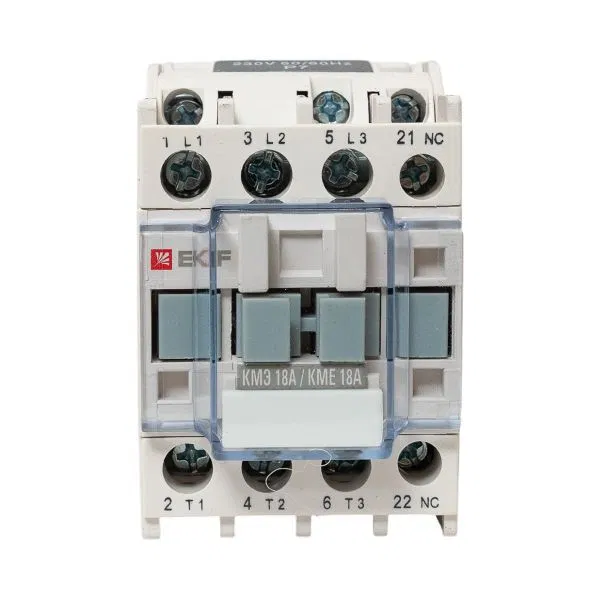

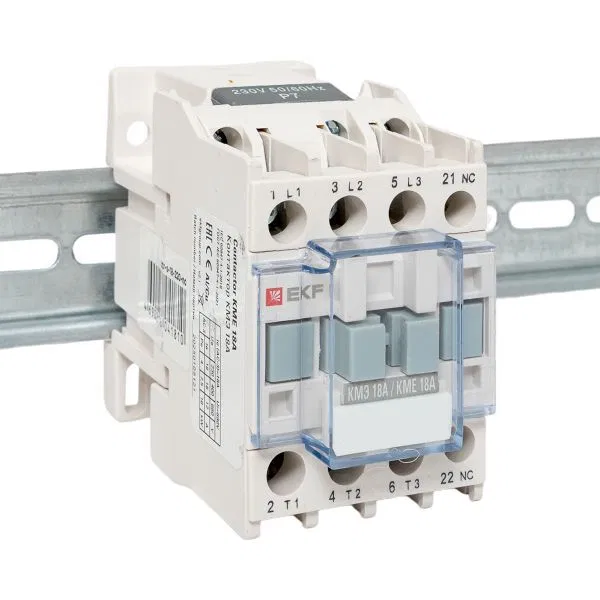

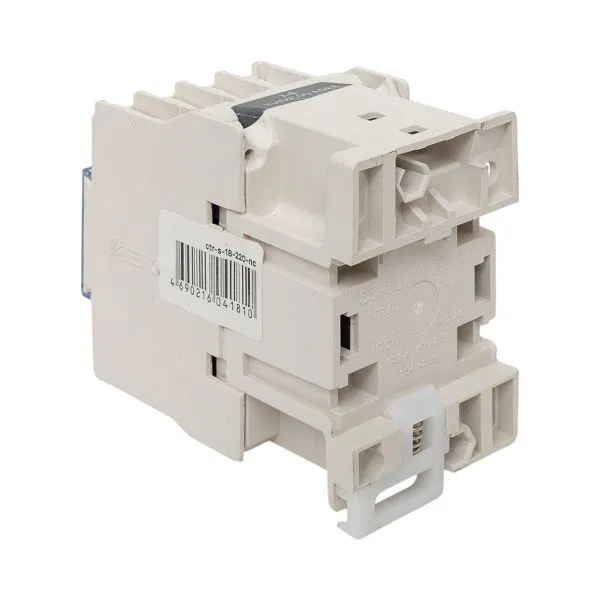

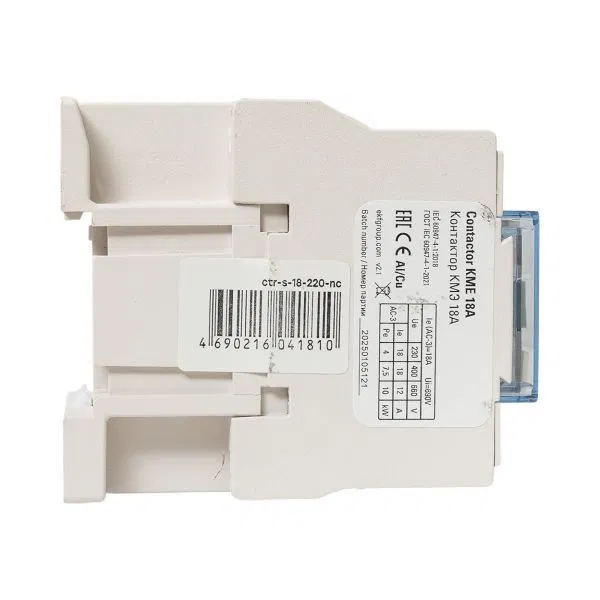

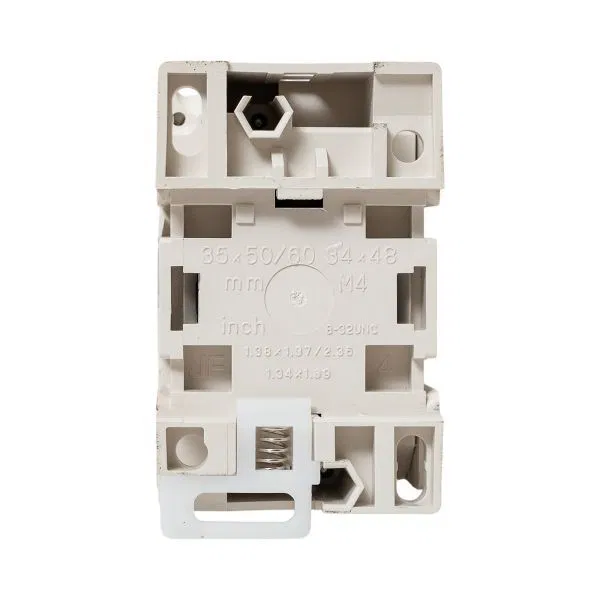

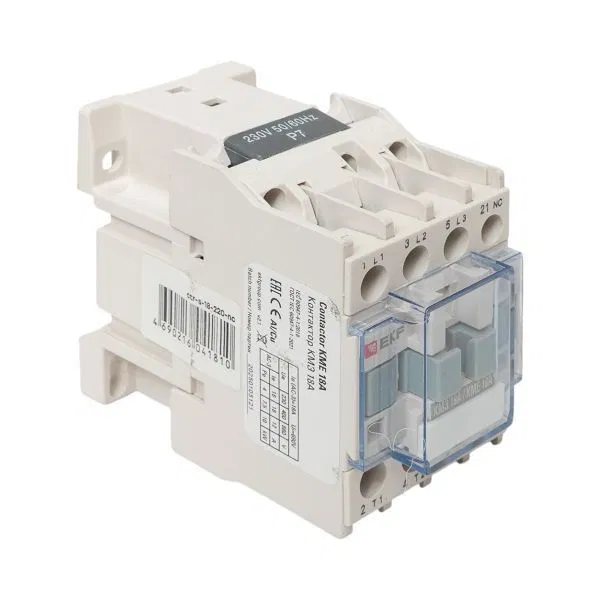

Contactor KME compact 18A 220V 1NC EKF PROxima ctr-s-18-220-nc
SKU: ctr-s-18-220-nc
ETIM: EC000066
830 ₽
Get back 8 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
1
Number of main NO contacts
3
Number of main NC contacts
0
Modular design
No
Rated switching power at AC-4, 400 V
4 кВт
Rated operational current Ie at AC-4, 400 V
8 А
Rated power at AC-3, 400 V
7 кВт
Rated operational power (NEMA)
4 кВт
Rated control supply voltage Us AC at 50 Hz up to
253 В
Rated control supply voltage Us AC at 50 Hz from
195.5...253 В
Rated control supply voltage Us DC up to
0 В
Rated control supply voltage Us DC from
0 В
Rated operational current Ie at AC-1, 400 V
32 А
Rated operating current Ie at AC-3, 400 V
18 А
Switch-on current type
AC (alternating)
Main electrical circuit connection type
Screw connection
0
★★★★★
