EKF

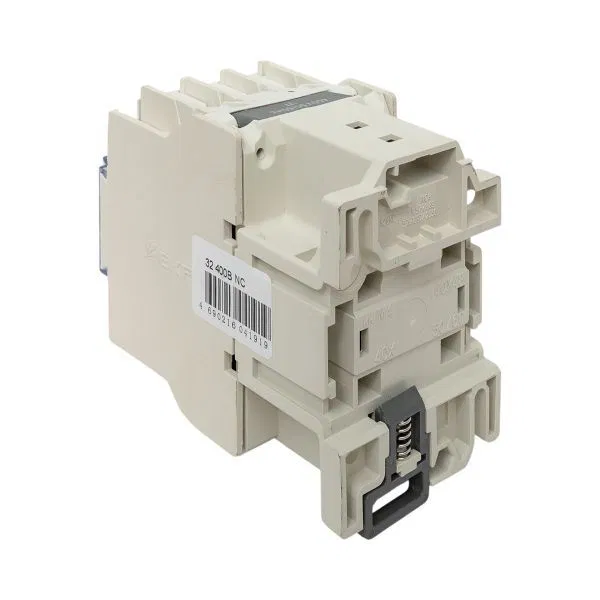

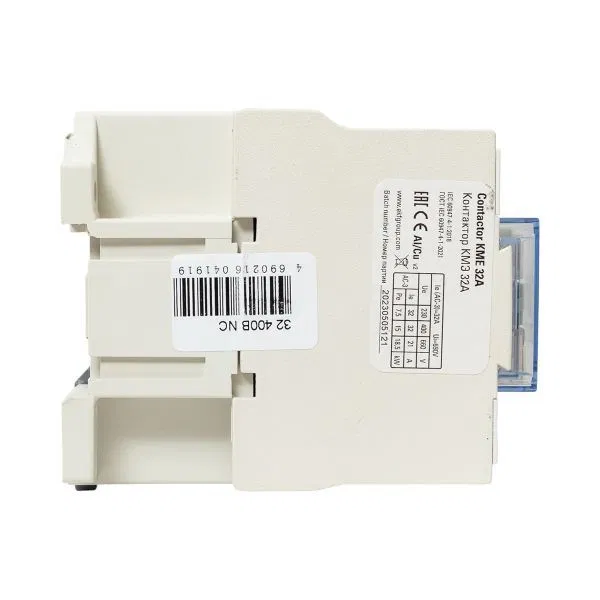

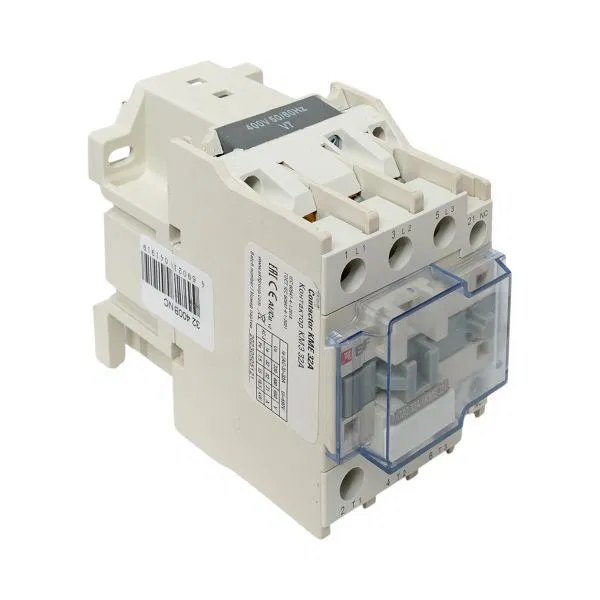

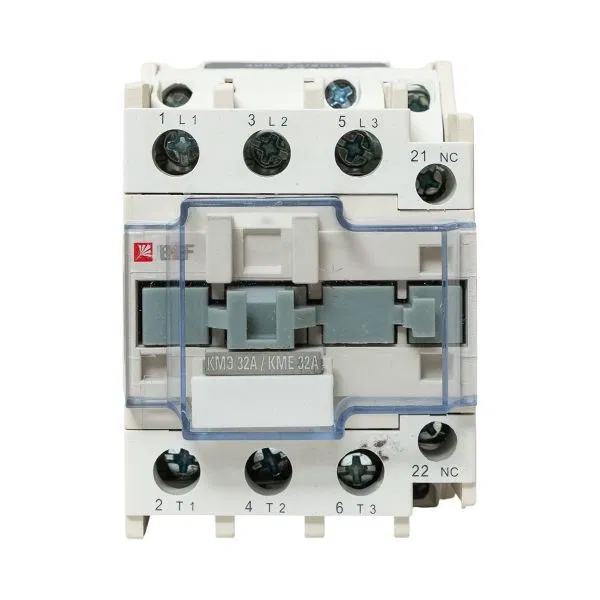

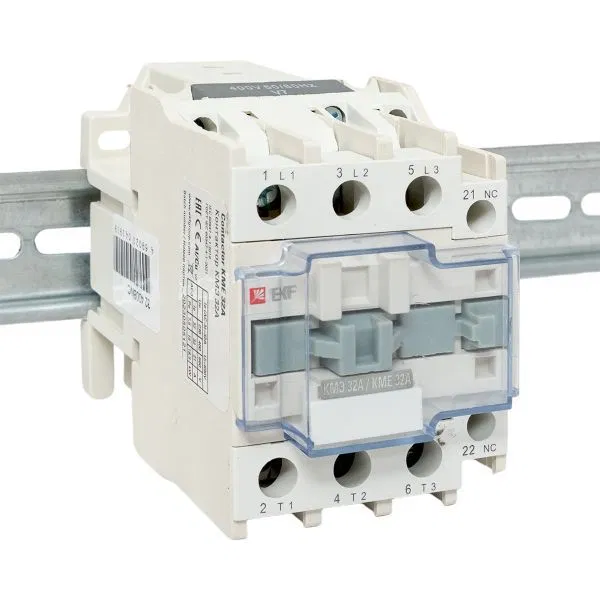

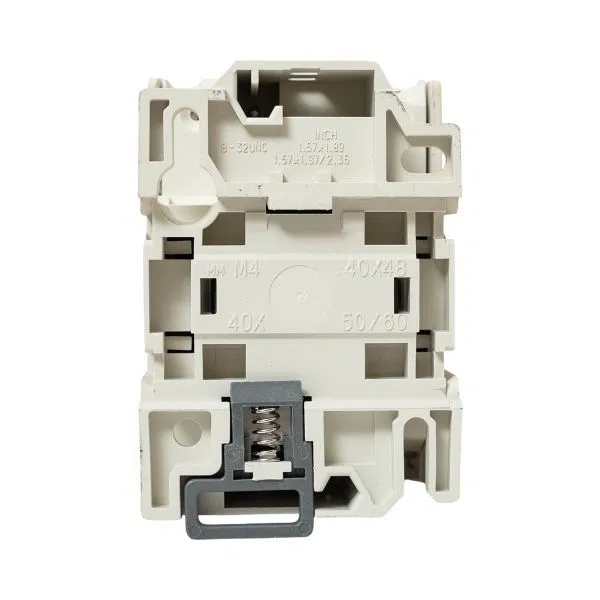

Contactor KME compact 32A 380V 1NC EKF PROxima ctr-s-32-380-nc
SKU: ctr-s-32-380-nc
ETIM: EC000066
1,810 ₽
Get back 18 ₽ in points
Analogues by specifications
No description available
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
1
Number of main NO contacts
3
Number of main NC contacts
0
Modular design
No
Rated switching power at AC-4, 400 V
6 кВт
Rated operational current Ie at AC-4, 400 V
12 А
Rated power at AC-3, 400 V
15 кВт
Rated operational power (NEMA)
8 кВт
Rated control supply voltage Us AC at 50 Hz up to
440 В
Rated control supply voltage Us AC at 50 Hz from
340...440 В
Rated control supply voltage Us DC up to
0 В
Rated control supply voltage Us DC from
0 В
Rated operational current Ie at AC-1, 400 V
55 А
Rated operating current Ie at AC-3, 400 V
32 А
Switch-on current type
AC (alternating)
Main electrical circuit connection type
Screw connection
0
★★★★★
