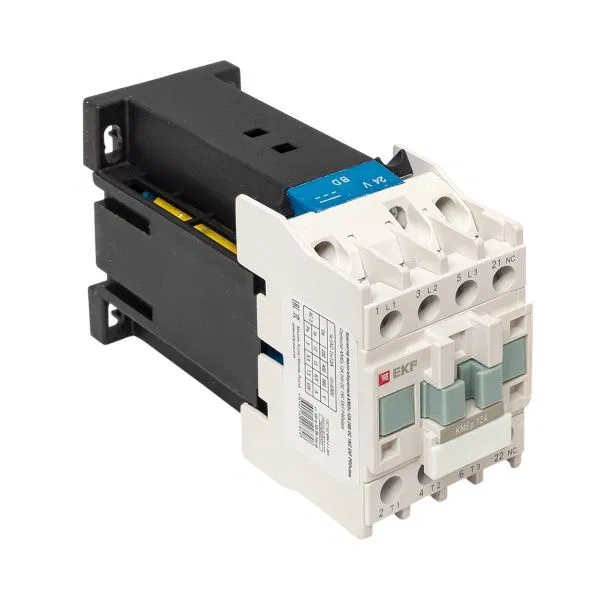

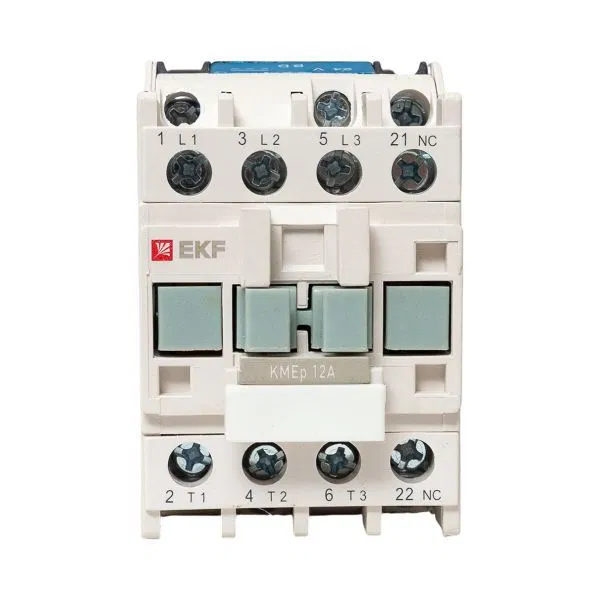

Contactor KMEp compact 12A 24V DC 1NC EKF PROxima ctr-s-12-24-1nc-p
SKU: ctr-s-12-24-1nc-p
ETIM: EC000066
7319 ₽
Price list (incl. VAT):
7500 ₽
Available August 11
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
| Manufacturer warehouse | |||||
|
Manufacturer warehouse
Available
|
53 | шт | August 11 | clarifying | |
Select a warehouse to order
KMEp Proxima contactors consist of a housing, fixed contacts secured within it, and moving contacts secured in the moving part of the magnetic system. The stationary part of the magnetic system is rigidly fixed in the KMEp housing. A spring prevents the contacts from closing. When voltage is applied to the control coil, a magnetic field arises in the contactor's magnetic system, which, overcoming the spring resistance, closes the magnetic system and closes the contacts. When voltage is removed from the control coil, the spring opens the contacts. Commutation of aluminum and copper conductors is possible.
| Number of auxiliary NO contacts | 0 |
| Number of auxiliary break contacts | 1 |
| Number of main NO contacts | 3 |
| Number of main NC contacts | 0 |
| Modular design | No |
| Rated switching power at AC-4, 400 V | 3 кВт |
| Rated operational current Ie at AC-4, 400 V | 5 А |
| Rated power at AC-3, 400 V | 5 кВт |
| Rated operational power (NEMA) | 3 кВт |
| Rated control supply voltage Us AC at 50 Hz up to | 0 В |
| Rated control supply voltage Us AC at 50 Hz from | 0 В |
| Rated control supply voltage Us DC up to | 26.4 В |
| Rated control supply voltage Us DC from | 24...24 В |
| Rated operational current Ie at AC-1, 400 V | 27 А |
| Rated operating current Ie at AC-3, 400 V | 12 А |
| Switch-on current type | DC (direct) |
| Main electrical circuit connection type | Screw connection |
