Generica (Группа IEK)

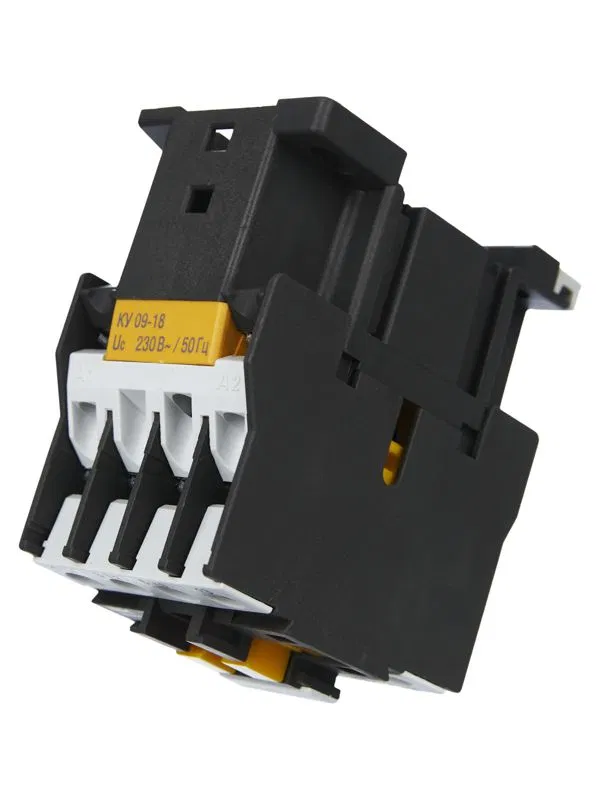

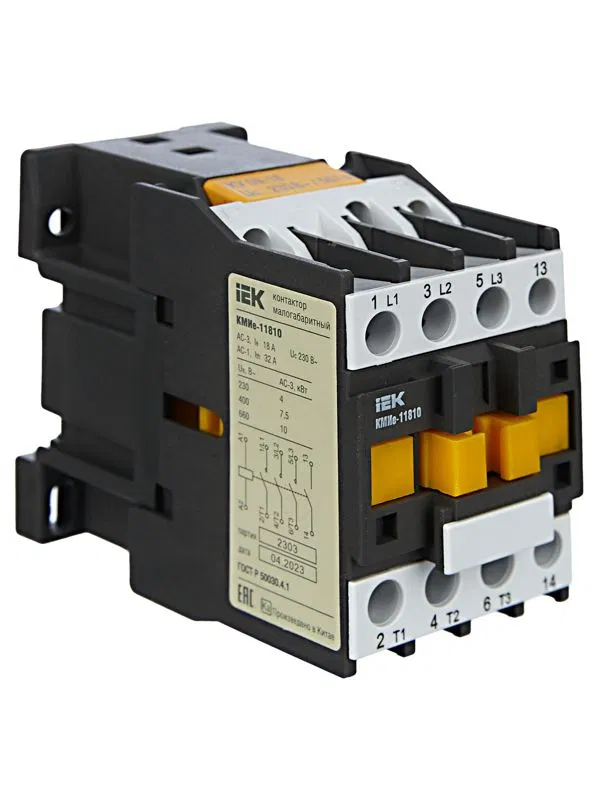

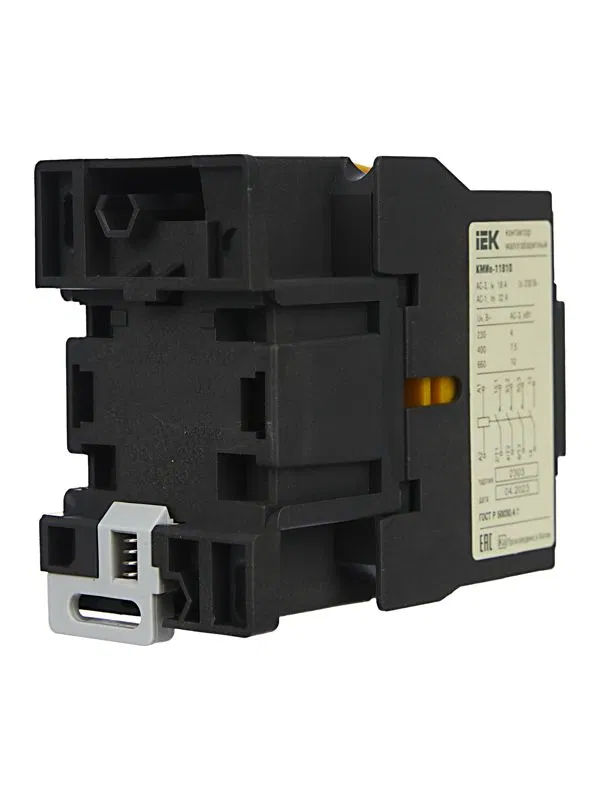

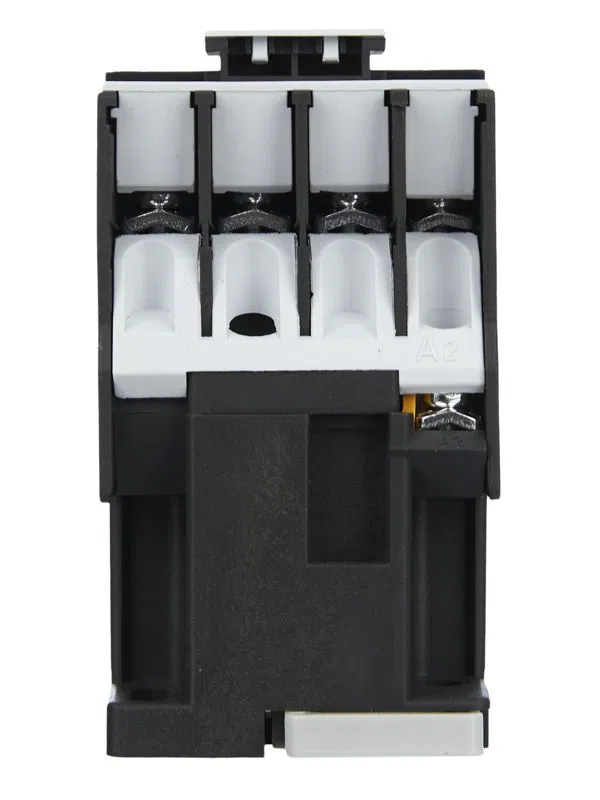

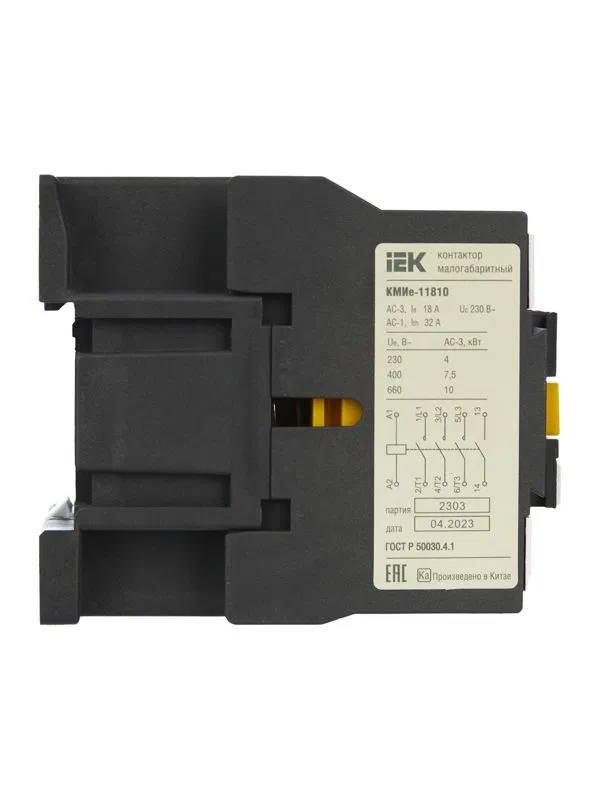

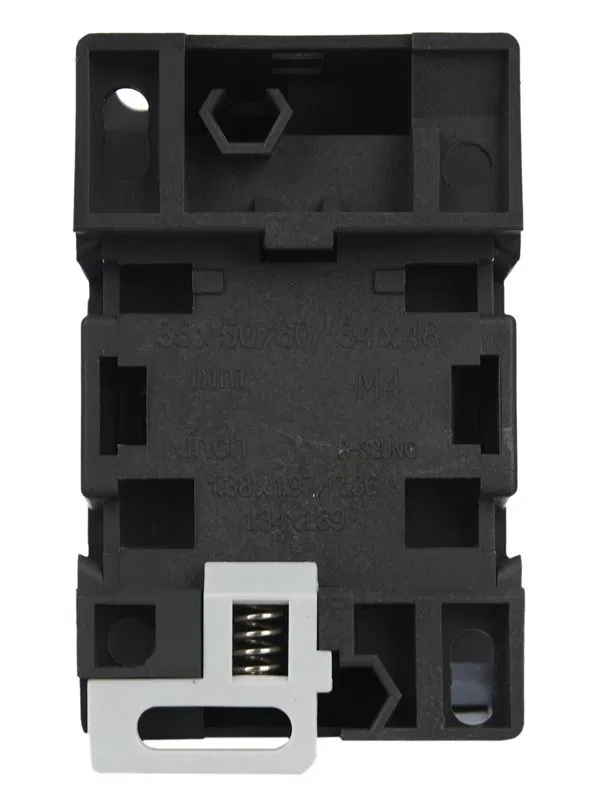

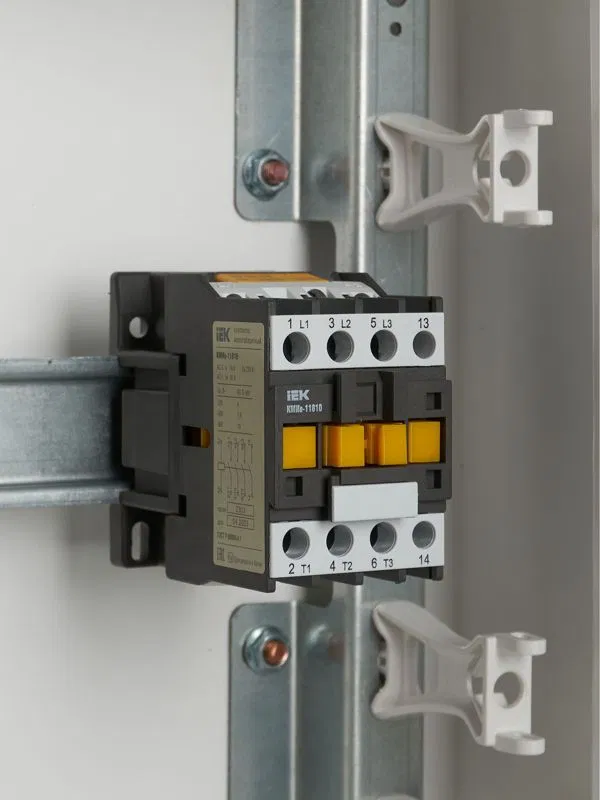

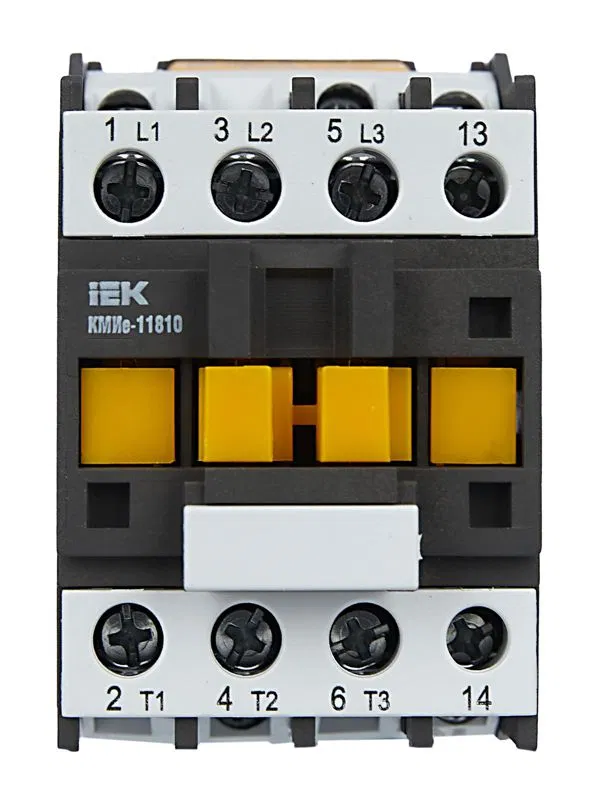

Contactor KMIe-11810 18A 230V/AC3 1NO GENERICA KKME11-018-230-10
SKU: KKME11-018-230-10
ETIM: EC000066
40,431 ₽
Get back 404 ₽ in points
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse
KMIe series compact contactors for load currents from 9 to 95 A are intended for starting, stopping, and reversing squirrel-cage induction motors with voltage up to 660 V (application category AC-3), as well as for remote control of lighting circuits, heating circuits, and various low-inductive loads (application category AC-1).
Application area of KMIe series compact contactors: controlling fans, pumps, air curtains, furnaces, crane beams, machine tools, lighting, and in automatic transfer switch (ATS) systems.
In terms of design and technical characteristics, KMIe series compact contactors comply with the requirements of international and Russian standards GOST R 50030.4.1-2002 (IEC 60947-4-1-2000).
Number of auxiliary NO contacts
1
Number of auxiliary break contacts
0
Number of main NO contacts
0
Number of main NC contacts
0
Modular design
No
Rated insulation voltage Ui - main circuit
660
Rated power at AC-3, 400 V
7.5 кВт
Rated control supply voltage Us AC at 50 Hz from
230 В
Rated control supply voltage Us DC from
Please provide the text you would like me to translate. В
Rated operational current Ie at AC-1, 400 V
Please provide the text you would like me to translate. А
Rated operating current Ie at AC-3, 400 V
18 А
Switch-on current type
Alternating current (AC)
IP protection rating
IP20
Main electrical circuit connection type
Screw connection
