EKF

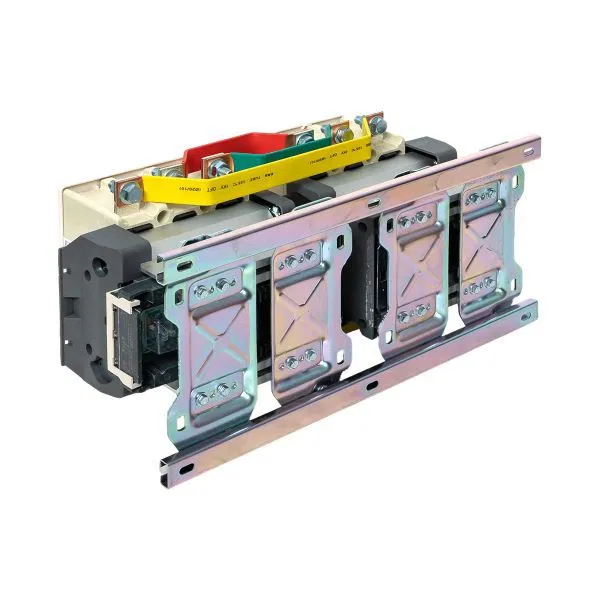

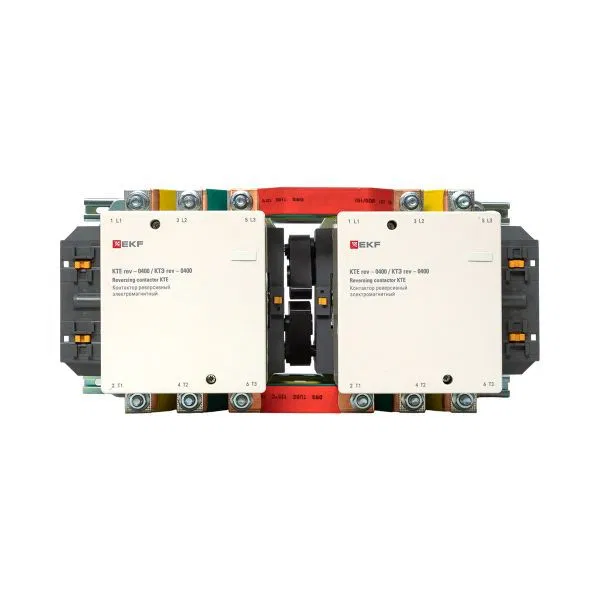

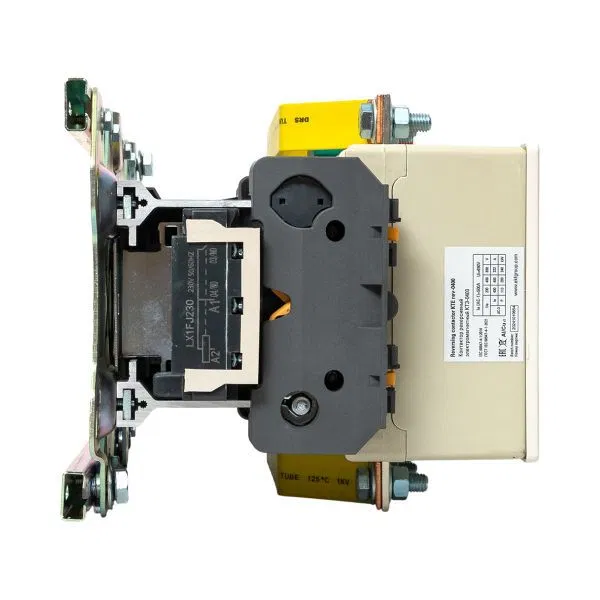

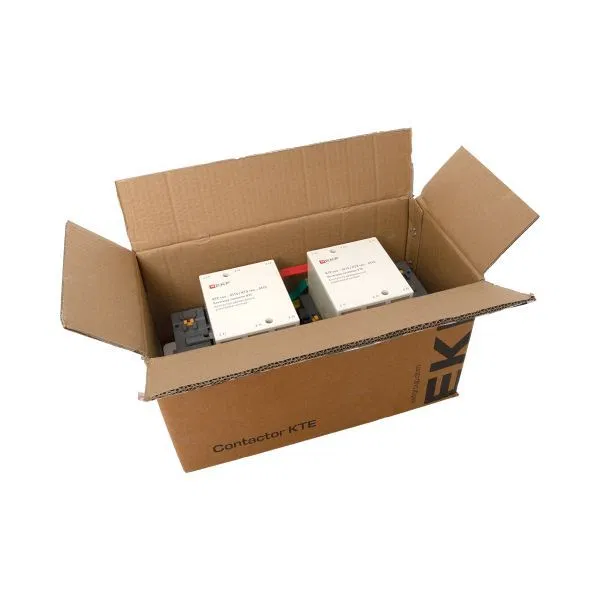

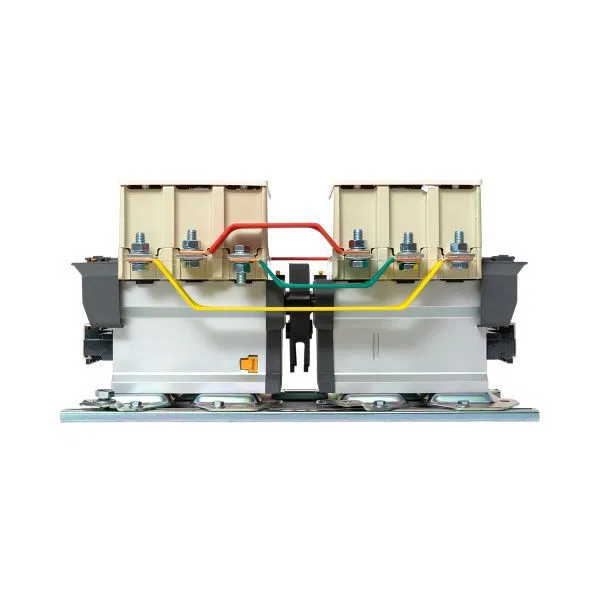

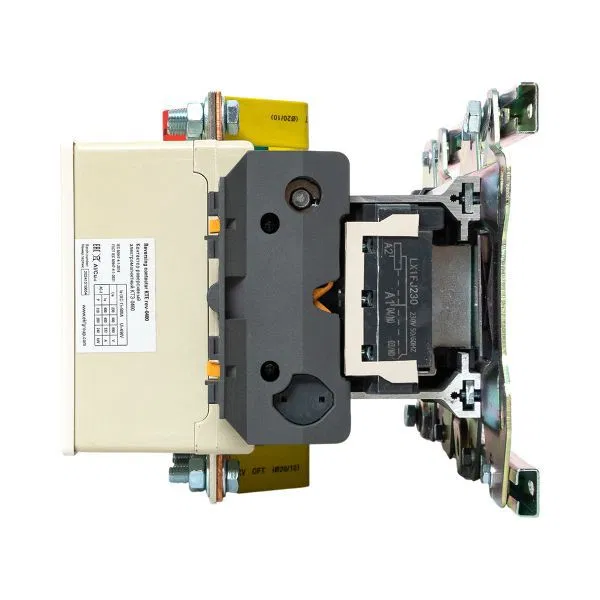

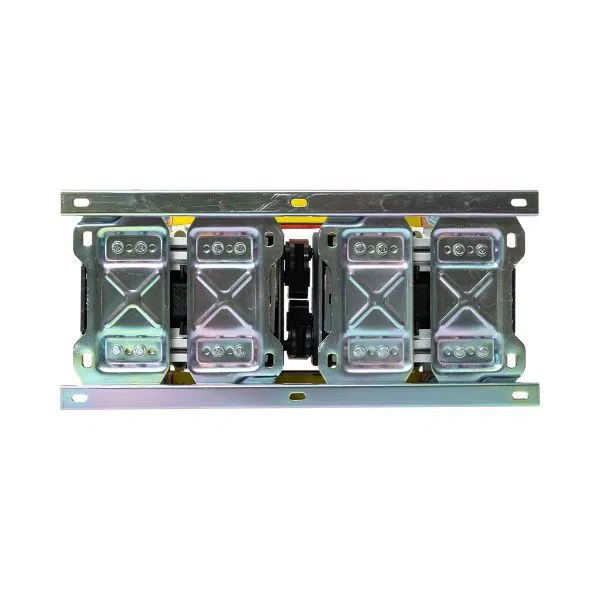

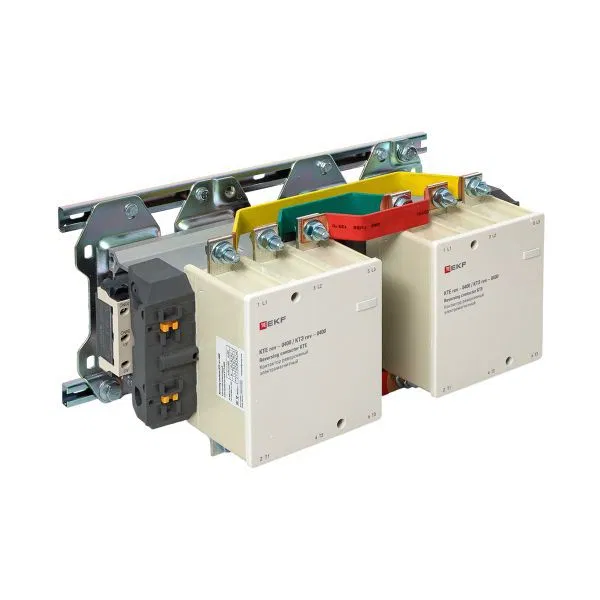

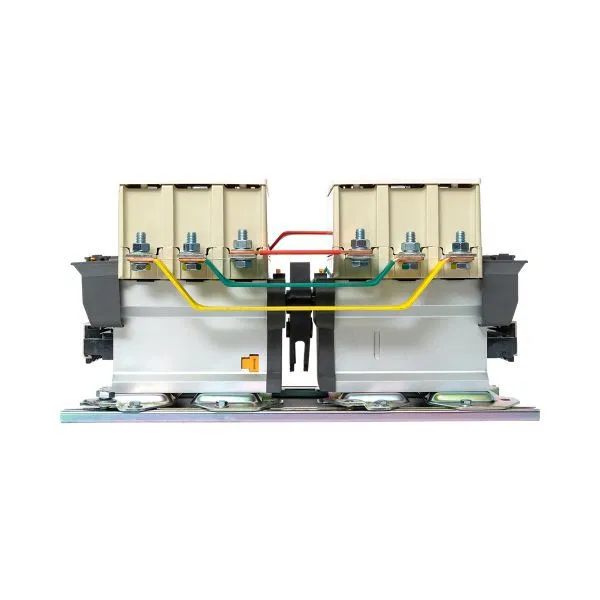

Contactor KTE reversible 400A 380V 2NO EKF PROxima ctr-b-r-400-380
SKU: ctr-b-r-400-380
ETIM: EC000066
99,629 ₽
Get back 996 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Number of auxiliary NO contacts
2
Number of auxiliary break contacts
0
Number of main NO contacts
3
Number of main NC contacts
0
Modular design
No
Rated switching power at AC-4, 400 V
74 кВт
Rated operational current Ie at AC-4, 400 V
148 А
Rated power at AC-3, 400 V
200 кВт
Rated operational power (NEMA)
126 кВт
Rated control supply voltage Us AC at 50 Hz up to
440 В
Rated control supply voltage Us AC at 50 Hz from
340...440 В
Rated control supply voltage Us DC up to
0 В
Rated control supply voltage Us DC from
0 В
Rated operational current Ie at AC-1, 400 V
500 А
Rated operating current Ie at AC-3, 400 V
400 А
Switch-on current type
AC (alternating)
Main electrical circuit connection type
Screw connection
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
