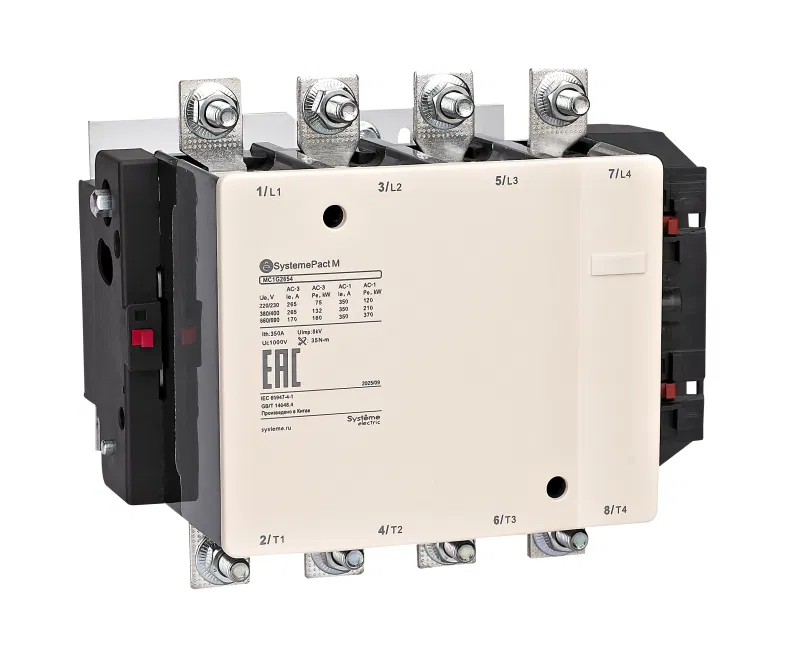

Contactor MC1G 4p (4NO) 400A AC1 cat. 240V AC SE MC1G3304U7 Systeme Electric
SKU: MC1G3304U7
ETIM: EC000066
141,093 ₽
Get back 1,410 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
SystemePact MC1G series contactor with rated current 400 A for AC1 / 330 A for AC3, 4P, control voltage 240 V AC.
SystemePact MC1G series four-pole contactors are primarily used for controlling active and low-inductance loads: in ATS schemes, lighting circuits, and for switching resistive heating elements.
Can be equipped with auxiliary contacts and mechanical interlocking.
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
0
Number of main NO contacts
4
Number of main NC contacts
0
Modular design
No
Control coil voltage
240 В
Rated control supply voltage Us AC at 50 Hz up to
240 В
Rated control supply voltage Us AC at 50 Hz from
240 В
Rated operational current Ie at AC-1, 400 V
400 А
Rated operating current Ie at AC-3, 400 V
330 А
Switch-on current type
Alternating current (AC)
Product/component type
Contactor
