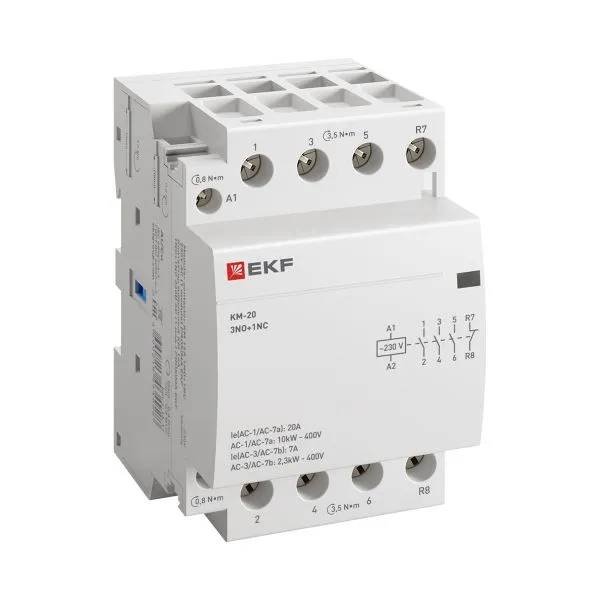

Modular contactor KM 20A 3NO+1NC 230V AC (3 mod.) PROXIMA EKF km-3-20-31
SKU: km-3-20-31
ETIM: EC001653
4185 ₽
Price list (incl. VAT):
5446 ₽
Preorder
Modular contactors consist of a contactor in a classic modular equipment housing. It consists of stationary contacts and moving contacts, which are fixed in the moving part of the magnetic system. The stationary part of the magnetic system is rigidly fixed in the KM housing. A spring prevents the contacts from closing. When voltage is applied to the control coil, a magnetic field arises in the contactor's magnetic system, which, overcoming the spring resistance, closes the magnetic system and closes the contacts. When voltage is removed from the control coil, the spring opens the contacts. Commutation with aluminum and copper wire is possible.
| Additional equipment possible | Yes |
| Mounting installation depth | 60 мм |
| Utilization category | 1 |
| Number of main NO contacts | 3 |
| Number of modules | 3 |
| Number of normally closed contacts (NC) | 1 |
| Number of normally closed (NC) contacts | 1 |
| Number of normally open contacts (NO) | 3 |
| Number of normally open (NO) contacts | 3 |
| Number of main NC contacts | 1 |
| Maximum lamp power | 1000 Вт |
| Maximum fluorescent lamp load | 720 В.А |
| Maximum fluorescent lamp load (two-lamp circuit) | 3600 В.А |
| Maximum fluorescent lamp load (with parallel compensation) | 540 В.А |
| Material | Plastic |
| Rated power at AC-3, 400 V | 10 кВт |
| Rated control supply voltage Us AC at 50 Hz up to | 230 В |
| Rated control supply voltage Us AC at 50 Hz from | 230...230 В |
| Rated control circuit AC supply voltage Us at 60 Hz to | 230 В |
| Rated control circuit AC supply voltage Us at 60 Hz from | 230...230 В |
| Rated voltage at | 400 В |
| Rated voltage from | 230...400 В |
| Rated control circuit voltage to | 253 В |
| Rated control circuit voltage from | 184...253 В |
| Rated operational current | 20 А |
| Rated operating current Ie at AC-3, 400 V | 20 А |
| Slider for manual switch | No |
| Switch-on current type | AC (alternating) |
| Control circuit voltage current type | AC (alternating) |
| Operating voltage current type | AC (alternating) |
| IP protection rating | IP20 |
| Main electrical circuit connection type | Screw connection |
| Width in modular units | 3 |
