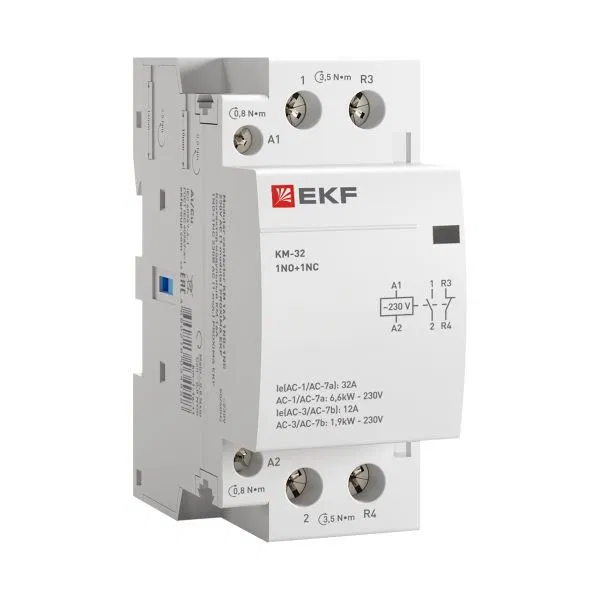

Modular Contactor KM 32A 1NO+1NC 230V AC (2 mod.) PROXIMA EKF km-2-32-11

SKU: km-2-32-11

ETIM: EC001653

4743 ₽

Price list (incl. VAT): 4629 ₽

Available August 7

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
	Manufacturer warehouse (Ногинск) Available	97	шт	August 7	clarifying

Select a warehouse to order

Description Specifications Reviews

Additional equipment possible	Yes
Mounting installation depth	60 мм
Utilization category	1
Number of main NO contacts	1
Number of modules	2
Number of normally closed contacts (NC)	1
Number of normally closed (NC) contacts	1
Number of normally open contacts (NO)	1
Number of normally open (NO) contacts	1
Number of main NC contacts	1
Maximum lamp power	3000 Вт
Maximum fluorescent lamp load	920 В.А
Maximum fluorescent lamp load (two-lamp circuit)	5068 В.А
Maximum fluorescent lamp load (with parallel compensation)	990 В.А
Material	Plastic
Rated power at AC-3, 400 V	4 кВт
Rated control supply voltage Us AC at 50 Hz up to	230 В
Rated control supply voltage Us AC at 50 Hz from	230 В
Rated control circuit AC supply voltage Us at 60 Hz to	230 В
Rated control circuit AC supply voltage Us at 60 Hz from	230 В
Rated voltage at	400 В
Rated voltage from	230 В
Rated control circuit voltage to	253 В
Rated control circuit voltage from	184 В
Rated operational current	32 А
Slider for manual switch	No
Switch-on current type	AC (alternating)
Control circuit voltage current type	Alternating current (AC)
Operating voltage current type	Alternating current (AC)
IP protection rating	IP20
Main electrical circuit connection type	Screw connection
Width in modular units	2
