EKF

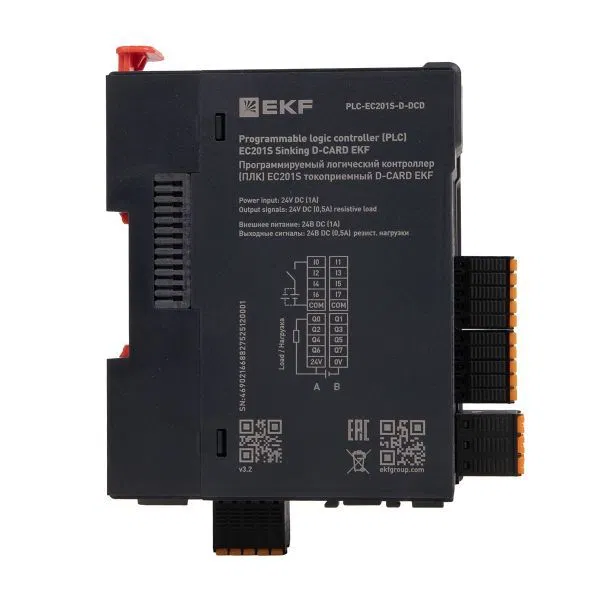

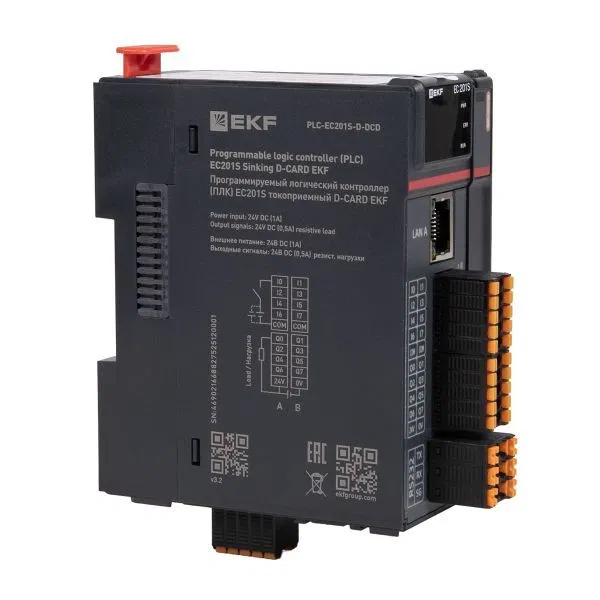

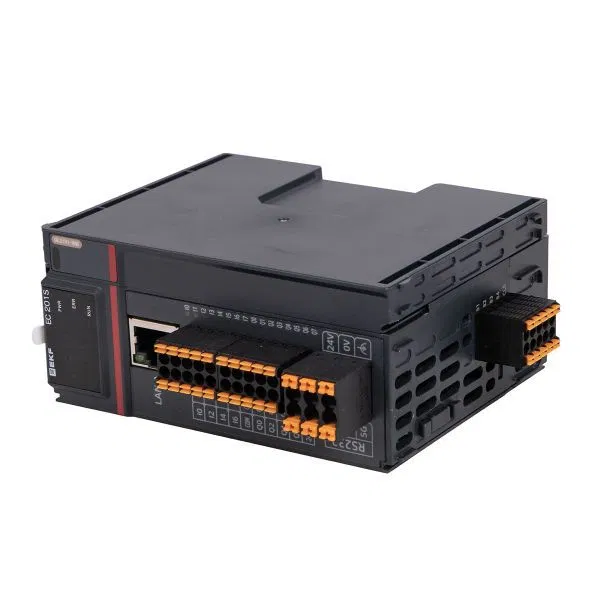

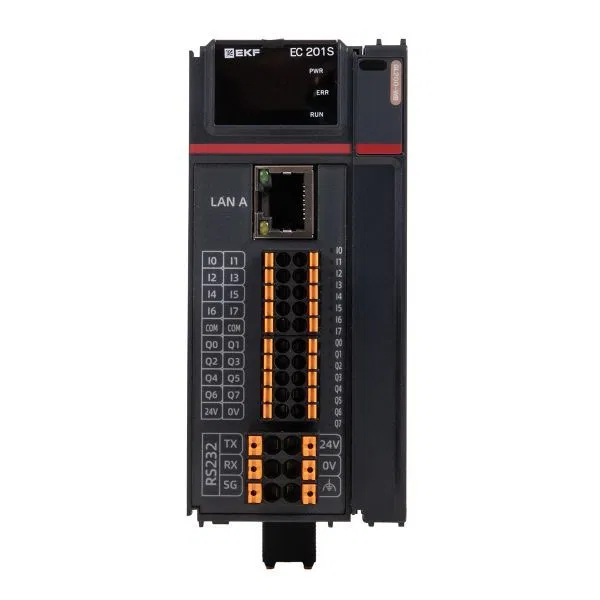

Programmable Logic Controller (PLC) EC201S current collector D-CARD EKF PLC-EC201S-D-DCD
SKU: PLC-EC201S-D-DCD
ETIM: EC000236
23,655 ₽
Get back 236 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
SIL in accordance with IEC 61508
2
Per IEC 1131-3 (DIN EN 61131-3)
Yes
Weight
.25 кг
Rack mounting possible
Yes
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Front mounting possible
No
Program memory expansion possible
Yes
Processing time (1K, binary instruction)
.008 мс
Height
120 мм
Depth
100.5 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Design
Modular
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of HW wireless interfaces
0
Number of HW PROFINET interfaces
1
Number of HW USB interfaces
1
Number of industrial Ethernet HW interfaces
1
Number of HW parallel interfaces
0
Number of HW serial RS-232 interfaces
1
Number of HW serial RS-422 interfaces
0
Number of HW serial RS-485 interfaces
4
Number of HW serial TTY interfaces
0
Number of analog inputs
0 шт.
Number of analogue outputs
0 шт.
Number of other HW hardware interfaces
0
Number of relay outputs
0
Number of digital inputs
8 шт.
Number of digital outputs
8 шт.
Component, system accessory
No
Maximum power consumption
10 Вт
Maximum number of addressable analogue inputs/outputs
0
Maximum number of addressable digital inputs/outputs
8
DC supply voltage to
33 В
DC supply voltage from
19.2 В
Memory capacity
4000 Кб
RAM
8 Гб
AS-Interface Safety at Work protocol support
No
ASI protocol support
Yes
CAN protocol support
Yes
Data Highway protocol support
No
DeviceNet protocol support
Yes
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
Yes
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
Yes
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
Yes
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
Yes
Suitable for security systems
No
Operating temperature
55 град.C
Operating temperature from
-20 град.C
Bluetooth radio standard
No
GPRS radio standard
No
GSM radio standard
No
UMTS radio standard
No
WLAN 802.11 radio standard
No
Supply voltage current type
Direct current (DC)
With display
Yes
With optical interface
No
IO-Link standard
Yes
Resistance to overloads
Yes
Processor clock frequency
1200 МГц
Performance level per EN ISO 13849-1
Level c
Width
38 мм
