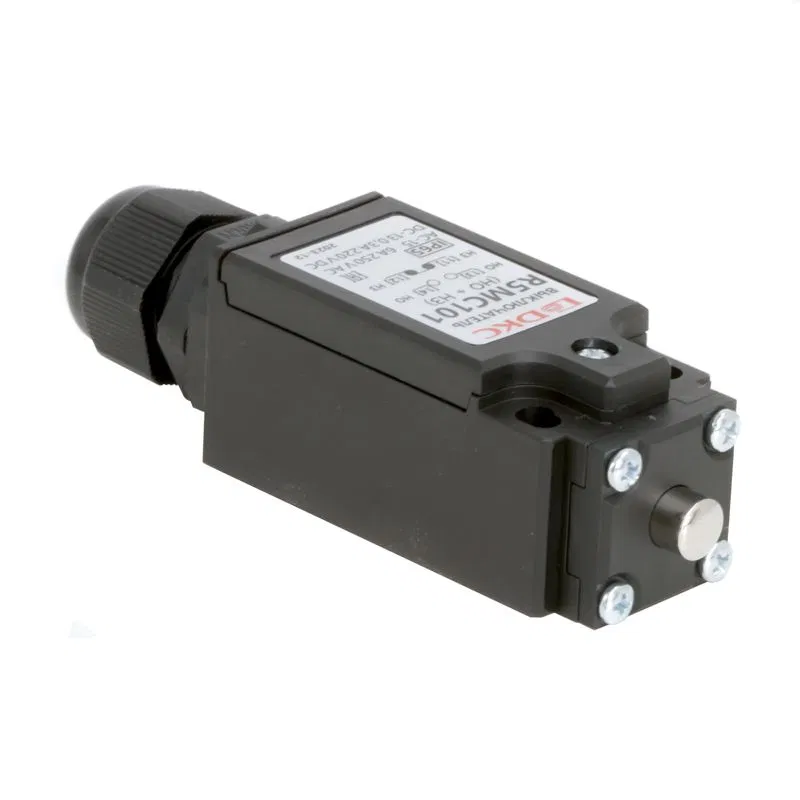

Limit switch with two contacts, normally open + normally closed (NO+NC), with button RAM block R5MC101 DKC
SKU: R5MC101
ETIM: EC000030
980 ₽
Get back 9 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
The limit switch is used to organize the lighting system inside the enclosure. The limit switch has 1 normally open and 1 normally closed contact. Supplied in a version with a button.
Without self-return (with latching)
No
Control element alignment
Roller cam straight
Interface version
No (without)
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of normally closed (NC) contacts
1
Number of normally open (NO) contacts
1
Housing design
Cuboid
Housing complies with standards
Other
Housing material
Plastic
Housing material
Plastic
Rated operational current Ie at AC-15, 125 V
5 А
Rated operational current Ie at AC-15, 230V
5 А
Rated operational current Ie at AC-15, 24 V
5 А
Rated operating current Ie at DC-13, 125 V
.4 А
Rated operating current Ie at DC-13, 230 V
.2 А
Rated operating current Ie at DC-13, 24 V
5 А
Suitable for security systems
Yes
Interface protocol for safety communication
None
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-10 град.C
Manual control
No
With status indication
No
IP protection rating
IP65
Connection type
Metric cable gland
Control element type
Dome pushbutton
Switching function
Quick-break switch
Electronic output
No
