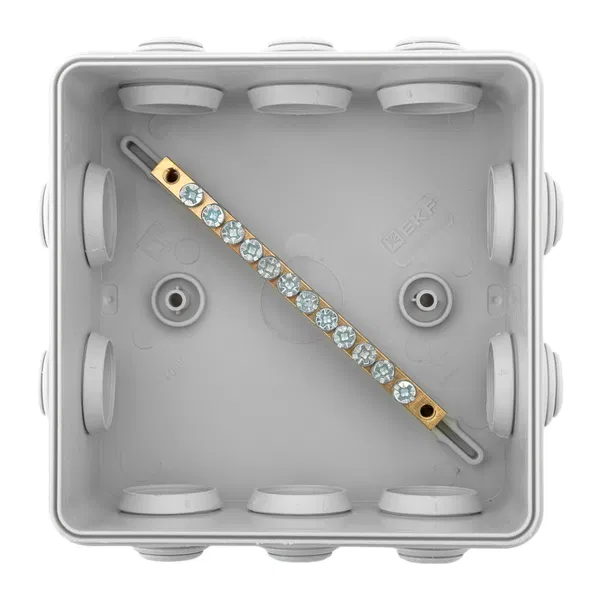

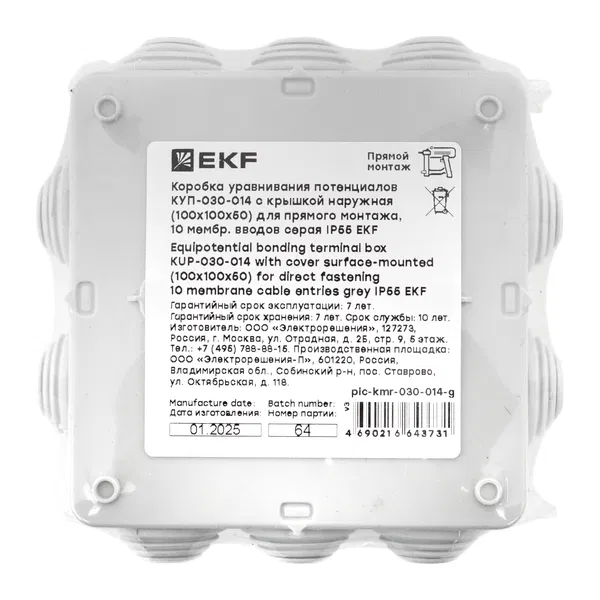

Equipotential bonding box KUP-030-014 with cover, external (100x100x50) for direct mounting, 10 membrane entries grey IP55 EKF plc-kmr-030-014-g
SKU: plc-kmr-030-014-g
ETIM: EC002600
586 ₽
Get back 5 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Rear entry
No
Explosion-proof verified
No
Housing entry type
Stepped membrane gland
All-weather
Yes
Depth
50 мм
Length
100 мм
Length
100 мм
For gas explosion hazardous areas
No (without)
For pipe diameters
20 mm
For dust explosion protection zone (EU ATEX directives)
No (without)
For installation in ground
No
For underwater installation
No
Protective surface coating
Other
Design
Junction box
Number of inputs, entries
10
Casting compound included
No
Cast
Yes
Maximum conductor cross-section
360 кв.мм
Material
Plastic
Halogen-free
Yes
Rated insulation voltage Ui
400 В
Circuit integrity fire resistance (per DIN 4102-12)
E 30
Equipment
Equipotential bonding
Sealable
Yes
Transparent cover
No
With protective shield
No
Joinable in a row
No
Mounting method
Wall and ceiling mounting
Ingress protection (NEMA)
1
IP protection rating
IP55
Operating temperature to
40 град.C
Operating temperature from
-20 ... +40 град.C
Cover type
Mounting cover
Cover fixing
Snap-in
Shape
Square
Colour
Grey
Color
Grey
Width
100 мм
