Side entry cover EMAS EBM06GU10

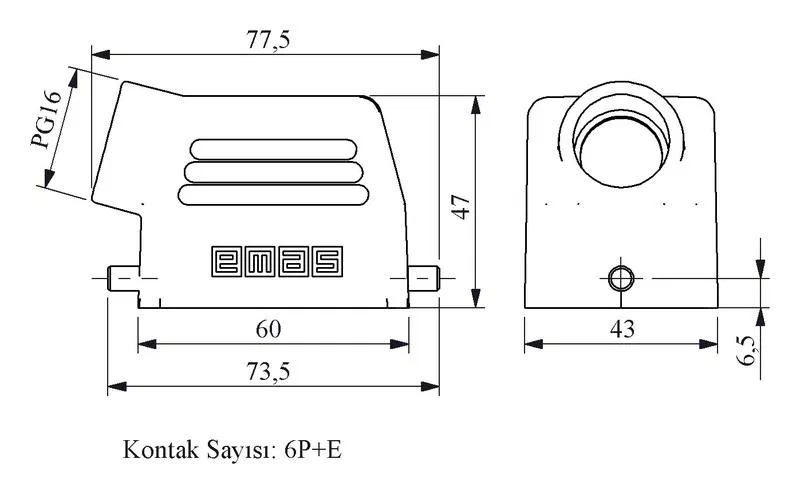

6-pole housing, cable mounting EBM06GU10, side entry Protection rating IP65 Housing material Metal Housing fasteners Number of fasteners Mounting method Cable mounting Number of entries One (PG16) Number of contacts 6 PIN (6+PE) Rated operating current (Ie) 16 A Mechanical durability (min. number of cycles) not less than 500 Electrical durability (min. number of cycles) not less than 100 Acclimatization frequency (on/off/hour) Elec. 120 / Mech. 240 Rated insulation voltage (Ui) 690V Rated impulse voltage (Uimp) 6 kV Dielectric strength (housing-contact) 1 890 V AC Dielectric strength (contact-contact) 3 000V AC Insulation resistance 10 MΩ min. (500V DC) Temperature range from - 40 / + 125 °C Contact material AgNi (silver-nickel) Cable cross-section 0.5-2.5 mm² EMAS industrial connectors designed for use in industry, construction, and assembly of electrical equipment, as well as for organizing temporary networks and connecting portable consumers. Advantages of industrial connectors: • Wide range of connectors • Hermeticity in the closed position IP65 • Easy installation using a fixing screw • Modular type housing and central part • Locking double handles with rollers • Electrostatic coating
