Perforated sheet tray 100x24 L2000 steel 1.2mm NL-10P1.87 U3 SOEMI N0113112321 SOEMI St.Oskol

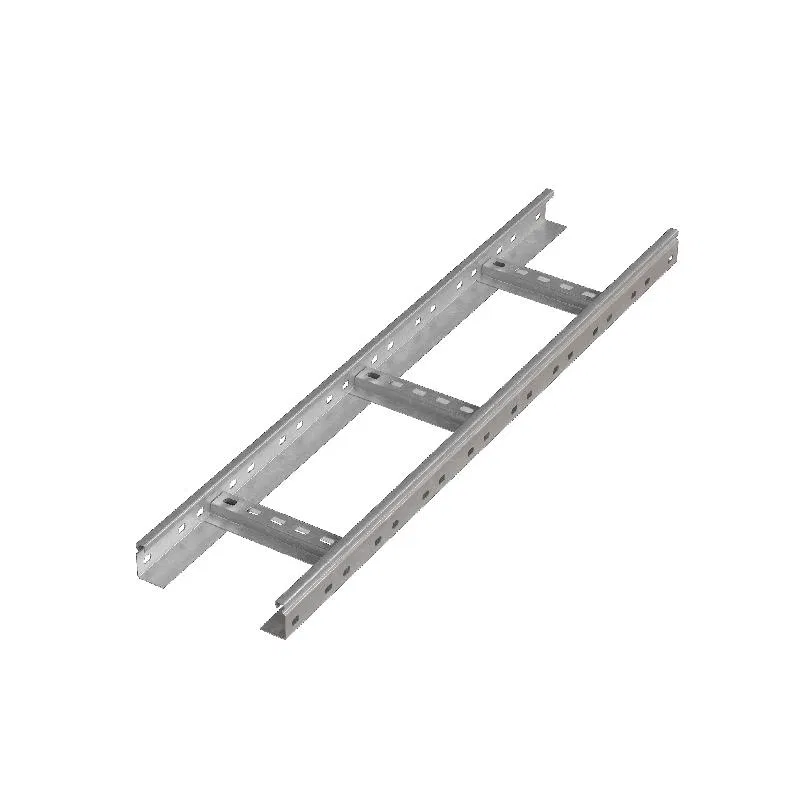

Ladder-type trays consist of two sides (stringers, gutters) connected by crossbars (strips). As a result, a structure similar to a ladder is formed, which is where their name originates. As a rule, the design of ladder trays provides higher load capacity compared to sheet trays due to a greater number of reinforcing ribs, at approximately equal weight and dimensions. Ladder trays are designed for open installation of cables and cable lines in residential buildings, office centers, shopping complexes, and various types of industrial facilities. The design of ladder trays ensures high load capacity with low self-weight. Tray splicing is carried out via a 130 mm "male-female" telescopic connection. When using connectors, trays can also be spliced "butt-to-butt". M8 threaded fasteners are used for connection. If a change in direction or branching of the route is required, shaped elements and various accessories are used. Ladder cable trays can be laid in both horizontal and vertical directions. If a vertical ladder tray is used, such a structure is called a cable riser. During installation, the cable riser is often attached to building or technological structures. In addition, the design of cable risers allows for reliable fixation of the cables (wires) laid in them. This is ensured by fastening them with clamping clips and other elements. This ladder tray is made of: Steel with coating: priming. It has the following dimensions: metal thickness 1.2 mm, length – 2000 mm, height – 24 mm. Corresponds to climatic execution: U3. High standard of product quality, flexible production, ensuring on-time delivery of any volume! Straight tray NL10-P1.87 U3 (h=24 mm, s=1.2 mm) is manufactured according to TU 3449-017-05774835-2007.
