EKF

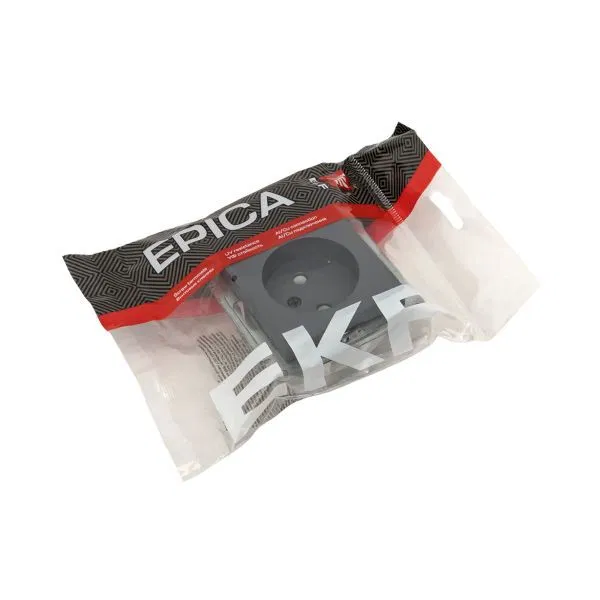

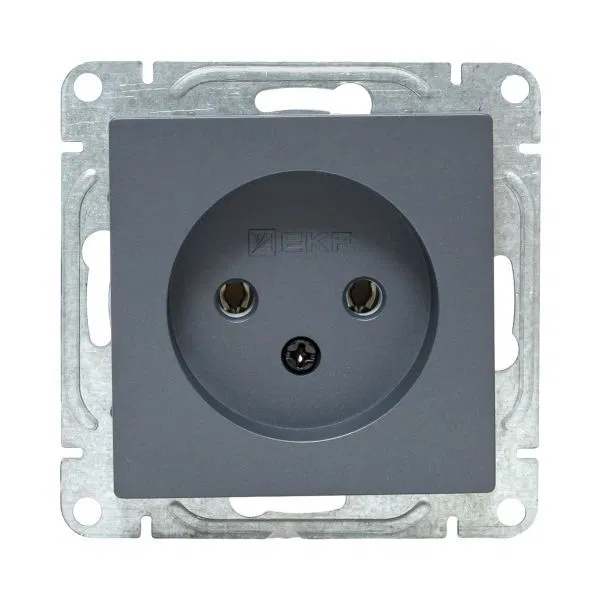

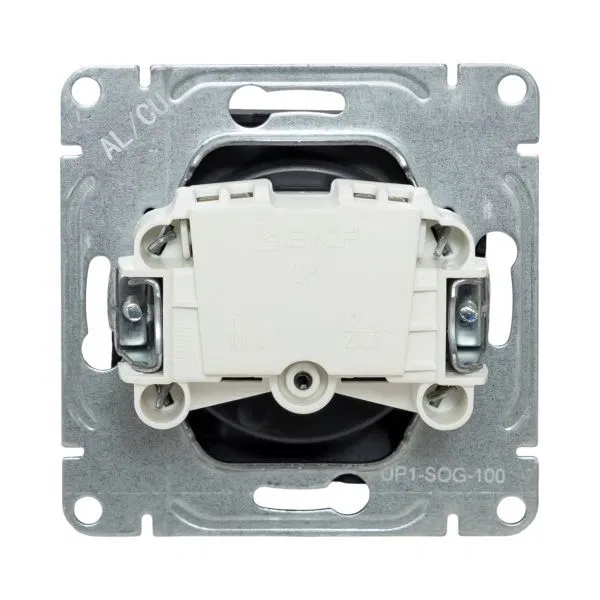

Socket mechanism, 16A, without grounding, without shutters, graphite Epika EKF UP1-SOG-100
SKU: UP1-SOG-100
ETIM: EC000125
343 ₽
Get back 3 ₽ in points
Analogues by specifications
Stock by warehouse
Single socket EKF Epika collection in basic configuration is a reliable and stylish solution for connecting electrical appliances in premises where enhanced protection is not required. The housing is made of durable plastic resistant to ultraviolet radiation, which guarantees durability and preservation of appearance. The product is compatible with copper and aluminum cable and has screw terminals. The screws have the same slot, so bit replacement is not required during installation. For harmonious interior design, it is recommended to use with a frame from the same collection.
Special power supply
No special power supply required
Material type/grade
Thermoplastic
Device height
71 мм
Device depth
35.1 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
No
Overvoltage protection
No
Protective surface coating
Untreated
Round protective grounding contact (pin)
No
Insulated installation
Yes
Design
Without earthing contact
Number of seats
1
Number of phases
1
Material
Plastic
Extraction mechanism
No
Minimum depth of recessed mounting box
35.1 мм
Cable trunking installation
No
Halogen-free
Yes
Rated voltage
230 В
Rated current
16 А
Support ring
Yes
Labelling surface
No
Suitable for ingress protection IP
IP20
Transparent
No
With lock
No
With hinged cover
No
With signal lamp
No
With low-current fuse
No
With through-channel function
No
With central insert
No
Symbols/indication
Without marking/printing
With shutters (touch protection)
No
Mounting method
Internal / concealed
Connection method
Screw clamp/terminal
Configuration type
Mechanism with cover plate
Fastening type
By expansion (tabs) and screws
Surface type
Matte
Impact resistance
IK01
Color
Grey
Frequency at
60 Гц
Frequency from
50...60 Гц
Device width
71 мм
