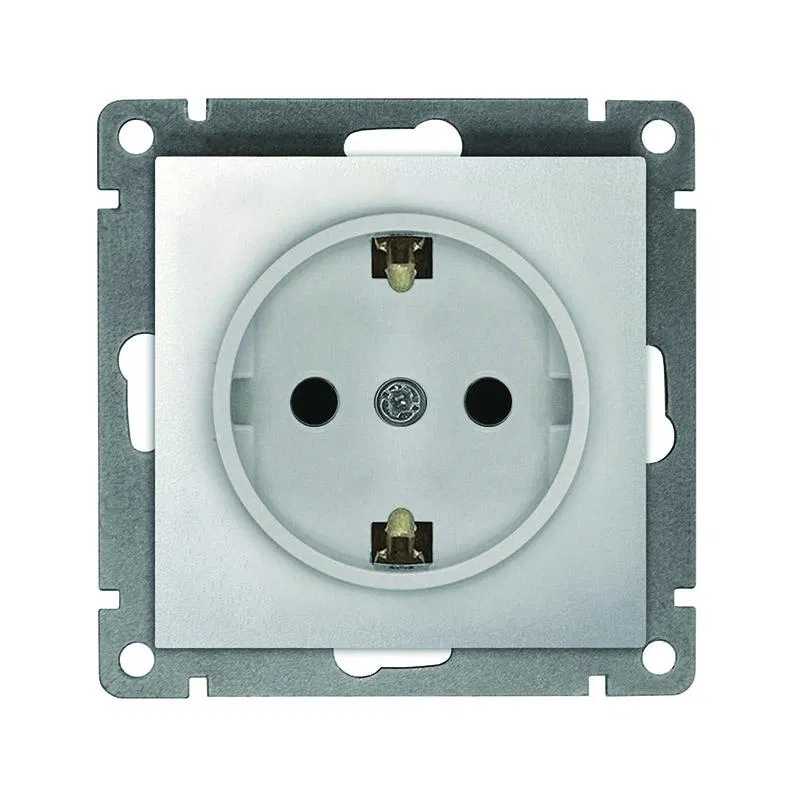

Socket outlet mechanism, 16A, without earthing, with shutters, aluminium Epika EKF UP1-SOA-101

SKU: UP1-SOA-101

ETIM: EC000125

201 ₽

Price list (incl. VAT): 377 ₽

Available August 4

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
	Manufacturer warehouse Available	1593	шт	August 4	August 4

Select a warehouse to order

Description Specifications Reviews

Special power supply	No special power supply required
RAL number (similar)	7 047
Material type/grade	Thermoplastic
Device height	71 мм
Device depth	35.1 мм
Differential current protection	No
For heavy duty (per VDE)	No
Contact protection	No
Overvoltage protection	No
Protective surface coating	Untreated
Round protective grounding contact (pin)	No
Insulated installation	Yes
Design	Without earthing contact
Number of seats	1
Number of phases	1
Material	Plastic
Extraction mechanism	No
Minimum depth of recessed mounting box	35.1 мм
Cable trunking installation	No
Halogen-free	Yes
Rated voltage	230 В
Rated current	16 А
Support ring	Yes
Labelling surface	No
Suitable for ingress protection IP	IP20
Transparent	No
With built-in USB charger	No
With power switch	No
With lock	No
With orientation lighting	No
With hinged cover	No
With illumination (mains voltage indication)	No
With signal lamp	No
With low-current fuse	No
With through-channel function	No
With central insert	No
Symbols/indication	Without marking/printing
With shutters (touch protection)	Yes
Mounting method	Internal / concealed
Connection method	Screw clamp/terminal
Configuration type	Mechanism with cover plate
Fastening type	By expansion (tabs) and screws
Surface type	Matte
Impact resistance	IK01
Colour	Aluminum
Color	Aluminum
Frequency at	60 Гц
Frequency from	50...60 Гц
Device width	71 мм
