EKF

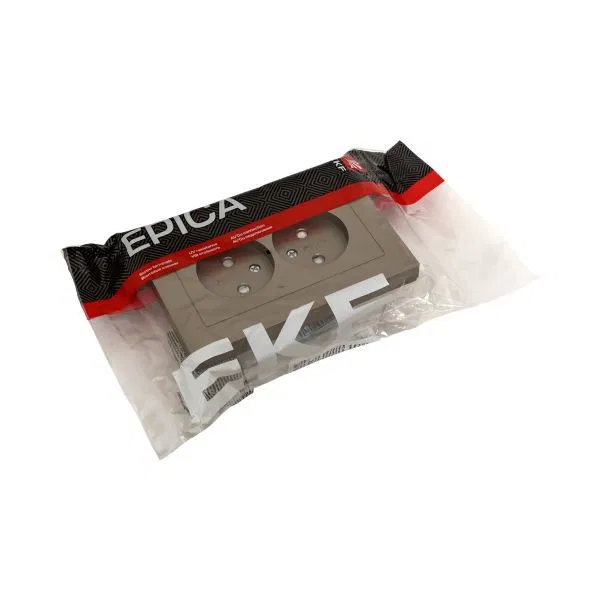

Double socket mechanism, 16A, without earthing, with shutters, with frame, champagne Epika EKF UP1-SOC-201
SKU: UP1-SOC-201
ETIM: EC000125
241 ₽
Get back 2 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
EKF Epica collection double socket without grounding and with safety shutters — a reliable and stylish solution for connecting electrical appliances.
Safety shutters on the contacts prevent accidental contact with live parts, ensuring the safety of children and pets.
The housing is made of durable plastic resistant to UV radiation, which guarantees longevity and preservation of appearance.
The product is compatible with copper and aluminum cable and has screw terminals. The screws have the same slot, so bit replacement is not required during installation.
The device can be installed both vertically and horizontally.
Comes with a color-matched frame and is fully ready for installation.
Special power supply
No special power supply required
Material type/grade
Thermoplastic
Device height
83 мм
Device depth
38.1 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
No
Overvoltage protection
No
Protective surface coating
Untreated
Round protective grounding contact (pin)
No
Insulated installation
Yes
Design
Without earthing contact
Number of seats
2
Number of phases
1
Material
Plastic
Extraction mechanism
No
Minimum depth of recessed mounting box
38.1 мм
Cable trunking installation
No
Halogen-free
Yes
Rated voltage
230 В
Rated current
16 А
Support ring
Yes
Labelling surface
No
Suitable for ingress protection IP
IP20
Transparent
No
With lock
No
With hinged cover
No
With signal lamp
No
With low-current fuse
No
With through-channel function
No
With central insert
No
Symbols/indication
Without marking/printing
With shutters (touch protection)
Yes
Mounting method
Internal / concealed
Connection method
Screw clamp/terminal
Configuration type
Assembled with housing/frame
Fastening type
By expansion (tabs) and screws
Surface type
Matte
Impact resistance
IK01
Color
Champagne
Frequency at
60 Гц
Frequency from
50...60 Гц
Device width
124 мм
