ONI (Группа IEK)

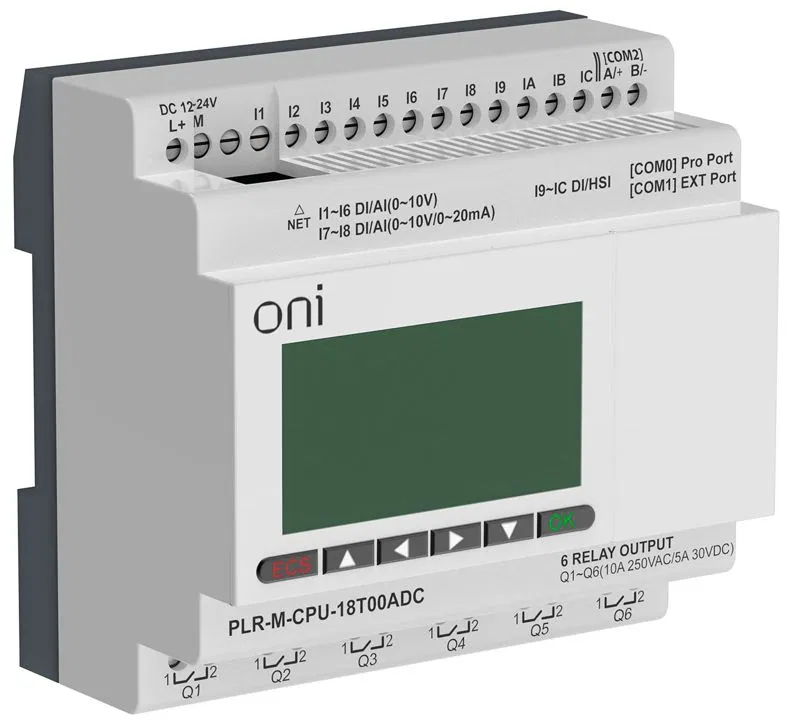

Programmable logic controller (micro PLC) PLR-M. CPU DI12/DO06(T) 24V DC ONI PLR-M-CPU-18T00ADC
SKU: PLR-M-CPU-18T00ADC
ETIM: EC000236
51,821 ₽
Get back 518 ₽ in points
Analogues by specifications
No description available
Rack mounting possible
No
Wall/surface mounting possible
Yes
Busbar mounting possible
Yes
Front mounting possible
No
Program memory expansion possible
No
Height
90 мм
Height
90 мм
Depth
58 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Design
Modular
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of industrial Ethernet HW interfaces
1
Number of HW serial RS-232 interfaces
1
Number of HW serial RS-485 interfaces
1
Number of analog inputs
8 шт.
Number of analogue outputs
0 шт.
Number of relay outputs
6
Number of digital inputs
12 шт.
Number of digital outputs
6 шт.
Component, system accessory
No
Maximum number of timers
0
Maximum number of addressable analogue inputs/outputs
102
Maximum number of addressable digital inputs/outputs
174
AC supply voltage 50Hz from
Please provide the text you would like me to translate. В
DC supply voltage to
28.8 В
DC supply voltage from
20.4 В
Memory capacity
8.192 Кб
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
Yes
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
Yes
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
Yes
Suitable for security systems
No
Bluetooth radio standard
No
GPRS radio standard
No
GSM radio standard
No
UMTS radio standard
No
WLAN 802.11 radio standard
No
Supply voltage current type
Direct current (DC)
With display
Yes
With optical interface
No
IO-Link standard
No
Resistance to overloads
No
Width
95 мм
