EKF

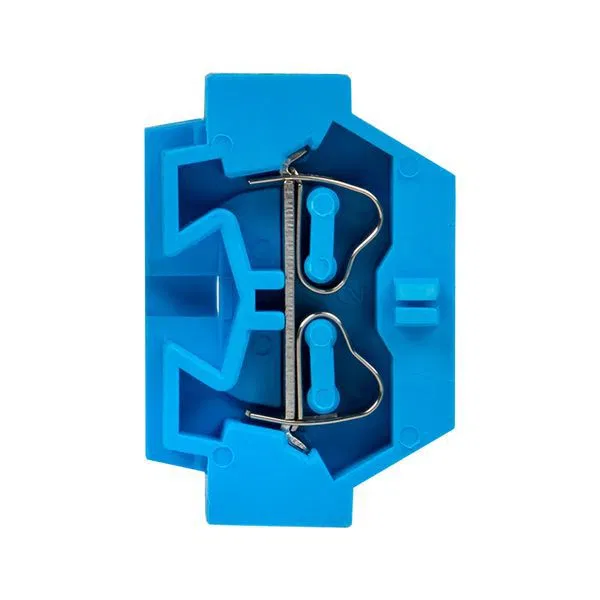

Mini-terminal STB-2.5 24A (200 pcs) blue EKF PROxima stb-m-2.5-blue
SKU: stb-m-2.5-blue
ETIM: EC000897
92,414 ₽
Get back 924 ₽ in points
Order multiple: 4600 шт
Analogues by specifications
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
18 мм
Length
18 мм
Length
18 мм
Insulated
Yes
Flammability class of insulation material in accordance with UL57
Other
Number of terminals per level
2
Number of poles
1
Number of levels
1
Number of bridged terminals
2
Marking
No (without)
Housing insulation material
Polyamide (PA)
Rated voltage
500 В
Rated current In
24 А
Closing plate can be fitted if required
Yes
Operating temperature
75 град.C
Operating temperature from
-40...75 град.C
Connection position
Side
Core cross-section
2.5 кв.мм
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
.08 кв.мм
Solid conductor cross-section to
2.5 кв.мм
Solid conductor cross-section from
0.08...2.5 кв.мм
Mounting method
DIN rail (O-profile) 35 mm
Electrical connection type 1
Spring clamp connection
Color
Blue
Colour
Blue
Width/connection pitch
6 мм
