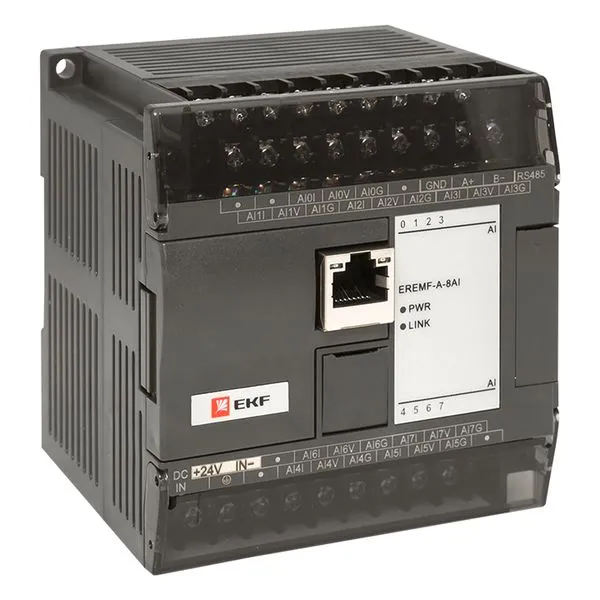

Analog input module EREMF 8 PRO-Logic EKF (without verification) EREMF-A-8AI
SKU: EREMF-A-8AI
ETIM: EC001420
12,542 ₽
Get back 125 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
PRO-Logic I/O modules are designed for creating automatic control and monitoring systems. The devices are used as remote expansion modules for PRO-Logic PLCs, signal I/O devices for PRO-Screen operator panels, signal I/O devices when connecting to SCADA systems and other high-level software, signal I/O devices for interoperability with any equipment supporting Ethernet or RS-485 interfaces and Modbus TCP/RTU/ASCII protocols.
SIL in accordance with IEC 61508
2
Analogue input 0-1 V
No
Analogue input 0-10 V
Yes
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
Yes
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
Yes
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
No
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Weight
0.45 кг
Wall/surface mounting possible
Yes
Busbar mounting possible
Yes
Input channel scan time
110 мс
Resistance input
No
Resistance thermometer input
No
Thermocouple input
No
Input voltage
Yes
Input current
Yes
Height
95 мм
Height
95 мм
Galvanic isolation
Yes
Depth
84 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Accuracy class
0.2 %
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
1
Number of HW serial RS-485 interfaces
1
Number of analog inputs
8 шт.
Number of analogue outputs
0 шт.
Number of 0(4)-20 mA analogue outputs
0
Number of 0-10V analog outputs
0
Configurable analogue inputs
Yes
Configurable input signal
Yes
Maximum power consumption
2.64 Вт
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
Yes
TCP/IP protocol support
Yes
OWEN protocol support
No
Suitable for security systems
No
Operating temperature
55 град.C
Operating temperature from
0...55 град.C
Analogue input separation
12 бит
Supply voltage current type
DC (direct)
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
No
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
No
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
No
Resistance thermometer Pt1000
No
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
No
Thermocouple type J
No
Thermocouple type K
No
Thermocouple type L
No
Thermocouple type n
No
Thermocouple type r
No
Thermocouple type S
No
Type T thermocouple
No
Connection type
Screw connection
Performance level per EN ISO 13849-1
Level c
Width
93 мм
