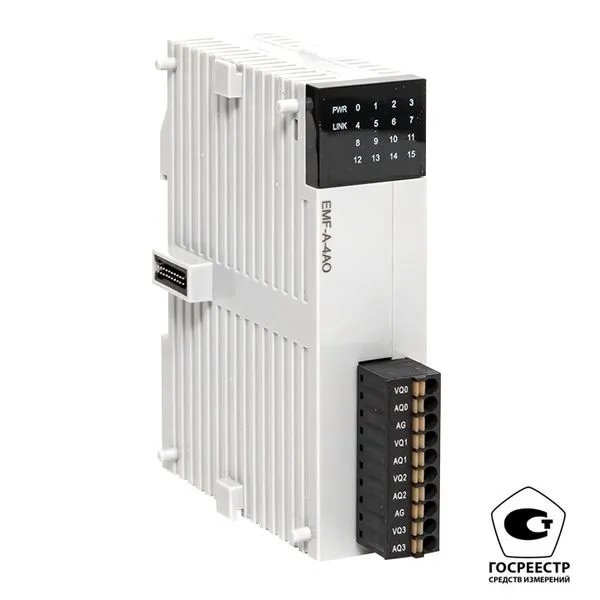

Analogue Output Module REMF 4 PRO-Logic EKF (with calibration) REMF-A-4AO-V
SKU: REMF-A-4AO-V
ETIM: EC001420
8,278 ₽
Get back 82 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
PRO-Logic I/O modules with RS-485 interface are designed to increase the number of available input and output signals for devices of any manufacturer, including PRO-Relay, PRO-Logic master modules, and PRO-Screen operator panels. They connect via the RS-485 interface (Protocol - Modbus RTU). They are configured in the PRO-Logic master development environment (Software is available for download in the "Documentation and Software" section of any article). Supply voltage: 24 V DC. Built-in interfaces: 1 x RS-485. PRO-Logic devices are widely used in the following areas: Power supply and distribution (ATS), heating, ventilation and air conditioning, water supply, water treatment and sewage, lighting, conveyors, filling and packaging machines, automatic dosing systems, machine tools, furnaces, boilers, and other technological and production processes.
SIL in accordance with IEC 61508
2
Analogue output 0(4)-20 mA
Yes
Analog output 0-1V
No
Analogue output 0-10 V
Yes
Weight
0.32 кг
Wall/surface mounting possible
Yes
Busbar mounting possible
Yes
Height
95 мм
Output, by voltage
Yes
Output, current
Yes
Galvanic isolation
Yes
Depth
84 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Accuracy class
0.2 %
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW serial RS-485 interfaces
1
Number of analog inputs
0 шт.
Number of analogue outputs
4 шт.
Number of 0(4)-20 mA analogue outputs
4
Number of 0-1V analog outputs
0
Number of 0-10V analog outputs
4
Configurable analogue outputs
Yes
Configurable output signal
Yes
Maximum power consumption
3.6 Вт
Analogue output 0(4)-20 mA supply voltage from
20.4...28.8 В
Analog output 0-10V supply voltage from
20.4...28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
Yes
TCP/IP protocol support
No
OWEN protocol support
No
Suitable for security systems
No
Operating temperature from
0...55 град.C
Analog output separation
12 бит
Supply voltage current type
DC (direct)
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Memory type
Flash
Connection type
Screw connection
Performance level per EN ISO 13849-1
Level c
Width
70 мм
