EKF

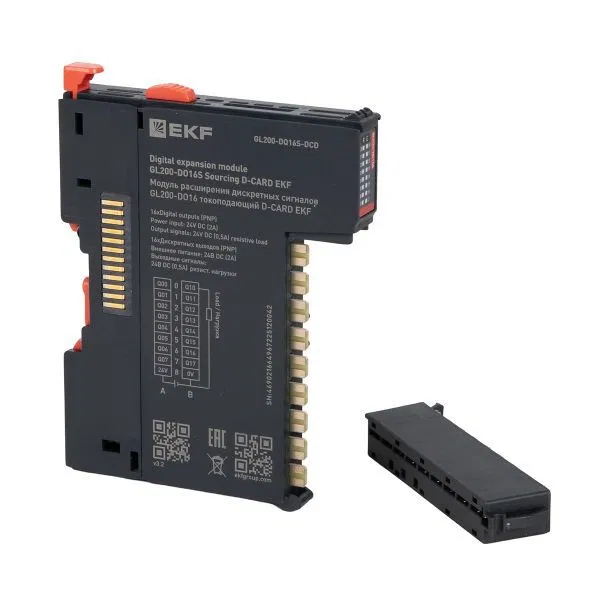

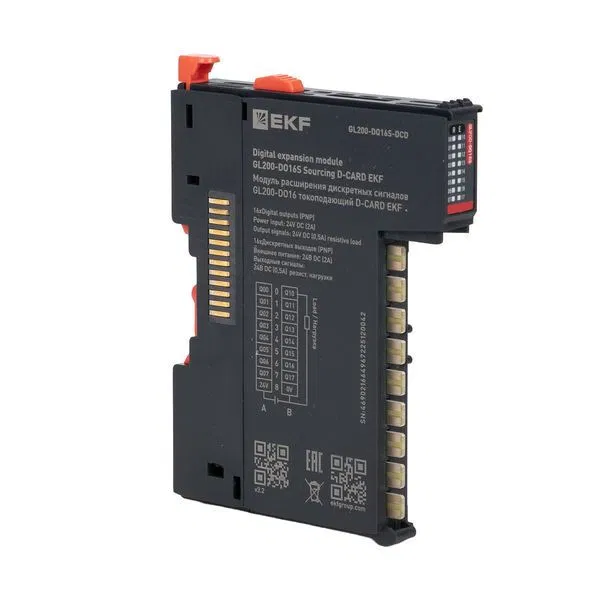

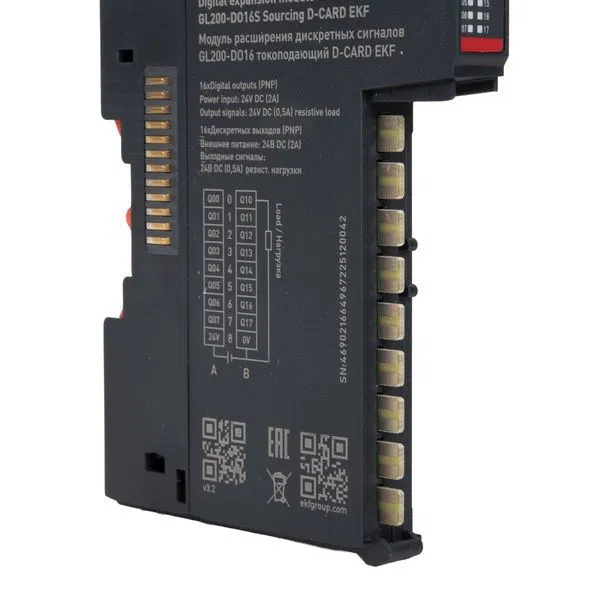

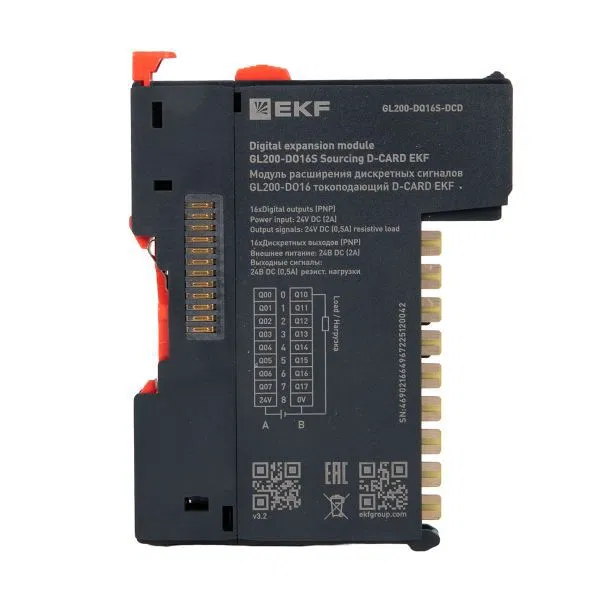

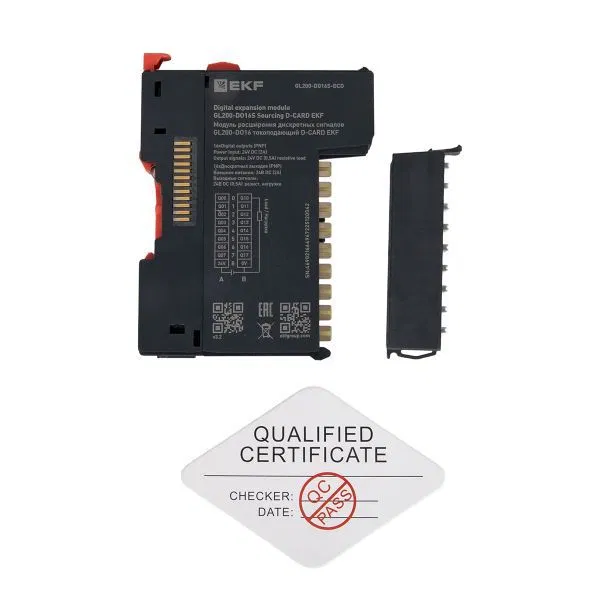

Discrete signal expansion module GL200-DO16 source type D-CARD EKF GL200-DQ16S-DCD
SKU: GL200-DQ16S-DCD
ETIM: EC001419
11,200 ₽
Get back 112 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
GL200 D-CARD local expansion modules are devices that allow increasing the number of available input and output points for D-CARD PLCs and GR200 D-CARD remote I/O stations. The product range includes a wide variety of expansion modules, including a 16-channel digital input module (source + sink), 8/16-channel digital output module (source/sink); 4/8-channel analog input module (voltage + current), 4/8-channel analog output module (voltage/current), with 16-bit resolution; temperature measurement module (RTD/thermocouple) with 24-bit resolution. A compact, convenient module is the future trend in automation. All modules support hot-swapping.
DC voltage at digital input from
20.4...28.8 В
DC voltage at digital output "Transistor" from
0...26.4 В
SIL in accordance with IEC 61508
2
Weight
0.074 кг
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Signal change delay time to
1 мс
Signal change delay time from
0...1 мс
Height
105 мм
Output current
0.5 А
Galvanic isolation
Yes
Depth
85 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Permissible output voltage at
26.4 В
Permissible output voltage from
0...26.4 В
Short-circuit protection, available outputs
Yes
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of "fast" digital outputs (of total)
0
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW serial RS-485 interfaces
0
Number of digital outputs
16 шт.
Number of digital outputs "Relay"
0
Number of "Triac" digital outputs
0
Number of digital outputs "Transistor"
16
Number of digital outputs "External SSR control"
0
Configurable digital outputs
Yes
Maximum power consumption
0.24 Вт
Minimum duration of a single input pulse
0.1 мс
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
No
TCP/IP protocol support
No
OWEN protocol support
No
Suitable for security systems
Yes
Operating temperature
55 град.C
Operating temperature from
-20...55 град.C
Input voltage current type
DC (direct)
Output voltage current type
DC (direct)
Supply voltage current type
DC (direct)
With relay output
No
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Memory type
Flash
Connection type
Spring clamp connection
Digital output type
Transistor
Current at digital output "Transistor" from
0...0.5 А
Performance level per EN ISO 13849-1
Level c
Digital output "Relay"
No
Digital output "Triac"
No
Digital output "Transistor"
Yes
Digital output "External SSR control"
No
Width
12 мм
