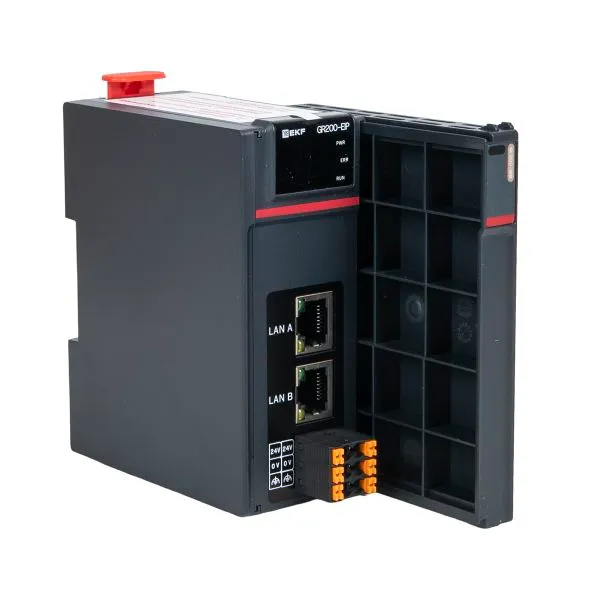

Network remote I/O expansion module EtherNET IP GR200-EIP D-CARD EKF GR200-EIP-DCD
SKU: GR200-EIP-DCD
ETIM: EC001604
36,506 ₽
Get back 365 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
D-CARD EKF network modules are designed to connect various segments of an industrial network or data bus with D-CARD controllers or third-party devices.
Network module can be used to create an additional network segment, allowing for the connection of a larger number of devices.
In critical systems requiring a high degree of availability and reliability, the module can be used to create redundant and extra communication paths: if one data transmission channel fails, data is automatically rerouted via an alternative route.
Modules can also be used for load distribution in an industrial network, balancing data flow and managing transmission priorities, which allows for optimizing overall system performance.
D-CARD devices are configured and programmed using CODESYS software (version V3.5). Integration with third-party software is possible.
1-phase
Yes
3-phase
No
1-phase hysteresis monitoring possible
Yes
1-phase undervoltage monitoring possible
Yes
3-phase hysteresis monitoring possible
No
3-phase undervoltage monitoring possible
No
Rack mounting possible
No
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Front mounting possible
No
Fieldbus connection via separate bus couplers possible
No
Height
111.5 мм
Depth
102 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Component, system accessory
No
Maximum permissible delay time
3 с
Minimum adjustable delay time
0.5 с
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
Rated control supply voltage Us DC up to
28.8 В
Rated control supply voltage Us DC from
20.4...28.8 В
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
Yes
Data Highway protocol support
No
DeviceNet protocol support
Yes
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
Yes
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
No
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
Suitable for security systems
Yes
Tripping threshold voltage to
28.8 В
Response threshold voltage from
20.4...28.8 В
Bluetooth radio standard
No
GPRS radio standard
No
GSM radio standard
No
UMTS radio standard
No
WLAN 802.11 radio standard
No
Supply voltage current type
DC (direct)
With galvanic isolation
Yes
With removable terminals, clamps
Yes
Includes DC voltage monitoring functions - hysteresis
Yes
Includes DC voltage monitoring functions - overvoltage
Yes
Includes DC voltage monitoring functions - undervoltage
Yes
IO-Link standard
Yes
IP protection rating
IP20
Width
42.4 мм
