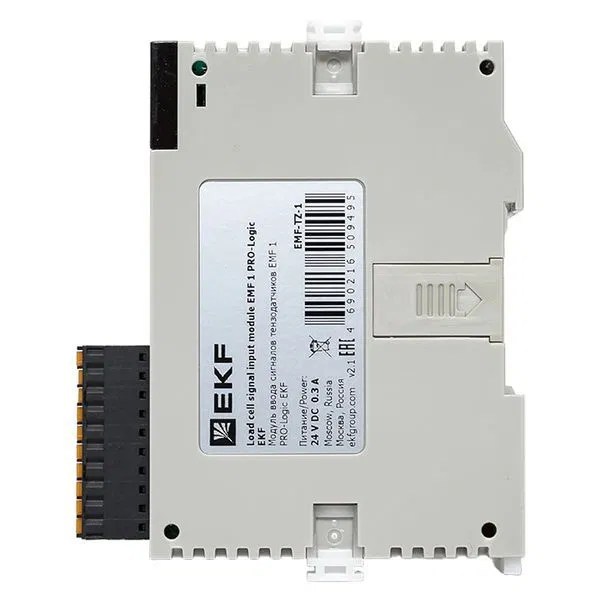

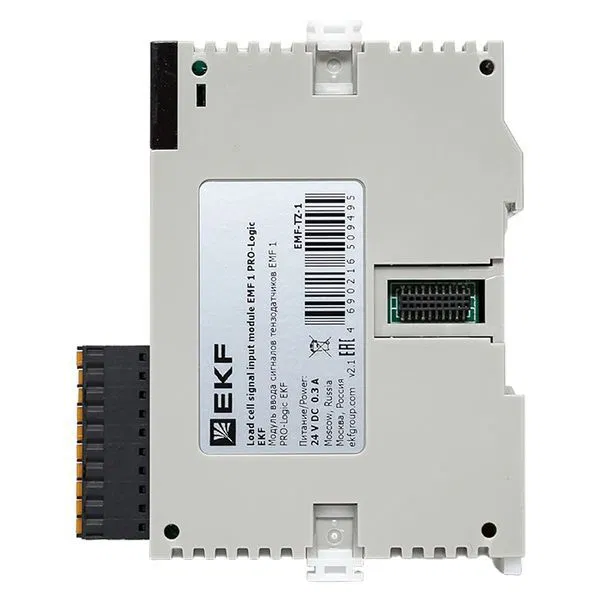

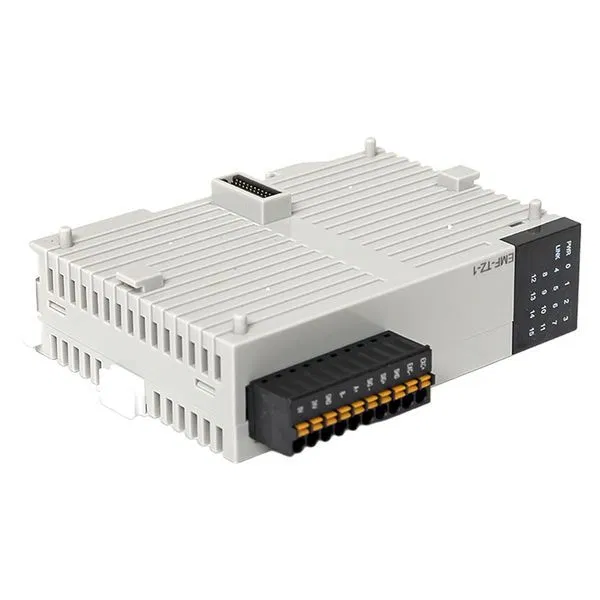

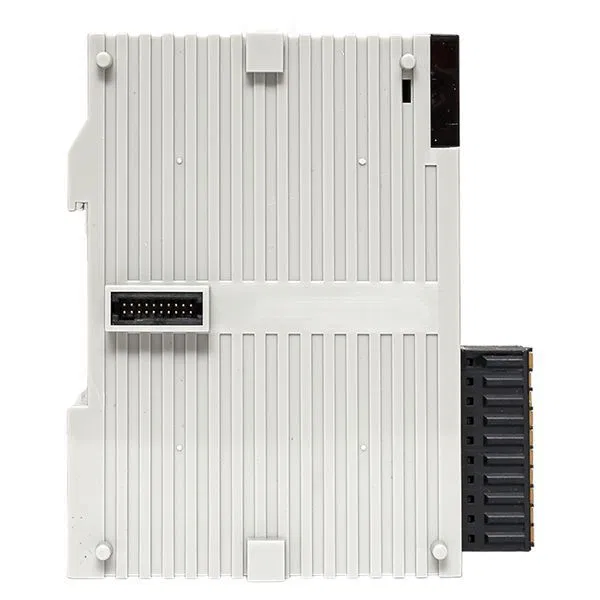

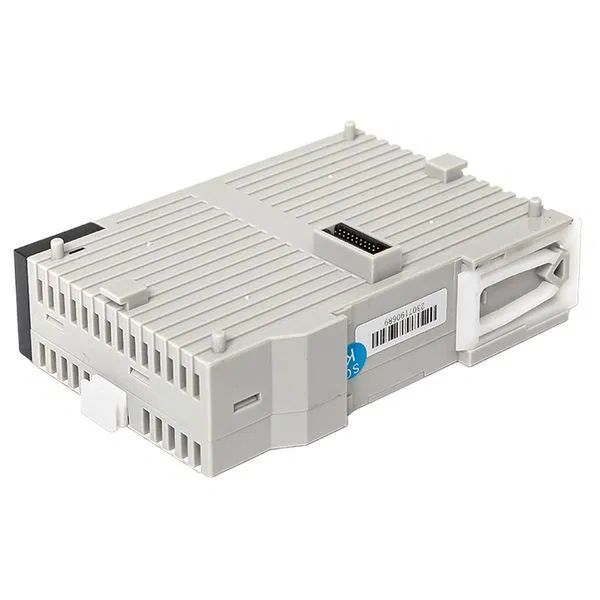

Load Cell Signal Input Module EMF 1 PRO-Logic EKF (without Calibration Certificate) EMF-TZ-1
SKU: EMF-TZ-1
ETIM: EC001420
10,023 ₽
Get back 100 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Devices designed to perform logic operations according to a given program. Capable of solving tasks of any complexity level. Used to increase energy efficiency, safety, and digitalization of enterprises in all fields of activity.
SIL in accordance with IEC 61508
2
Analogue input 0-1 V
No
Analogue input 0-10 V
No
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
No
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
No
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
Yes
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Weight
0.2 кг
Wall/surface mounting possible
No

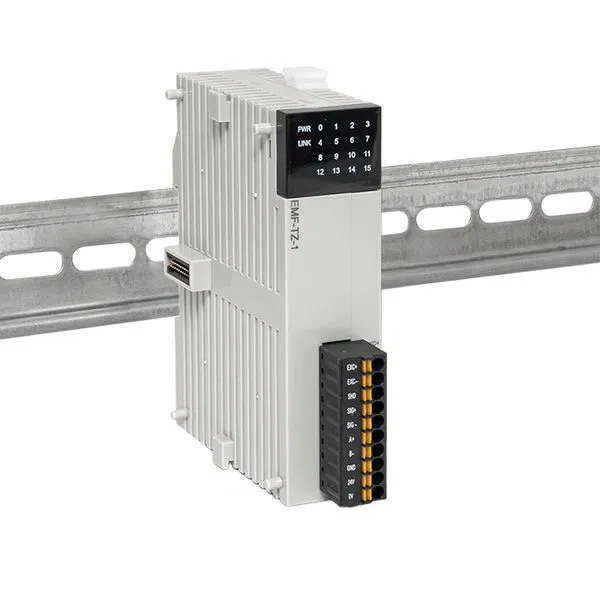

Busbar mounting possible
Yes
Input channel scan time
140 мс
Resistance input
Yes
Resistance thermometer input
No
Thermocouple input
No
Input voltage
No
Input current
No
Height
95 мм
Height
95 мм
Galvanic isolation
Yes
Depth
79 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Accuracy class
0.02 %
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW serial RS-485 interfaces
1
Number of analog inputs
1 шт.
Number of analogue outputs
0 шт.
Number of 0(4)-20 mA analogue outputs
0
Number of 0-10V analog outputs
0
Configurable analogue inputs
No
Configurable input signal
No
Maximum power consumption
4.8 Вт
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
DCON protocol support
No
MODBUS protocol support
Yes
TCP/IP protocol support
No
OWEN protocol support
No
Suitable for security systems
No
Operating temperature
55 град.C
Operating temperature from
0...55 град.C
Analogue input separation
24 бит
Supply voltage current type
DC (direct)
Certified per IEC 61508
No (without)
Ingress protection (IP) of front side
IP20
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
No
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
No
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
No
Resistance thermometer Pt1000
No
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
No
Thermocouple type J
No
Thermocouple type K
No
Thermocouple type L
No
Thermocouple type n
No
Thermocouple type r
No
Thermocouple type S
No
Type T thermocouple
No
Connection type
Spring clamp connection
Performance level per EN ISO 13849-1
Level c
Width
25 мм
