Legrand (группа IEK)

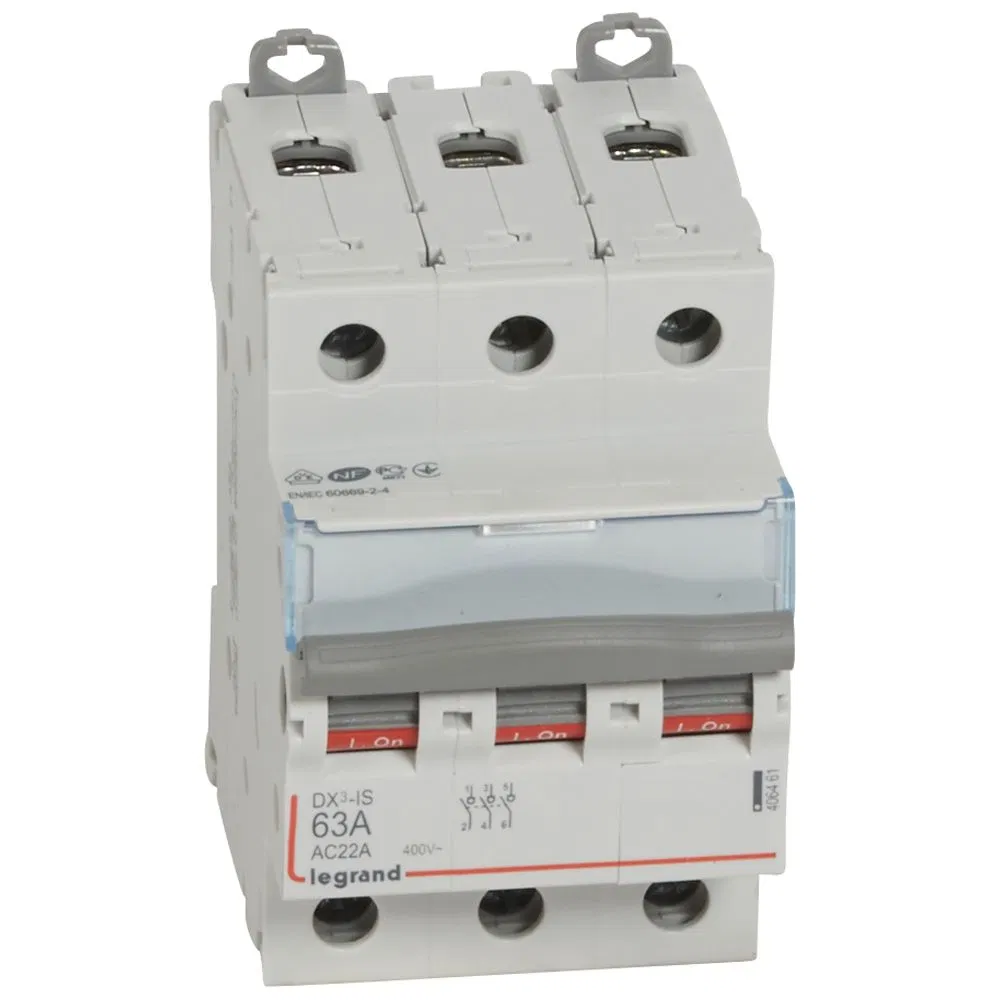

Modular load switch DX3-IS 63A 3P

SKU: 406461

ETIM: EC000216

1649 ₽

Available August 26

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
Manufacturer warehouse
	Manufacturer warehouse Available	368	шт	August 26	clarifying

Select a warehouse to order

Description Specifications Reviews

Version as switch-disconnector	Yes
Version as main switch	Yes
Number of auxiliary NO contacts	0
Number of auxiliary changeover contacts	0
Number of auxiliary break contacts	0
Number of poles	3
Switching power at 400 V	0 кВт
Design	Built-in fixed-mounted device
Maximum rated operational voltage Ue AC	400 В
Motor drive optional	No
Independent trip unit	No
Rated DC current at AC-21, 400V	0 А
Rated continuous current at AC-23, 400 V	0 А
Rated power in AC-23 operating mode, 400 V	0 кВт
Rated power at AC-3, 400 V	0 кВт
Rated voltage at	0 В
Rated voltage from	0 В
Rated short-time withstand current Icw	0 кА
Rated continuous current Iu	63 А
Reversing design	No
With interlock	Yes
Ingress protection (IP) of front side	IP20
Main electrical circuit connection type	Screw connection
Control element type	Toggle switch
Conditional rated short-circuit current Iq	4500 кА
