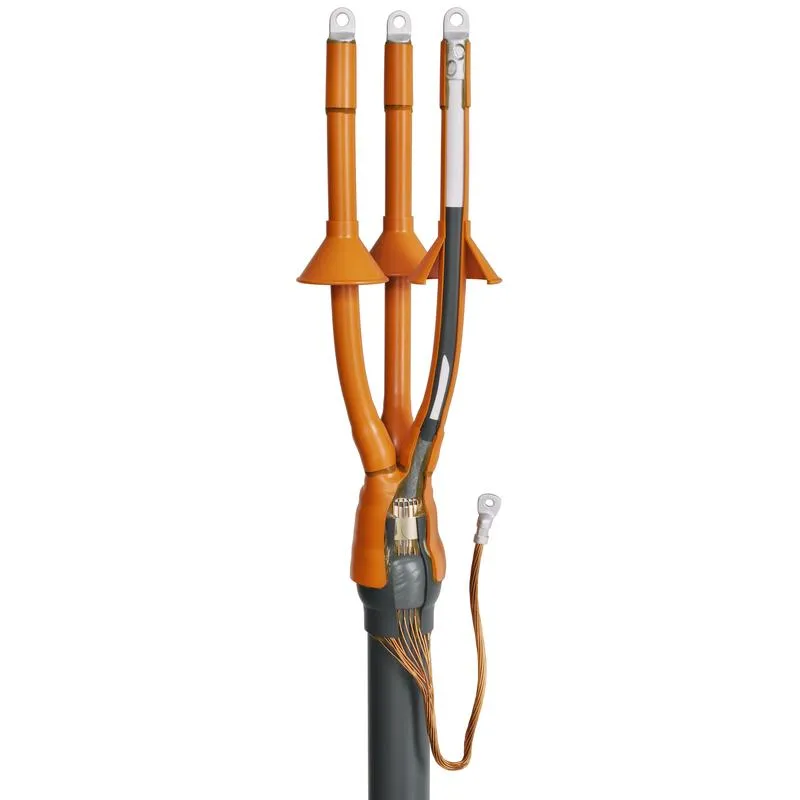

Cable end sleeve 3KVTp-10-150/240 50352 KVT

• Designed for terminating 3-core cables: • with paper oil-impregnated insulation • with steel tape armor or without armor • with a common aluminum or lead sheath • for voltages of 6 and 10 kV • Complies with GOST 34839-2022 requirements • Included in the Ministry of Industry and Trade register • Cable types for installation: AABl, (A)SBl, (A)SBG, AAG, (A)SG, AABv, (A)SBShv, AASHv, (A)AShv, AAB2lShv, (A)SB2lShv • Main heat-shrinkable elements of the sleeve: glove, core insulation tubes, end sleeves are made of track-resistant material in brick-red color • The tube material is resistant to ultraviolet rays, ensuring operational reliability in any weather and climatic conditions • The use of oil-resistant sealant with special properties ensures the sealing of the cable stripping root and contributes to the equalization of the electric field intensity • Thermoplastic adhesive applied to the inner surfaces of the waist sleeve, glove, and end sleeves ensures complete sealing of the sleeve after installation • Installation of the grounding unit is carried out by a combined method. The basic configuration includes a constant pressure spring used for fastening the grounding wire to the metal sheath. Fastening on armor tapes is carried out by soldering • When installing the grounding unit on a cable with armor made of steel or aluminum wires, it is necessary to additionally use a "KMPB grounding kit" corresponding to the selected sleeve. • The constant pressure spring ensures fast and reliable installation of the grounding wire on the metal sheath. The use of the spring eliminates the possible risk of thermal damage to the paper insulation under the aluminum sheath in case of soldering using high-melting-point solder "A" • The sleeve kit is universal and allows the use of both crimp cable terminals and bolted terminals • Installation tools: propane torch PG (KVT), set for removing bolt terminal heads and NMB-6 connectors (KVT) • All polymer compositions used for the production of KVT heat-shrinkable components are halogen-free (HF=Halogen Free) • Manufactured according to TU 3599-006-97284872-2006
