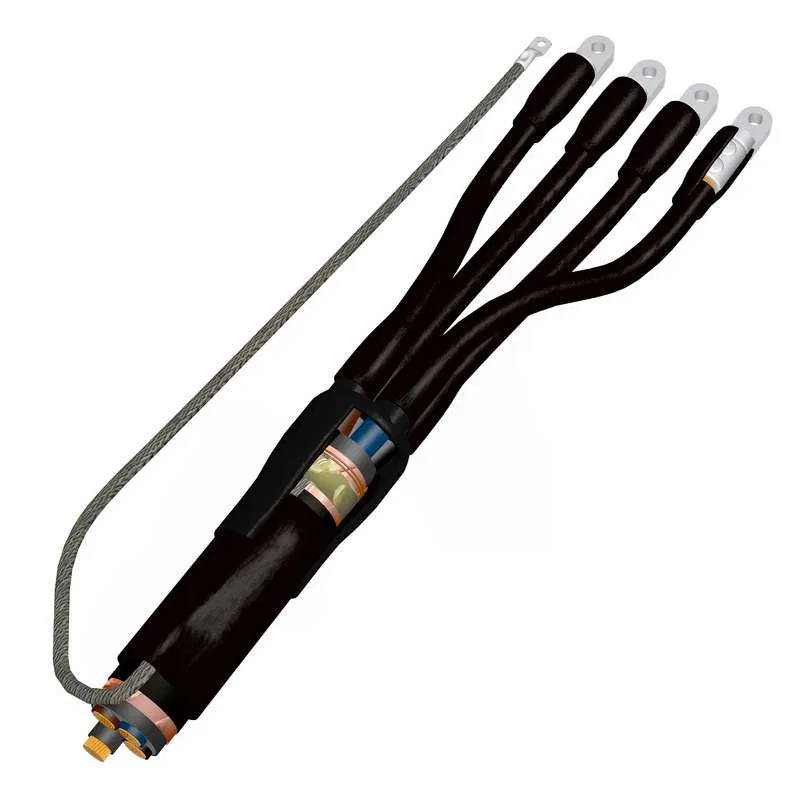

Cable Termination Kit 3PKTp Mini - 2.5/10 68061 KVT

• Designed for terminating 2, 3, 4, and 5-core cables and wires: • with plastic insulation (PVC/XLPE) • armored or non-armored (armored cable sleeve titles include "(b)") • for voltage up to 400 V • Sleeve composition: • TPI mini glove • 200 mm long core insulation heat-shrink tube • PPD spring (for armored sleeves) • grounding wire (for armored sleeves) • Complies with GOST 34839-2022 requirements • Types of mountable cables: PVS, VVG, VVGng, VVG ng-LS, NYM, NYY, AVBBShv, VBV, PVBBShP, AVBV, PVBVng-LS, VBbShng(A), PVBBShng(A) and others. • A non-soldered grounding system is used for armored cables. • Thermoplastic adhesive applied to the inner surface of the glove ensures complete sealing of the sleeve after installation • Materials used for the heat-shrink components of the sleeve are resistant to ultraviolet radiation and favorable climatic conditions • The sleeve kit is universal and allows the use of various crimp terminals, including those with insulated sleeves, as well as using the sleeve for connection to device terminals without terminals • Installation tools: high-temperature heat gun, PG propane torch, or KVT portable butane torches • All polymer compositions used for the production of KVT heat-shrink components are halogen-free (HF=Halogen Free) • Manufactured according to TU 3599-062-97284872-2014
