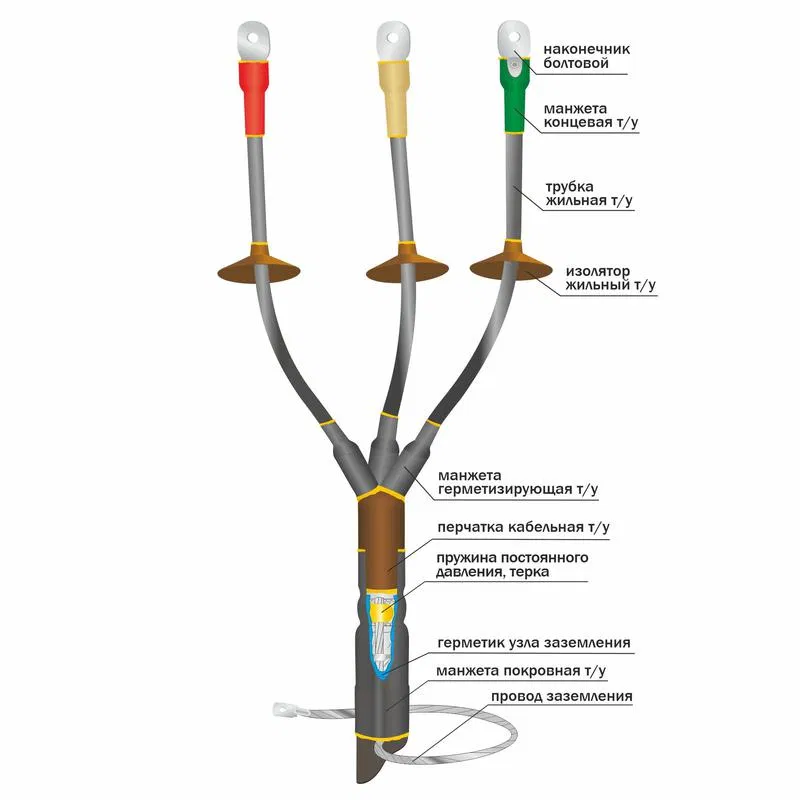

Outdoor cable termination kit 1kV 1KNTpN-3x(70-120) with bolt lugs Neva-Trans Kit 22020089

Cable termination kit 1KNTpN-3x(70-120) with bolt terminals for outdoor installation is designed for terminating 3-core power cables with cross-sections of 70, 95, 120 mm² with paper or plastic insulation, with or without armor, for voltages up to 1 kV inclusive. Installed outdoors. Operates at ambient temperatures from -50°C to +50°C and relative humidity up to 98%. Complies with GOST 34839-2022 and TU 3599-012-31930690-2016 requirements. Has passed the necessary complex of independent tests in accredited laboratories, on the basis of which certificates of conformity to GOST, TU, fire, and environmental safety requirements were issued. Mounted on the cable stripping by heat-shrinking modified polymer parts using a gas torch or a high-temperature heat gun. Universal bolt terminals with shear heads included in the cable kit are suitable for both aluminum and copper core cables. The combined grounding kit provides for attaching the grounding wire to the metal cable sheath using a constant pressure roller spring and a contact washer, and to the armor tapes by soldering. Possesses resistance to ultraviolet radiation and the effects of weather and climate factors. Combines ease of installation and high operational reliability. Service life - at least 30 years.
