Cable termination sleeve outdoor installation 10kV 3KNTp-10 (70-120) Mikhnevo 002008 Mikhnevsky ZEMI

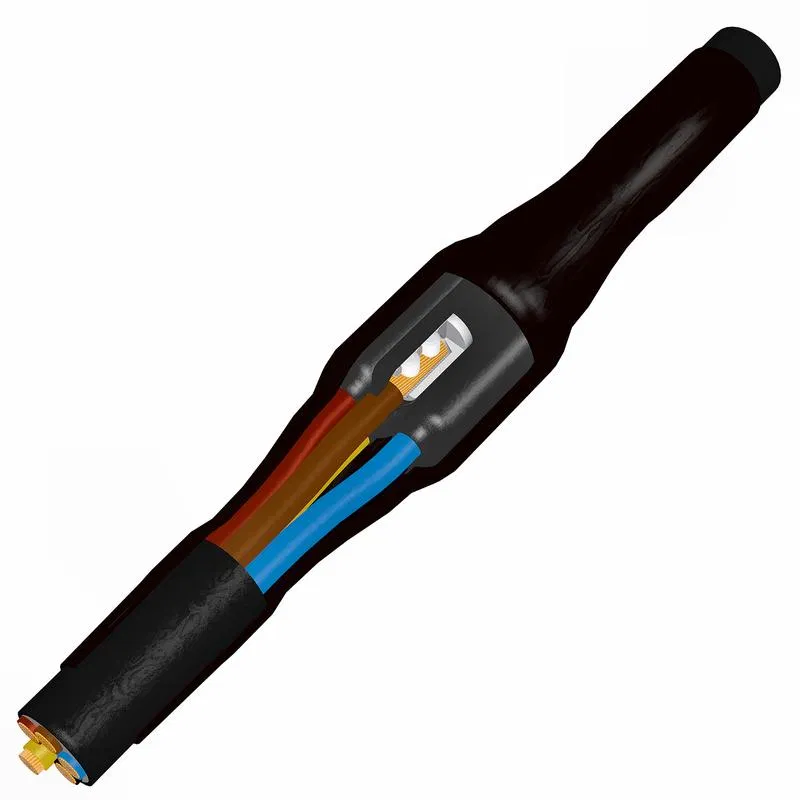

Cable sleeve 3KNTP-10 (70-120) Mikhnevo is designed for terminating three-core power cables with a voltage of 6 and 10kV with oil-impregnated insulation, unarmored or armored, in aluminum or lead sheath. The product complies with the requirements of standards and Technical Specifications, in particular: GOST 13781.0-86 and TU 3599-006-97284872-2006. The product can be installed on cables of the following types: AABl, ASB, AASHv, ASShv, SB, etc. The heat-shrinkable parts of the sleeve are made of a special material that possesses high electrical resistance. Also, the sleeve parts are resistant to ultraviolet radiation and atmospheric phenomena and ensure reliable operation in the temperature range of -50 to +50 degrees Celsius. Reliable sealing of the cable stripping root is ensured by oil-resistant sealant possessing the properties of leveling electric field intensity. Technical characteristics: • operating voltage — 10kV; • installation — outdoor; • insulation — oil-impregnated paper; • number of cable cores — 3; • core cross-section — 70-120 sq. mm;
