Cable termination sleeve indoor installation 10kV 10PKVTpBN-3x(70-120) with bolt lugs Neva-Trans Kit 22060008

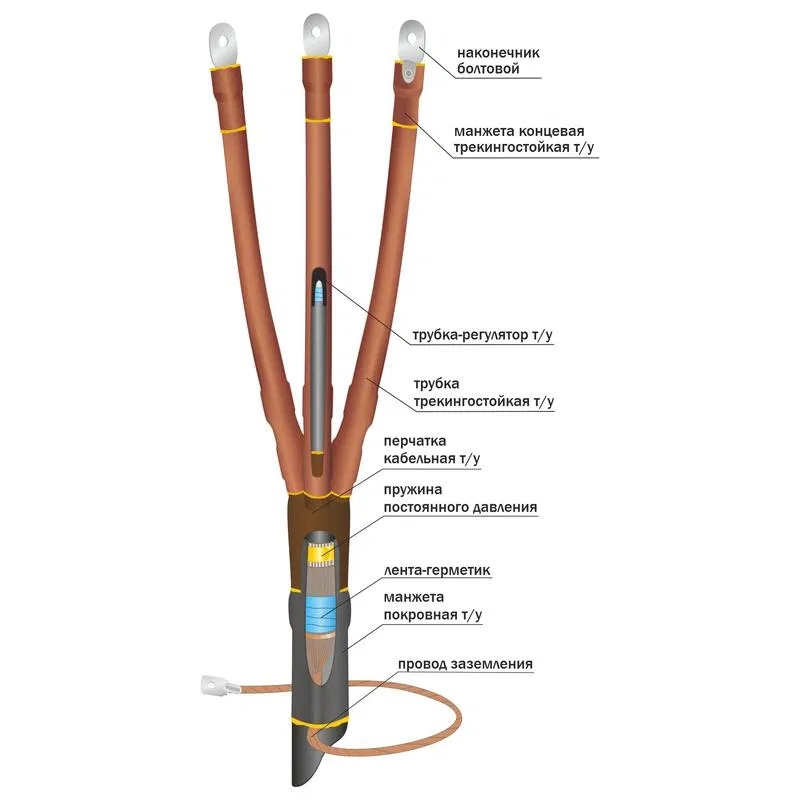

Cable termination kit model 10PKVTpBN-3x(70-120) with internal bolt terminals is designed for terminating 3-core power cables with cross-sections of 70, 95, 120 mm² with XLPE insulation, copper wire screen or tape screen, armored or unarmored, for voltages up to 10 kV inclusive. Installed indoors in all humidity categories. Operates at ambient temperatures from -50°C to +50°C. Complies with GOST 34839-2022 and TU 3599-012-31930690-2016 requirements. Passed a series of independent tests in accredited laboratories, on the basis of which certificates of conformity to GOST, TU, fire, and environmental safety requirements were issued. Mounted on the cable stripping by heat-shrinking parts made of modified polymer using a gas torch or high-temperature heat gun. Universal bolt terminals with breakaway heads included in the cable kit are suitable for cables with both aluminum and copper cores. The grounding conductor is formed from the copper wire screen of the cable, and for cables with tape screen, a special grounding kit is provided. Possesses the required level of resistance to aggressive external factors. Combines ease of installation and high operational reliability. Service life - at least 30 years.
