Cable end sleeve indoor installation 1kV 1KVTpN-3x(150-240) with bolt terminal Neva-Trans Kit 22020028

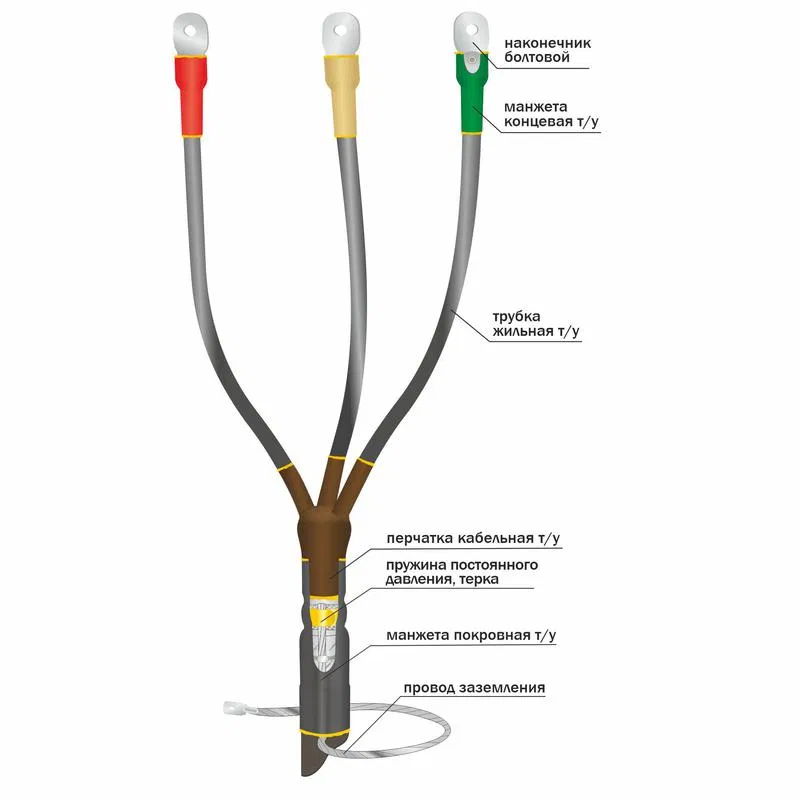

Cable end sleeve 1KVTpN-3x(150-240) with internal bolt-on terminals is designed for terminating 3-core power cables with cross-sections of 150, 185, 240 mm² with paper or plastic insulation, armored or unarmored, for voltages up to 1 kV inclusive. Installed indoors in all humidity categories. Operates at ambient temperatures from -50°C to +50°C. Complies with the requirements of GOST 34839-2022 and TU 3599-012-31930690-2016. Passed a series of independent tests in accredited laboratories, on the basis of which certificates of compliance with GOST, TU, fire, and environmental safety requirements were issued. Mounted on the cable stripping by heat-shrinking modified polymer parts using a gas torch or high-temperature heat gun. Universal bolt-on terminals with breakaway heads included in the cable sleeve kit are suitable for cables with both aluminum and copper conductors. Combined grounding kit provides for connecting the ground wire to the metal cable sheath using a constant pressure roller spring and a contact washer, and to armor tapes by soldering method. Possesses the required level of resistance to aggressive external factors. Combines ease of installation and high operational reliability. Service life - at least 30 years.
