Cable termination kit internal installation 1kV 1KVTpNNg-LS-4x(150-240) with bolt lugs Neva-Trans Kit 22040048

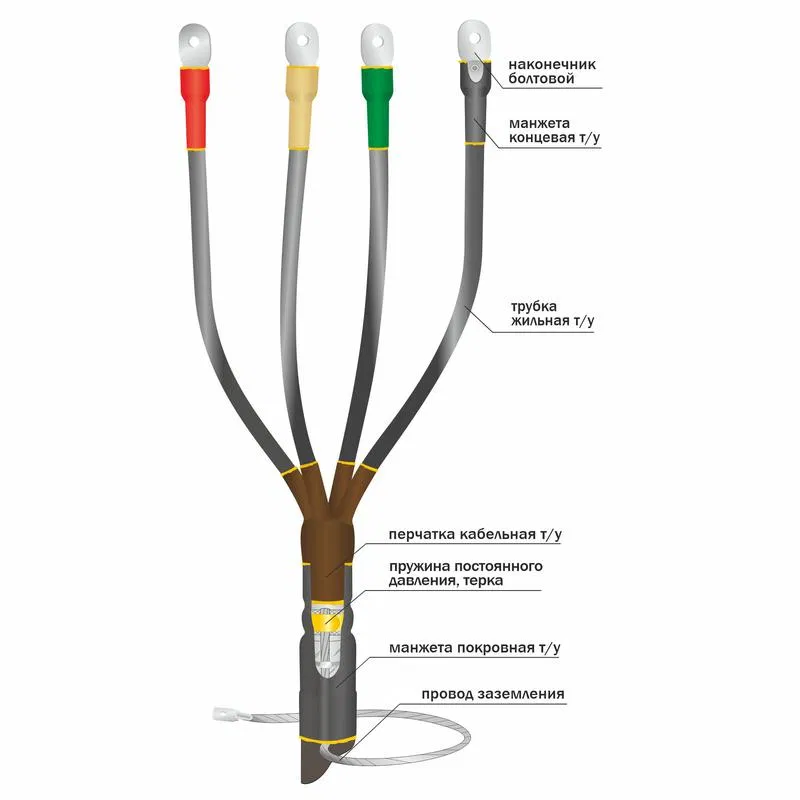

Cable termination kit 1KVTpNng-LS-4x(150-240) with bolt lugs for indoor installation is designed for terminating 4-core power cables with cross-sections of 150, 185, 240 sq.mm with paper or plastic insulation, with or without armor, for voltages up to 1 kV inclusive, with ng-LS execution. It is manufactured based on non-flammable materials with low smoke and gas emission. Installed indoors in all humidity categories. Operated at ambient temperatures from -50°C to +50°C. Complies with the requirements of GOST 34839-2022 and TU 3599-012-31930690-2016. Passed a complex of independent tests in accredited laboratories, based on which certificates of conformity to GOST, TU, fire, and environmental safety requirements were issued. Mounted on the cable stripping by heat-shrinking modified polymer parts using a gas torch or a high-temperature heat gun. Universal bolt lugs with shear heads included in the cable kit are suitable for cables with both aluminum and copper cores. The combined grounding kit provides for attaching the grounding wire to the metal cable sheath using a constant pressure roller spring and a contact washer, and to the armor tapes by soldering. Possesses the necessary level of resistance to aggressive external factors. Combines ease of installation and high operational reliability. Service life - at least 30 years.
